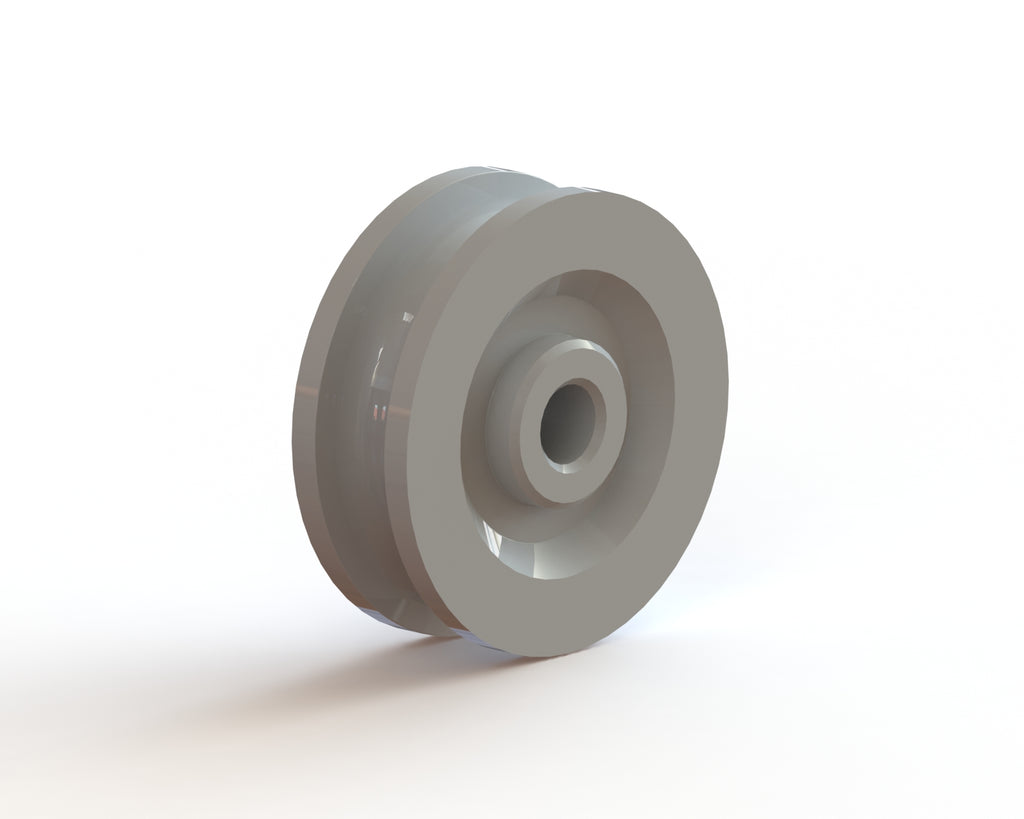

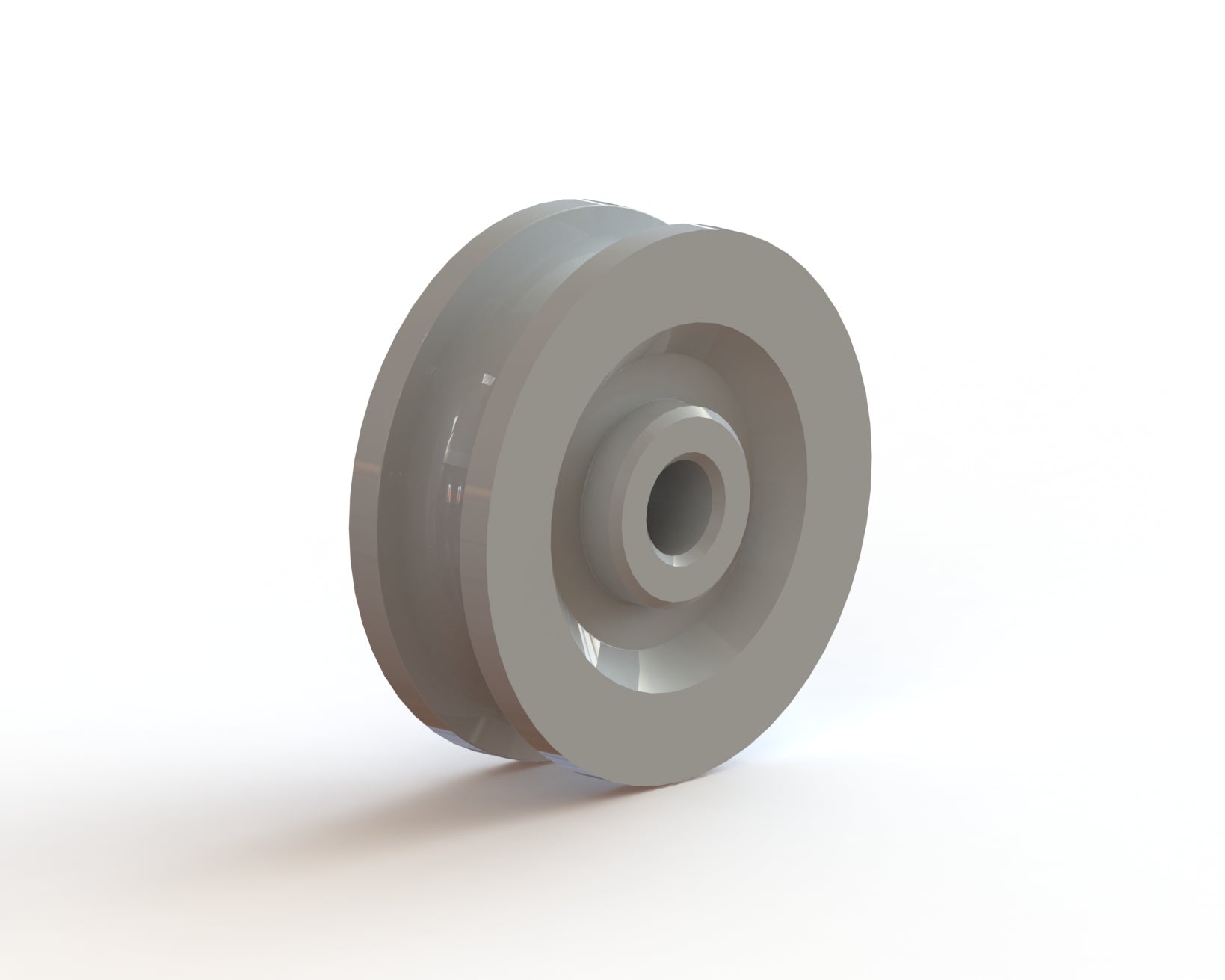

WEBI Pulley, Type ETT-190P- Polymide (PA 6 white) Pulley (ETTER)
- WEBI, Polyamide (PA 6 white)/ Nylon) pulley - Type ETT-190P
- The 190P range has capacities from 20kg - to 140kg
- Eight models, to suit 4 through to 16mm hemp or synthetic rope (see specification PDF for full details)
- For use with where diversion of rope is required.
- SWISS MADE "ETTER"
- All eight model types available from stock
Model Capacity Pulley Diameter Rope Diameter 155.9.1 20 kg 20 mm 4 mm 155.9.2 20 kg 30 mm 5 mm 155.9.3 30 kg 40 mm 8 mm 155.9.4 40 kg 50 mm 8 mm 155.9.5 60 kg 60 mm 10 mm 155.9.6 90 kg 80 mm 12 mm 155.9.7 120 kg 100 mm 16 mm 155.9.8 140 kg 120 mm 16 mm
QUESTIONS & ANSWERSAsk a Question
We live in Bolton lancs is it possible to collect
Some items are stocked at our Bury Branch so collection can be done by pre arrangement.
Can you tell me the width of the 100m pulley please part 155.9.7 Thanks
Spec details for the pulley below;
Rope Pulley Polymide PA 6 White, Plain Bearing For Hemp and Synthetic Fibre Ropes Diameter of Pulley (D): 100mm Diameter of Pulley (d) : 74mm Groove for Rope : 16mm Load Capacity : 120kg Fitting width (N) : 28mm Bore : 12.2 mm
If you can advsie your company details and email address we can send a drawing as well.
