Gebuwin

Gebuwin Metal products | Free delivery

Products available in a range of collections:

READ MORE
34 products
UK’s Leading Rigging Equipment Supplier – Established 2014 – Industry Trusted

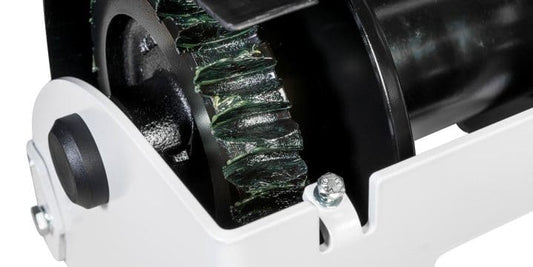

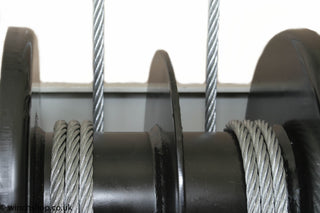

WORM GEAR WINCHES-HOISTING

The Gebuwin range of hand driven worm gear winches are known for their robust construction. The hoisting capacities are calculated according to the first cable layer on the cable drum. All of the worm gear winches are equipped with a load pressure brake. This brake holds the load at any required height during hoisting and lowering. The worm gear winches are more safe than the spur gear winches, due to the fact that 50% of the braking is done by the friction loss in the transmission. Subsequently, the load on the pressure brake is greatly reduced. Due to the higher friction loss in the transmission, the worm gear winches have a lower performance efficiency than the spur gear winches. The winches have a static safety factor of  minimum 4. The cranks can be adjusted in length and are recoil-free. All rotating parts run in maintenance free bearings. From the 2000 kg capacity winch and up, the winches are fitted with a second drive shaft, which makes it possible to work with two speeds. Most parts are made from steel and have been either painted or zinc plated. The winch with 7500 kg capacity has the worm-worm gear transmission completely protected by a sealed cover.

The coding is as follows: The first two letters refer to the type and the subsequent numbers refer to the hoisting capacity in kg’s. A few letters then follow; these refer to the surface treatment and the type of winch. The explanation for the coding is as follows:

Type coding:

WW = worm gear winches Version

Version coding:

2D = cable drum for 2 or more cables

GD = grooved cable drum

GR = grey (RAL 7035) / black (RAL 9005) painted according to DIN 12944-C1

EV = electrolyte zinc plated, min. 6 microns

EX = ATEX 114 certified for zones 2 and 22

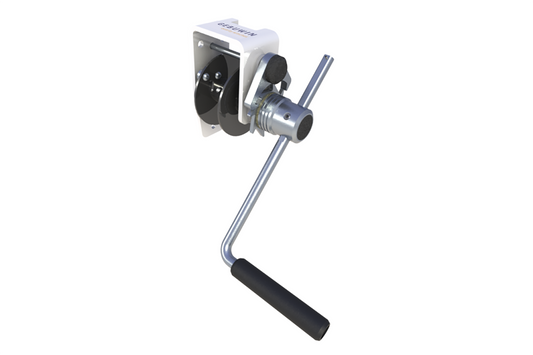

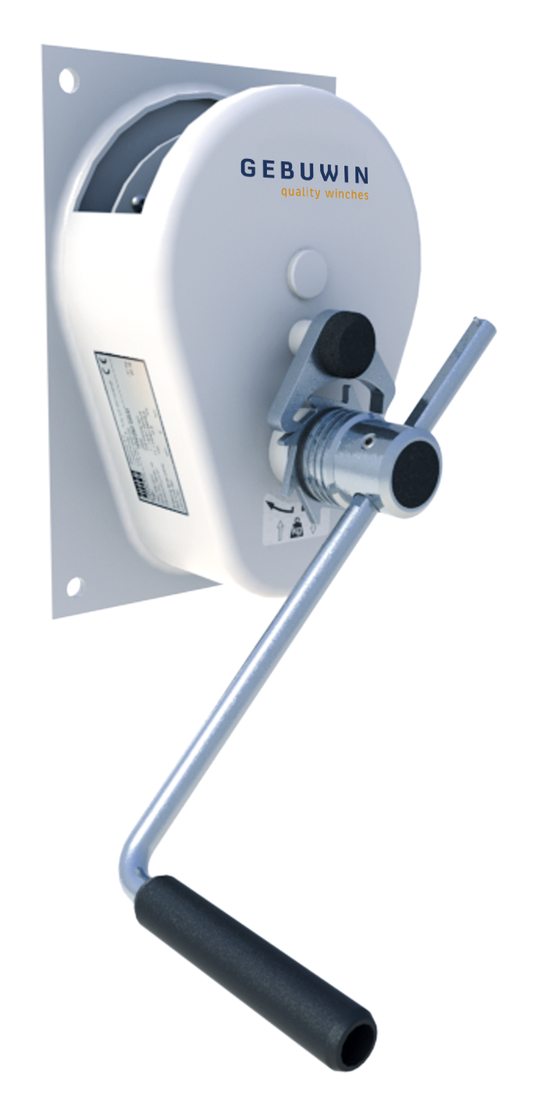

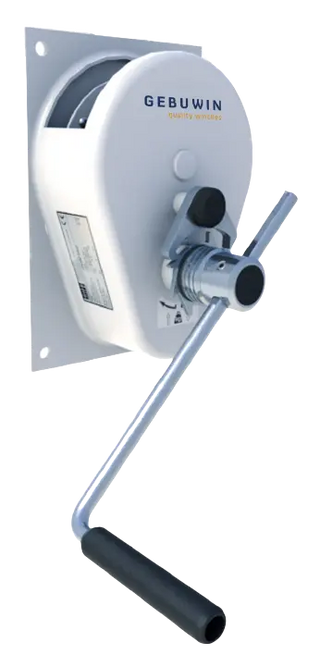

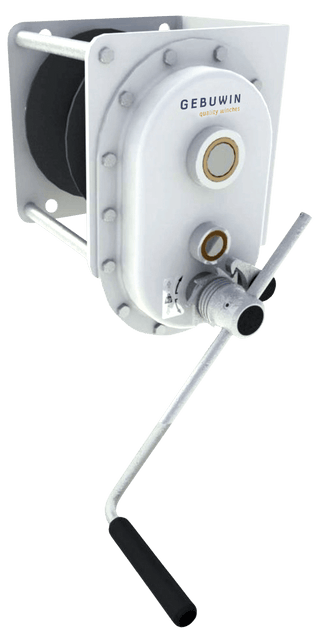

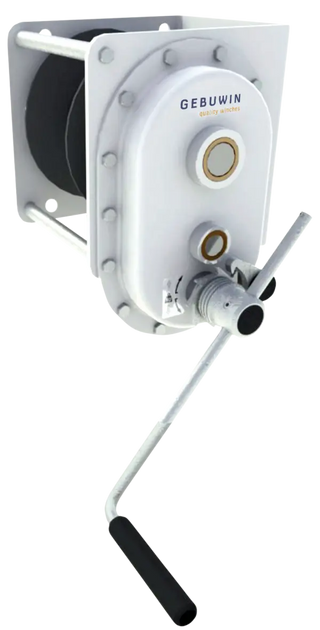

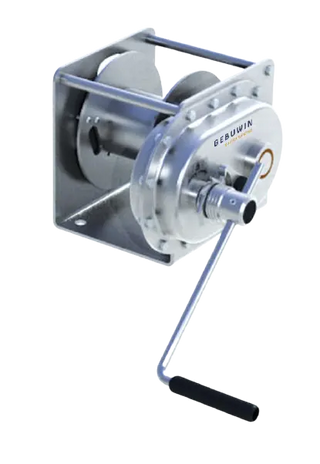

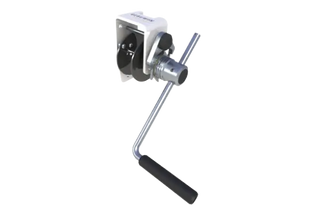

SPUR GEAR WINCHES-HOISTING

Gebuwin has two ranges of spur gear winches which are used for hoisting loads. All of the spur gear winches are equipped with a load pressure brake. This brake holds the load at any required height during hoisting and lowering. The hoisting capacities are calculated according to the first cable layer on the cable drum. Due to the minimal friction loss in the transmission, the spur gear winches have a high performance efficiency. Most parts are made from steel and have been either painted or zinc plated.

The coding is as follows: The first two letters refer to the type and the subsequent numbers refer to the hoisting capacity in kg’s. A few letters then follow; these refer to the surface treatment and the type of winch. The explanation for the coding is as follows:

Type coding:

  • HW = economy hand driven winches
  • TL = spur gear winches

Version coding:

2D = cable drum for 2 cables

GR = grey (RAL 7035) / black (RAL 9005) painted according to DIN 12944-C1

EV = electrolyte zinc plated, min. 6 microns

SS = stainless steel 14301

EX = ATEX 114 certified for zones 2 and 22 (TC only)
