GEBUWIN - TL GR SPUR GEAR PAINTED WINCHES

by Gebuwin
£168.00

SKU :156-14-1

Model

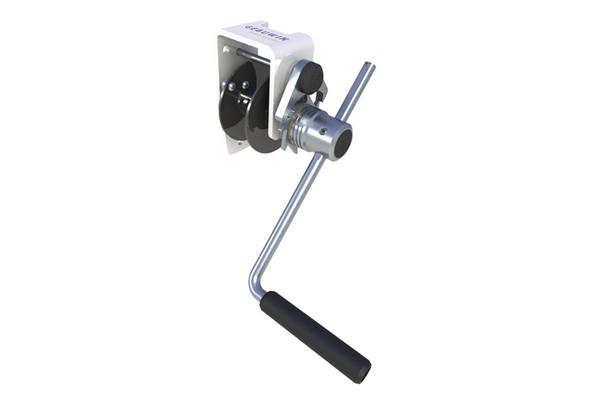

GEBUWIN - TL GR SPUR GEAR PAINTED WINCHES Ref: 156-14

This small spur gear winch is known for its high speed due to its direct drive. This fast and easy winch is a very compact lightweight of 4 kg and extremely suitable for smaller work.

The Gebuwin range of hand driven spur gear winches are known for their robust construction. The cranks can be adjusted in length and are recoil-free. All rotating parts run in maintenance free bearings. The TL1000 and TL1500 have a closed spur gear casing.

  • TL GR Single Drum Spur Gear (SG) Hand Winch (Type TL)
  • Robust and safe hoisting winch in compliance with EN13157
  • Lifting capacity 150kg to 1500kg
  • Static safety factor of 4
  • Direct transmission for high speed
  • Suitable for wall mounting
  • Cable outlet upwards
  • Spur gear operated winch with maintenance free bearings
  • Adjustable crank from 250 to 820mm with ergonomic plastic grip
  • Load Pressure brake with quiet double ratchet system for safe stable hold of the load
  • Fabricated steel frame suitable for wall mounting
  • Standard Paint thickness is 60 – 80 micron in 1 layer and in compliance with C1M – RAL 7035 (grey)
  • In compliance with EN13157, Duty class to DIN 15020

**As Standard supplied without Wire Rope - Prices available on request**

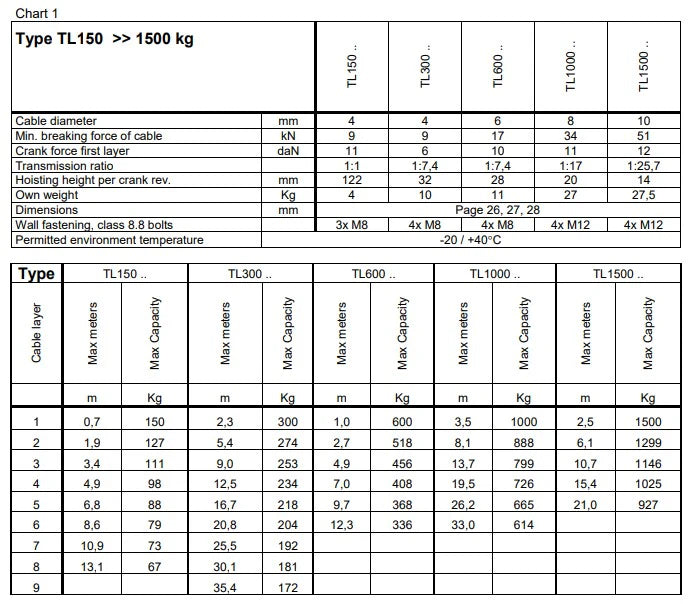

Spec

Technical info

Data Sheet

TL150 Hand Winch Dimension

TL300 and TL600 Hand Winch Dimensions

TL1000 and TL1500 Hand Winch Dimensions
