Cable Pulleys with Bracket Type KB: 150-7500kg

In stock - 12 items available
SKU: 156-20-1
Regular price £126.00 GBP inc vat

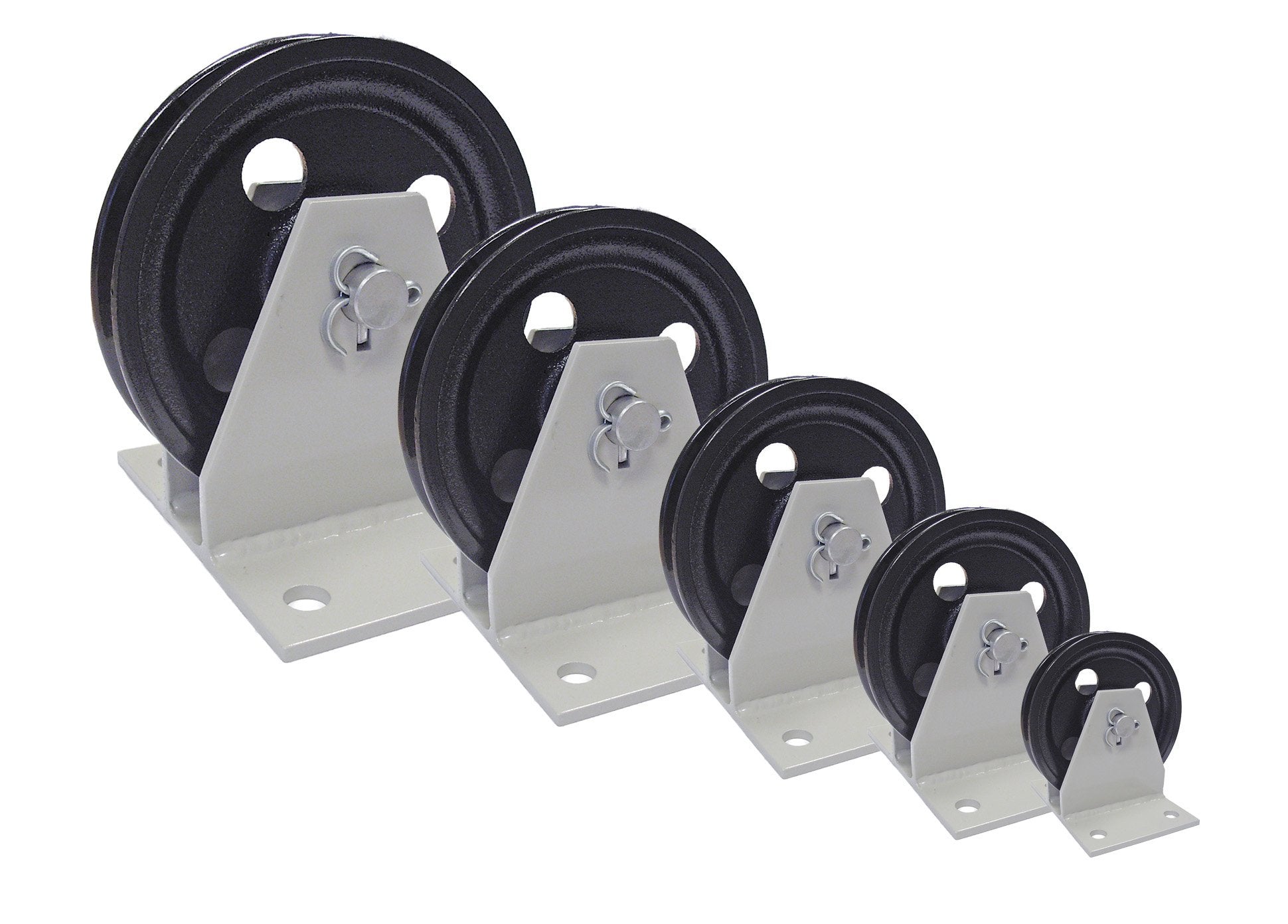

Cable Pulleys with Bracket Type KB

7 Sizes with a capacity ranging from 150kg up to 7500kg

The Gebuwin pedestals are solidly manufactured and are specially developed for hand winch applications. The cable pulleys are manufactured from cast iron and the blocks from steel. The pedestals are supplied painted in grey/ black. The cable pulleys are fitted with a sliding bearing.

Please note, if the quantity you require is more than the quantity shown on our website, please email for a quotation including lead-time from order.

The coding for the Pulleys is as follows: The first two letters refer to the type and the subsequent numbers refer to the hoisting capacity in kg’s. A few letters then follow; these refer to the surface treatment of the product. The explanation for the coding is as follows:

Type coding:
KB = Pedestal

Version coding:
GR = grey (RAL 7035) / black (RAL 9005) painted according to DIN 12944-C1
EV = electrolyte zinc plated, min. 6 microns

Quick Spec Data

SKU  156-20-1 156-20-2 156-20-3 156-20-4 156-20-5 156-20-6 156-20-7
Model KB150 KB300 KB600 KB1500 KB2000 KB4000 KB7500
Max Capacity (kg) 150 300 600 1500 2000 4000 7500
Max DIA Cable (mm) 4 4 6 10 12 16 21
DIA of Pulley Wheel (mm) 90 100 120 155 220 260 310
Bore (mm) 14.1 14.1 25.1 25.1 35.1 35.1 45.1
Weight (kg) 1 1 1.5 3 6.5 11.5 21


Gebuwin KB Pulley with Bracket Data Sheet
