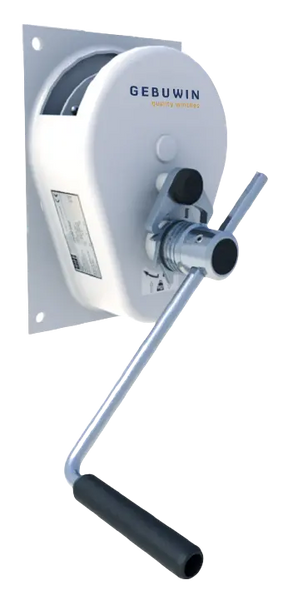

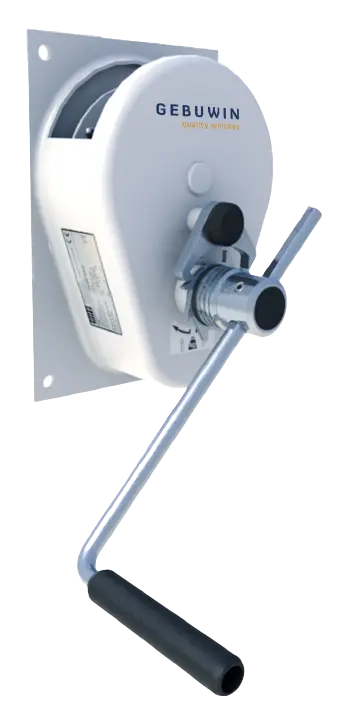

Gebuwin ATEX Spur Gear Hand Winch 600kg
This spur gear winch is very efficient and safe due to its spur gear transmission and developed design. The load-pressure brake with a double ratchet system makes it very reliable. Extra attention has also been paid to the semi-closed housing.
- robust and safe lifting winch in compliance with EN13157
- static safety factor 4
- load pressure brake with double ratchet system for safe stable hold of the load
- cable outlet upwards
- adjustable crank
- suitable for wall mounting
- 1 layer of paint
Spec
| Capacity 1st layer |
600 kg |
|---|---|
| Capacity 4th layer |
408 kg |
| Capacity top layer |
336 kg |
| Rope diameter-Ø |
6 mm |
| Rope storage 1st layer |
1 meter |
| Rope storage 4th layer |
7 meter |
| Rope storage top layer |
12,3 meter |
| Lift per crank rotation |
28 mm |
| Crank effort at full load |
10 daN |
| Weight (without rope) |
11 kg |
