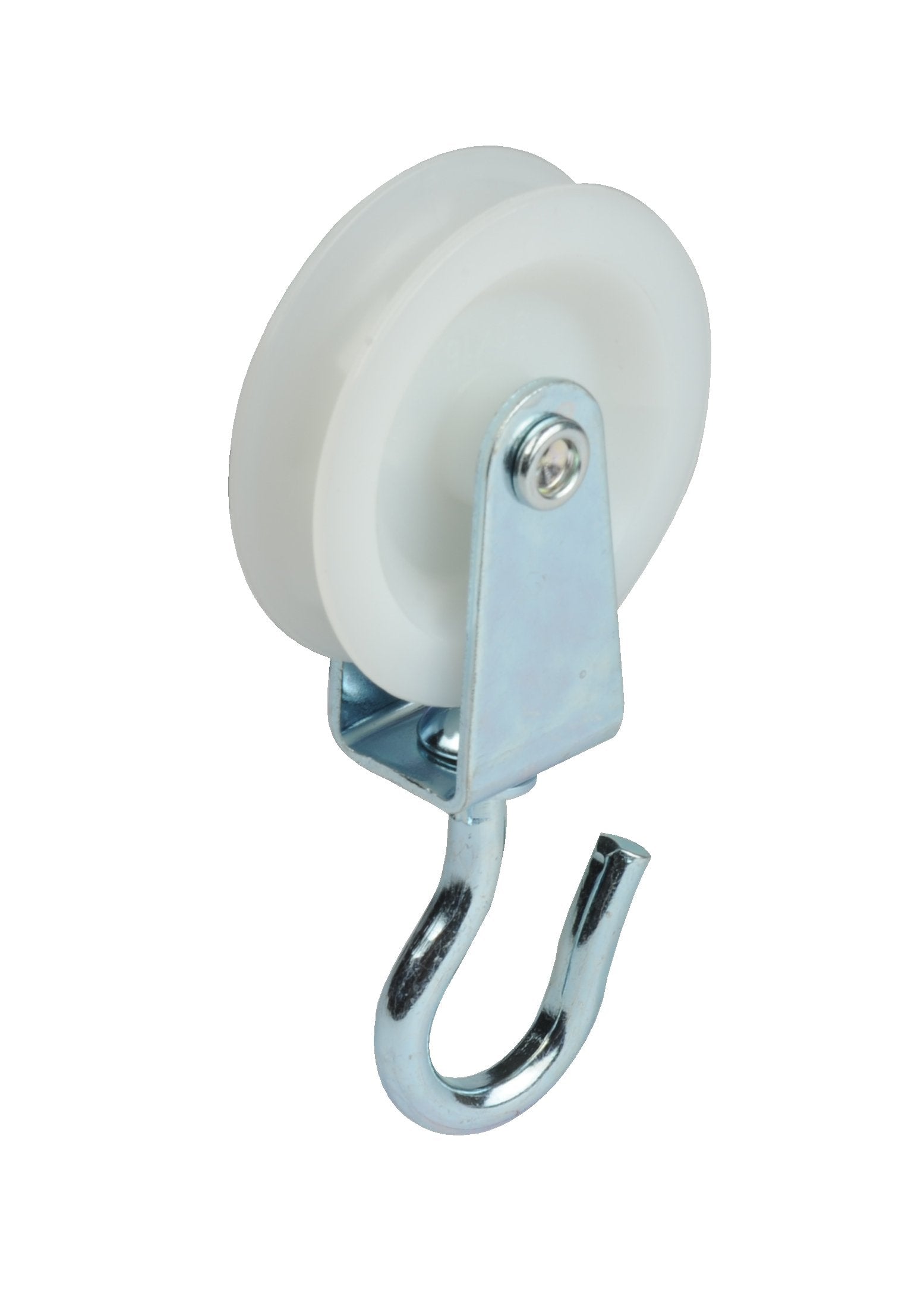

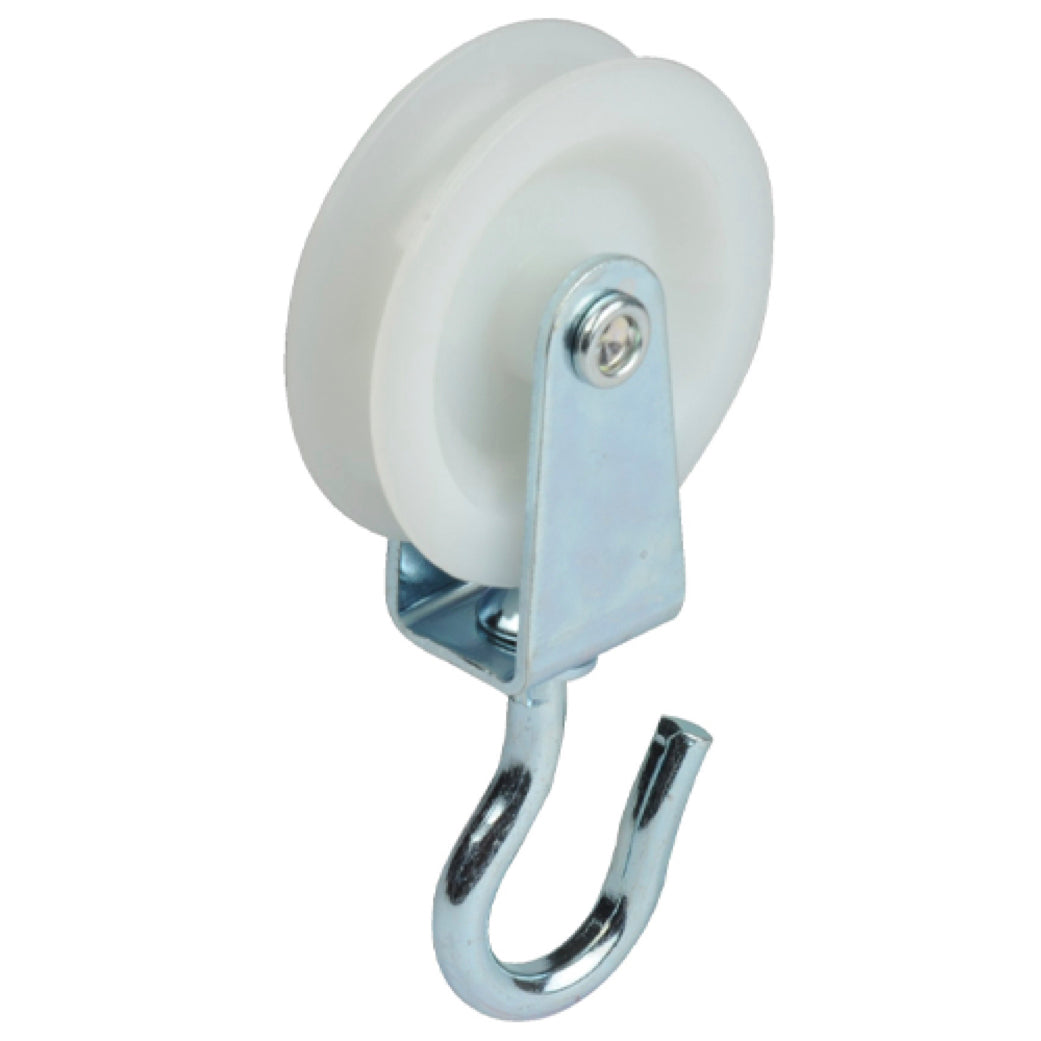

WEBI Pulley Type ETT-198P - Polymide Pulley with Rotating Steel Hook (ETTER) Ref: 155-21

WEBI Pulley Type ETT-198P - Polymide Pulley with Rotating Steel Hook (ETTER) Ref: 155-21

Downloads:

Pulley Cat 2018

Etter 198 Pulley Data Sheet

• WEBI steel or galvanised cast iron single pulley / sheave with rotating hook
• Plain bearing
• Material finish polymide pulley with galvanised steel housing, steel hook
• Capacities from 15 kg through to 70 kg
• To suit 5 mm through to 16 mm rope (see specification PDF for full details)
• For use with hemp and synthetic fibre ropes
• SWISS MANUFACTURED

• Model	Capacity	Pulley Diameter	Rope Diameter
  155.21.1	15 kg	30 mm	5 mm
  155.21.2	20 kg	40 mm	8 mm
  155.21.3	30 kg	50 mm	8 mm
  155.21.4	40 kg	60 mm	10 mm
  155.21.5	50 kg	80 mm	12 mm
  155.21.6	70 kg	100 mm	16 mm
