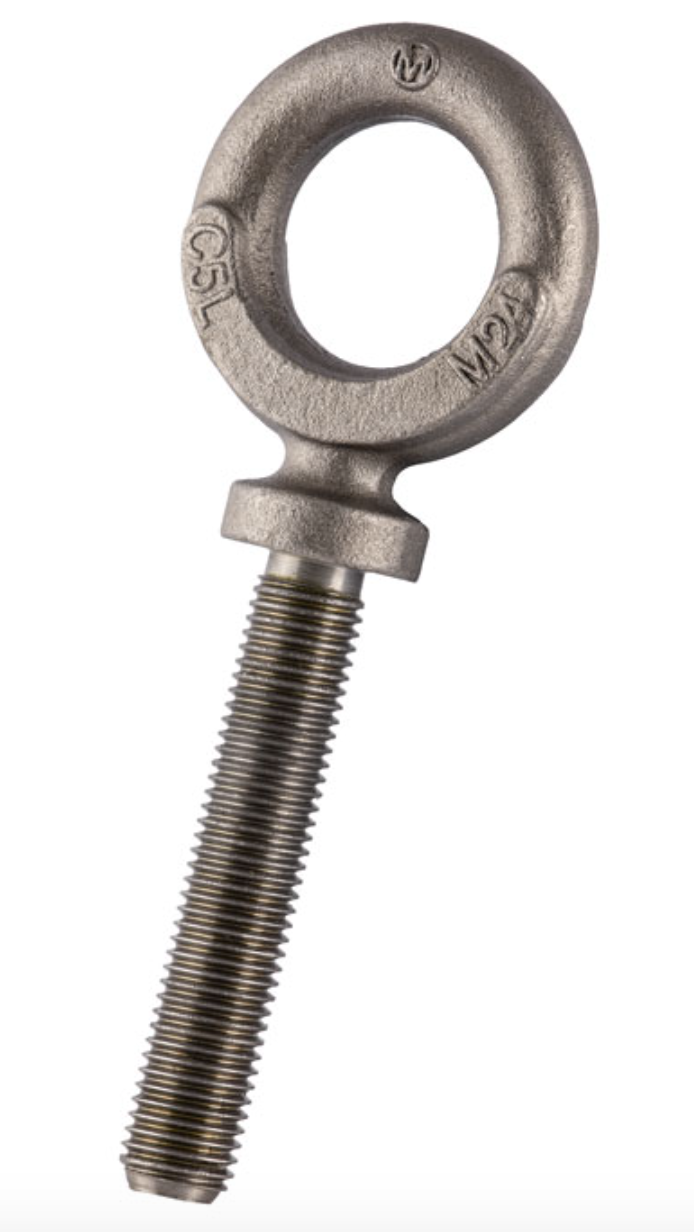

High Tensile Long Shank Dynamo Eyebolt Metric Thread

by GT
£3.59

SKU :286-626-1

Diameter/W.L.L.
High Tensile Long Shank Dynamo Eyebolt Metric Thread - EBDLSM
  • Drop forged, high tensile steel, heat treated.
  • Self colour and electro galvanised finish.
  • Meets the W.L.L. performance requirements of BS 4278.
  • Minimum breaking load is 5 times the W.L.L.
  • Marked with CE, W.L.L, size and product ID mark.
  • To be used for vertical lifting only.
  • Certification available  2.1    DoC



      Spec

      SKU Product Code W.L.L. A E F G H B D Weight
      t mm mm mm mm mm mm mm kgs
      286-626-1 EBDLSM8 0.15 8 22 9.5 27 100 19 6 0.11
      286-626-2 EBDLSM10 0.25 10 22 9.5 27 100 19 6 0.12
      286-626-3 EBDLSM12 0.32 12 29 11 35 100 25 8 0.17
      286-626-4 EBDLSM16 0.63 16 32 13 41 114 29 9.5 0.35
      286-626-5 EBDLSM20 1.25 20 41 16 54 127 35 11 0.6
      286-626-6 EBDLSM24 2 24 51 19 64 127 41 13 1.1




      Customer Reviews

      Based on 1 review
      0%
      (0)
      100%
      (1)
      0%
      (0)
      0%
      (0)
      0%
      (0)
      R
      Reg Frankum
      High Tensile Long Shank Dynamo Eyebolt

      Good quality part, reasonable price and a good service from this Company; just a shame that it is supplied bare, with no nut or washers.
