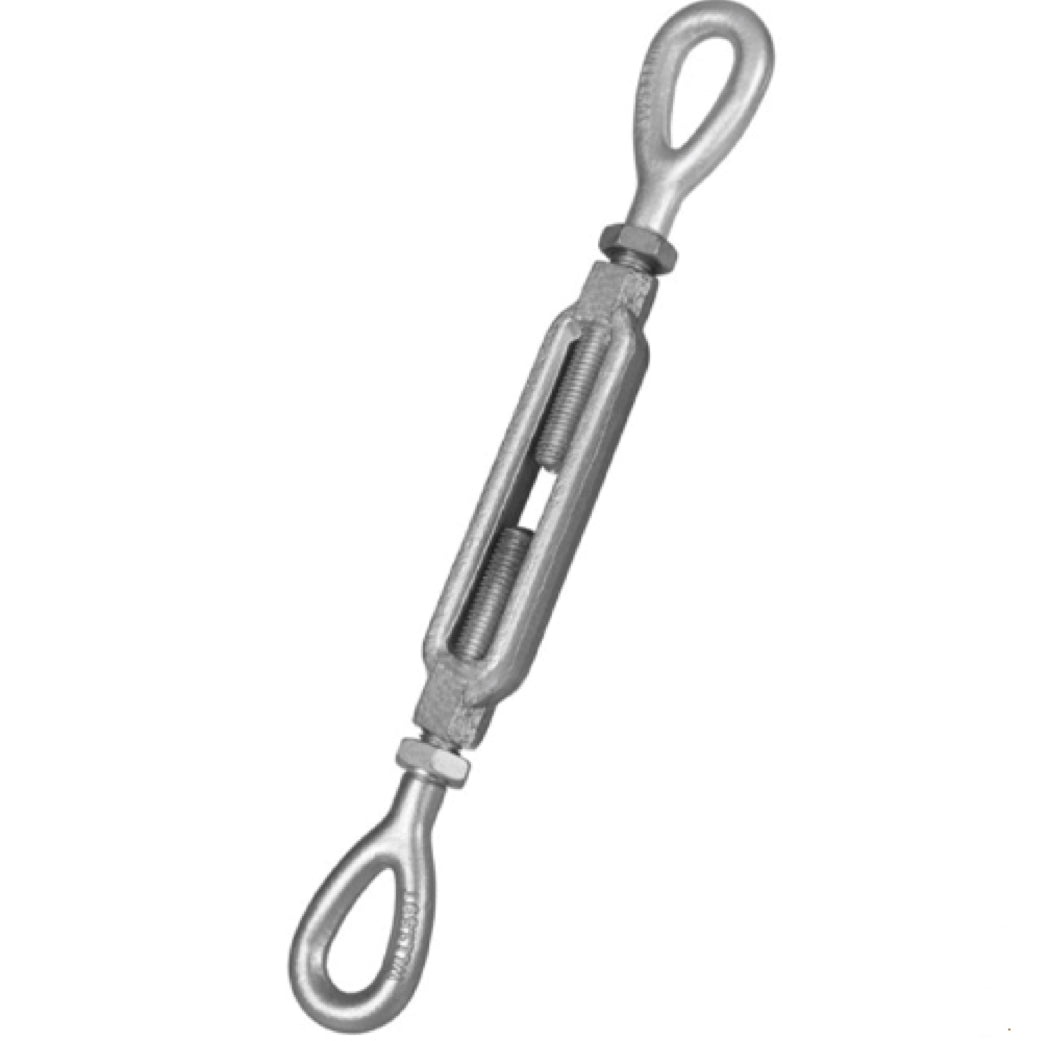

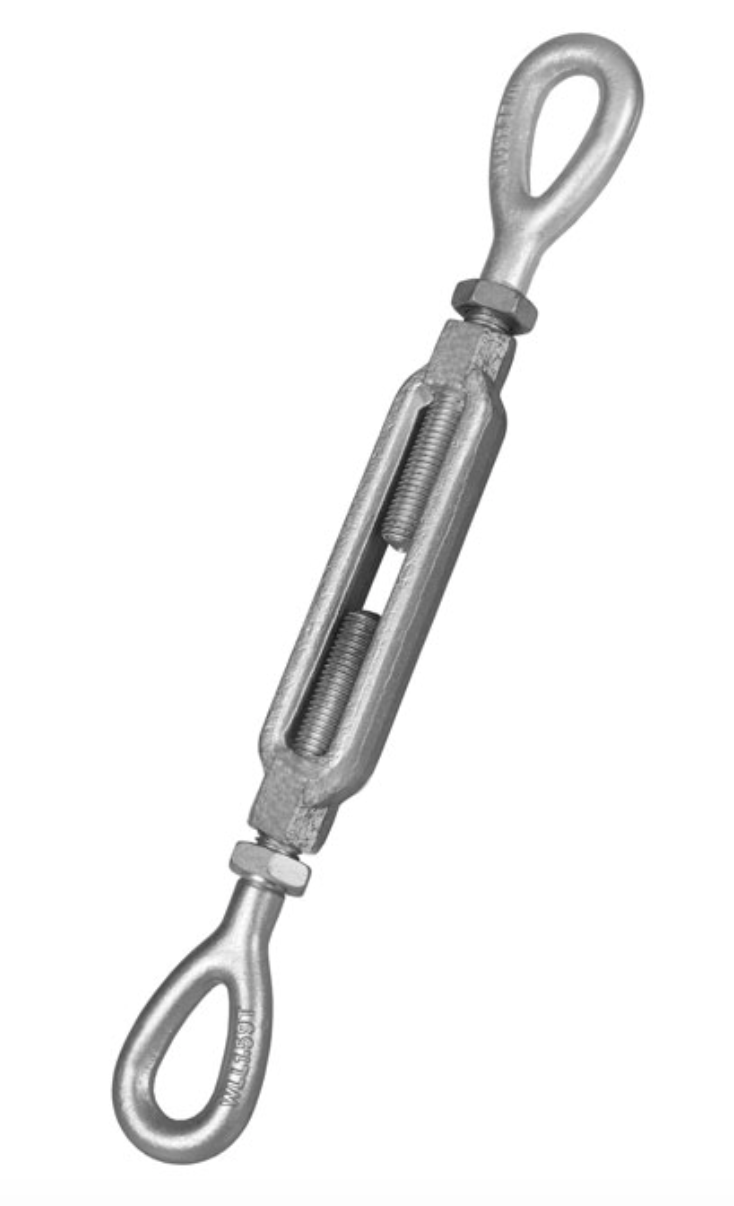

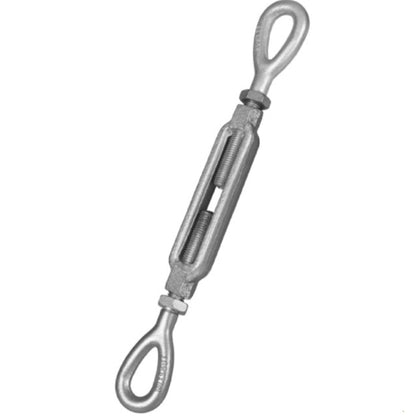

Drop Forged Turnbuckle Eye/Eye

by GT
£3.25

SKU :286-901-1

Size/Take Up/W.L.L.

Drop Forged Turnbuckle Eye/Eye - US Style - TBEE

  • Drop forged, high tensile steel, SAE 1035 or SAE 1045.
  • Hot dipped galvanised finish.
  • Meets the performance requirements of ASTM F1145-92 (formerly US Fed. Spec. FF-T-791b).
  • Temperature range -20ºC up to +200ºC.
  • Proof load tested to 2 times the W.L.L.
  • Minimum breaking load is 5 times the W.L.L.
  • UNC Threads.
  • All items available with lock nuts.
  • Marked with CE, W.L.L, manufacturers ID, size, traceability code and L/R.
  • Certification available  2.1   DoC



        Spec

        Product Code Size Take Up W.L.L. A B R S C O Weight
        inches inches t mm mm mm mm mm mm kgs
        TBEE6X4 1/4 4 0.23 120 102 20 8.5 215 307 0.14
        TBEE8X4.5 5/16 4 1/2 0.36 138 114 24 11.2 249 354 0.2
        TBEE10X6 3/8 6 0.54 180 152 28.5 13.5 308 460 0.34
        TBEE12X6 1/2 6 1 190 152 36.5 18 380 532 0.71
        TBEE12X9 1/2 9 1 267 229 36.5 18 456 685 0.85
        TBEE12X12 1/2 12 1 343 305 36.5 18 510 815 1
        TBEE12X18 1/2 18 1 495 457 36.5 18 684 1081 1.6
        TBEE16X6 5/8 6 1.59 203 152 45 22.5 398 550 1.17
        TBEE16X9 5/8 9 1.59 279 229 45 22.5 474 703 1.42
        TBEE16X12 5/8 12 1.59 355 305 45 22.5 550 855 1.67
        TBEE19X6 3/4 6 2.36 213 152 53 25.4 448 600 1.87
        TBEE19X9 3/4 9 2.36 289 229 53 25.4 524 753 2.22
        TBEE19X12 3/4 12 2.36 365 305 53 25.4 600 900 2.57
        TBEE19X18 3/4 18 2.36 517 457 53 25.4 752 1209 3.27
        TBEE22X12 7/8 12 3.27 374 304 60 32 630 934 3.77
        TBEE22X18 7/8 18 3.27 527 457 60 32 782 1239 4.7
        TBEE25X6 1 6 4.54 233 152 76 37 552 704 4.1
        TBEE25X12 1 12 4.54 385 305 76 37 704 1009 5.33
        TBEE25X18 1 18 4.54 537 457 76 37 856 1313 6.56
        TBEE25X24 1 24 4.54 690 610 76 37 1010 1620 7.83
        TBEE32X12 1 1/4 12 6.89 388 305 90 46 776 1081 9.1
        TBEE32X18 1 1/4 18 6.89 541 457 90 46 928 1385 10.94
        TBEE32X24 1 1/4 24 6.89 693 610 90 46 1080 1690 12.75
        TBEE38X12 1 1/2 12 9.71 403 305 103 53.8 838 1143 12.93
        TBEE38X18 1 1/2 18 9.71 555 457 103 53.8 990 1447 15.43
        TBEE38X24 1 1/2 24 9.71 708 610 103 53.8 1144 1754 17.97
        TBEE44X18 1 3/4 18 12.7 571 457 117 60.5 1076 1544 23.37
        TBEE44X24 1 3/4 24 12.7 724 610 117 60.5 1230 1840 26.91
        TBEE50X24 2 24 16.8 740 610 146 68 1400 2010 39.93
        TBEE63X24 2 1/2 24 27.2 795 610 165 79 1490 2100 70.96
        TBEE70X24 2 3/4 24 34 795 610 178 82.5 1562 2172 82.22
