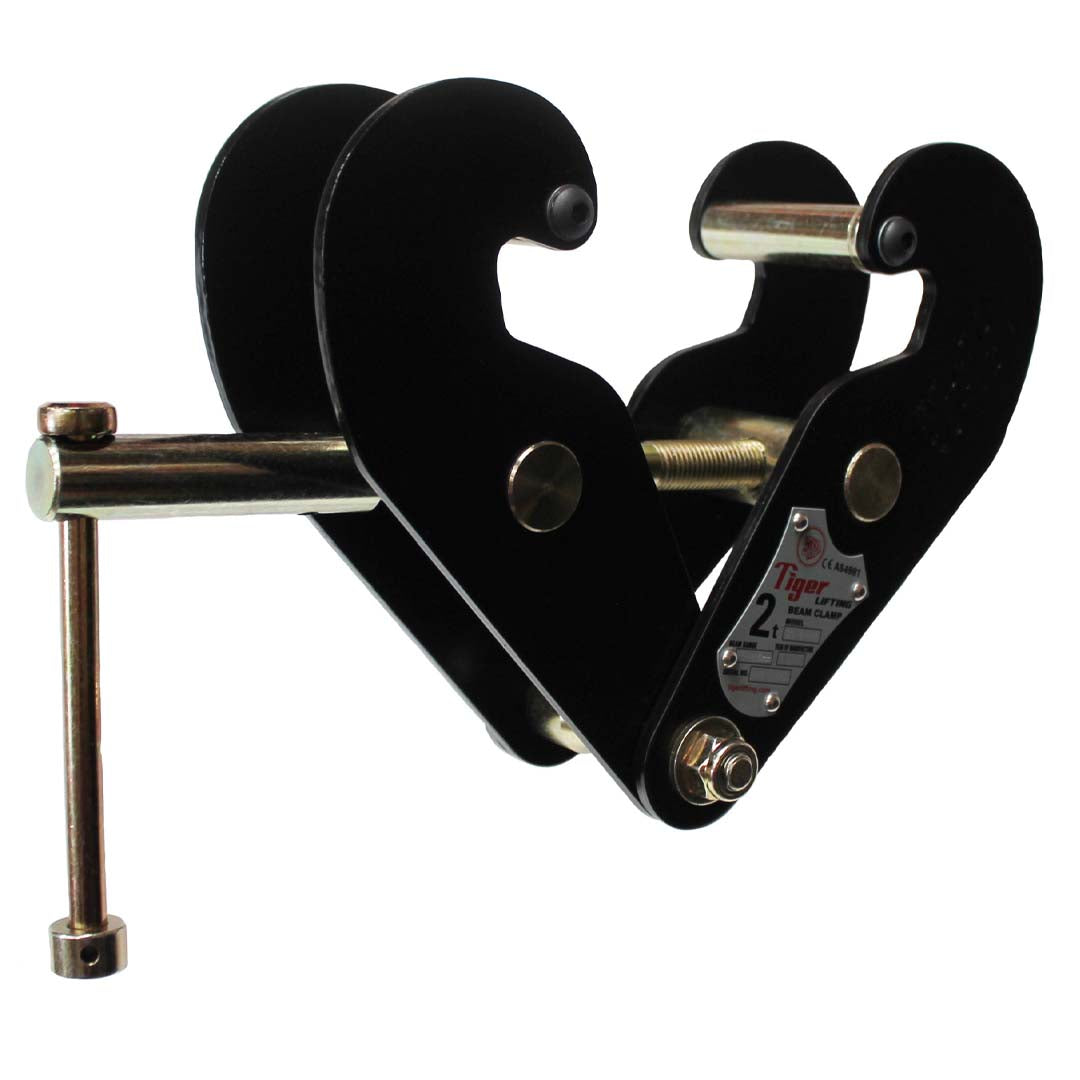

BEAM CLAMP TYPE BC WITH SUSPENSION BAR
TIGER BEAM CLAMP TYPE BC WITH SUSPENSION BAR Ref: 214-5
- Range from 1.0t to 10.0t
- Multidirectional adjusting screw spindle ensures a high clamping force to the various flange sizes within its capacity
- 5:1 Safety factor
- Quick and versatile rigging point for hoisting equipment
- Can also be used to hang sport and leisure items (internally), for example punch bags, trapeze frames, hammocks etc.
- Wide Beam flange adjustment range - Beam width range 75mm to 350mm Details on data sheet)
- 1.0t / 214-5-1 - to suit a beam flange of 75-210mm
- 2.0t / 214-5-2 - to suit a beam flange of 75-210mm
- 3.0t / 214-5-3 - to suit a beam flange of 75-305mm
- 5.0t / 214-5-4 - to suit a beam flange of 75-305mm
- 10.0t / 214-5-5 - to suit a beam flange of 120-350mm
- Optional locking device
- Low headroom because of the built in anchor point
- Operating temperature of -50° to +50°
- Please note the colour of the stock is changing from Orange to Black.
These units meet and exceed all the requirements within BS EN 13155:2003+A2:2009 and AS4991.
Certification: Each unit comes fully certified with a test certificate or an EC Declaration of Conformity stating compliance with the essential health and safety requirements of the Machinery Directive 2006/42/EC.
