YOKE Grade 100 Swivel Self Locking Ball Bearing Hook

In stock
SKU: 276-61-1
Regular price £112.20 GBP inc vat
WLL

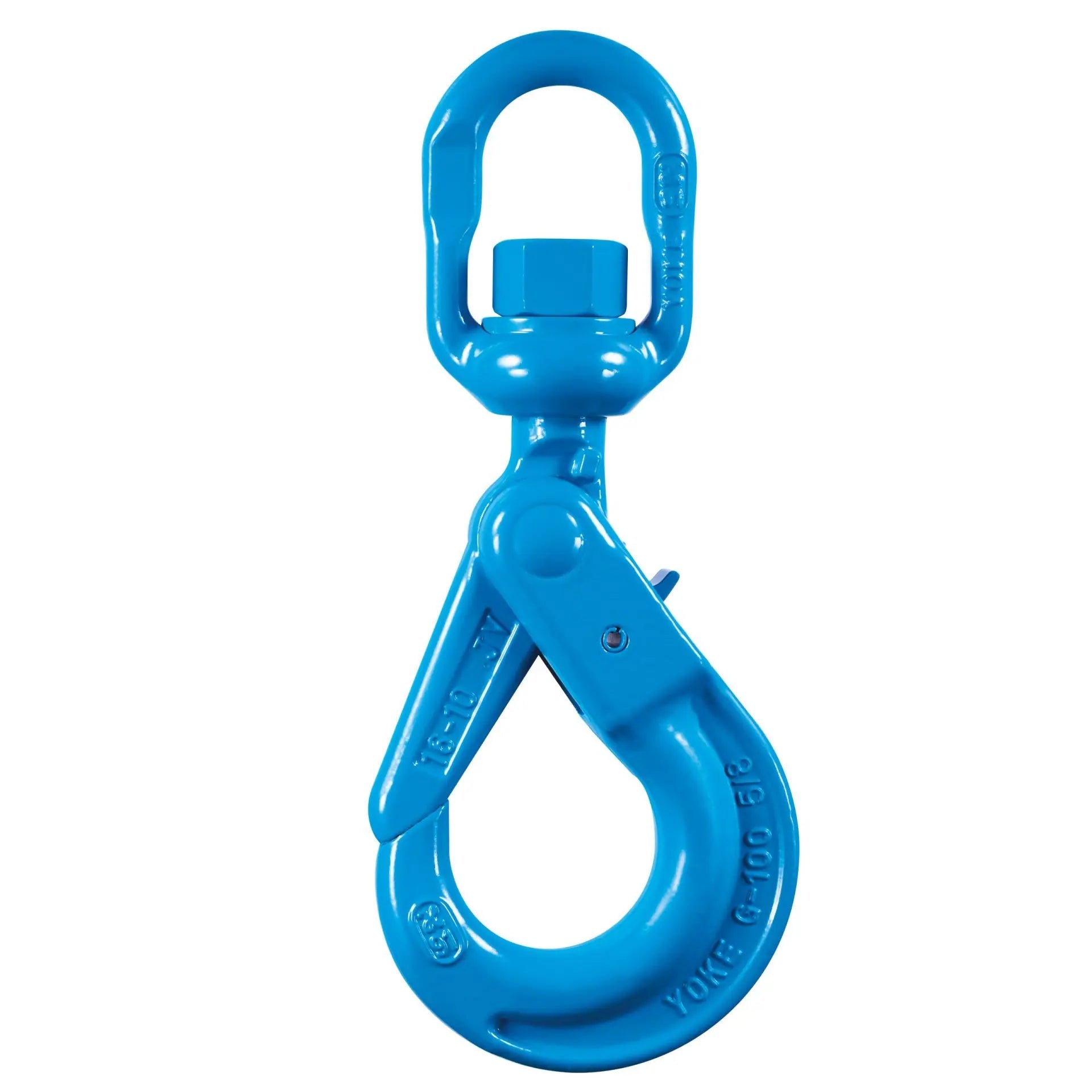

YOKE Grade 100 Swivel Self Locking Ball Bearing Hook

  • Quenched and Tempered Alloy Steel
  • At least 25% greater WLL than traditional G80 products
  • Manufactured in accordance with EN 1677- 3 and ASME B30.26, ASME B30.10, PAS1061
  • Certified by DGUV GS-OA-15-05
  • Proof Load tested at 2.5 times the WLL with certification for each batch manufactured
  • Design Factor 4:1
  • Fatigue rated to 20,000 cycles at 1.5 times the WLL
  • Tempering temperature minimum 400°C
  • Magnaflux crack detection is performed 100% on each batch

Spec

SKU Capacity (t) For Grade 100 Chain (mm) Weight (kg)
276-61-1 1.4 6 0.7
276-61-2 2.5 7, 8 1.2
276-61-3 4 10 2
276-61-4 6.7 13 4.1
276-61-5 10 16 7.2
276-61-6 16 20 13
