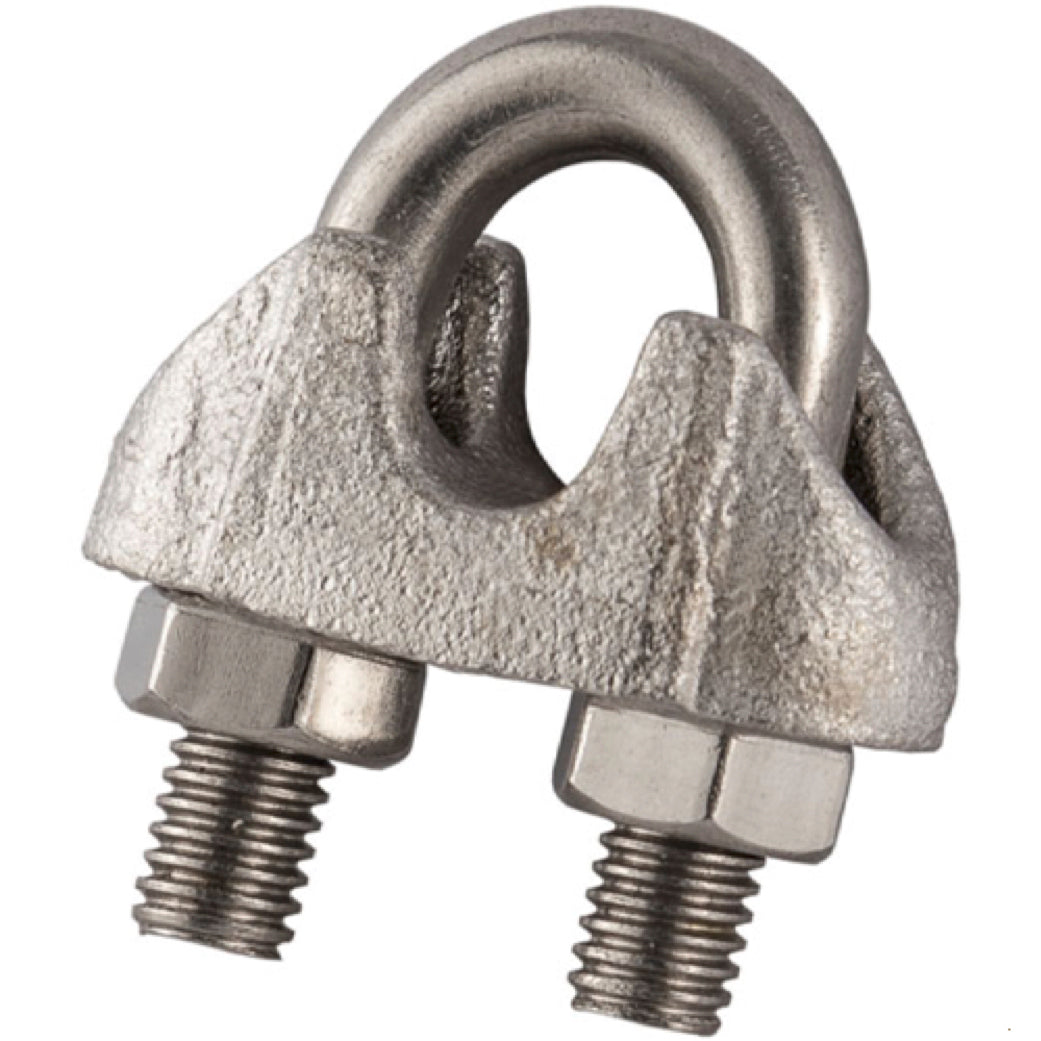

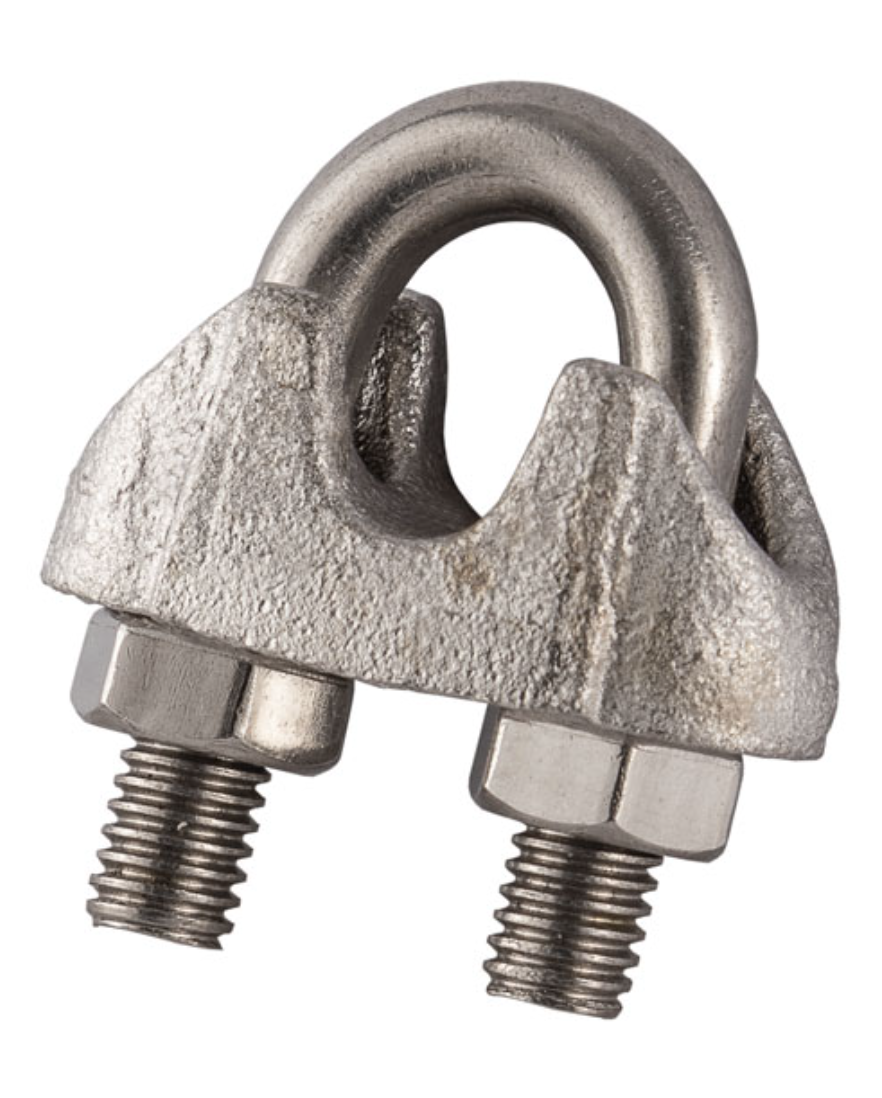

Stainless Steel Wire Rope Grip

by GT
£0.97

SKU :286-1215-1

Wire Diameter

Stainless Steel Wire Rope Grip - SSG

  • AISI 316 stainless steel.
  • Sizes generally to DIN 741.
  • Polished finish.
  • Commercial quality, untested.
  • Certification available  2.1

                          Spec

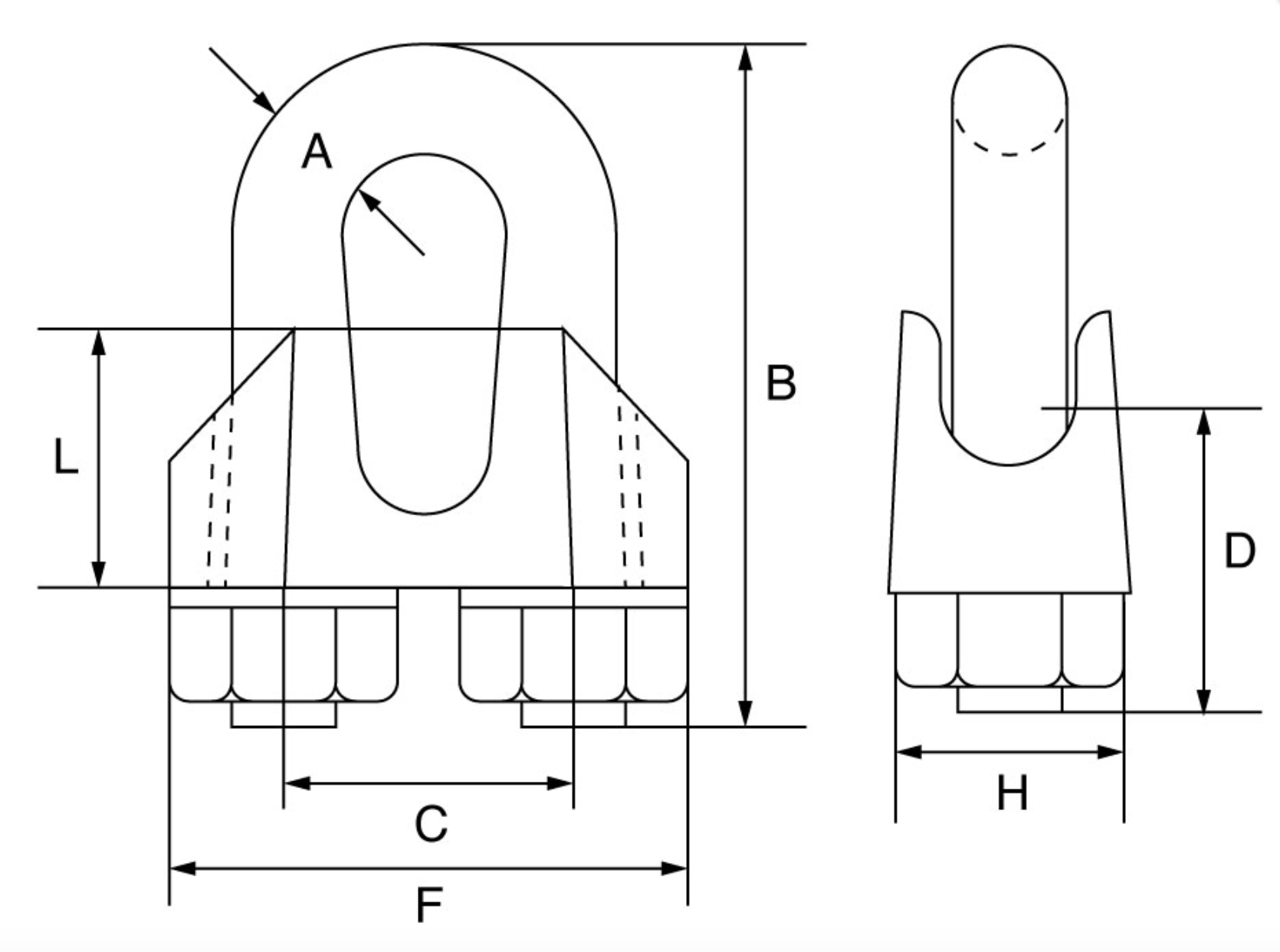

                          SKU Product Code Wire Rope Dia A B C D F H L Weight
                          mm mm mm mm mm mm mm mm kgs/100
                          286-125-1 SSG3 3 4 20 9 12 21 10 10 1.4
                          286-125-2 SSG5 5 5 24 11 13 23 11 10 1.5
                          286-125-3 SSG6.5 6.5 5 28 13 15 26 12 11 2.1
                          286-125-4 SSG8 8 6 34 16 19 30 14 15 4.1
                          286-125-5 SSG10 10 8 42 19 22 34 18 17 6.8
                          286-125-6 SSG13 13 10 55 24 30 42 23 21 13
                          286-125-7 SSG16 16 12 63 29 33 50 26 26 21
                          286-125-8 SSG19 19 12 75 32 38 54 29 30 28
                          286-125-9 SSG22 22 14 85 37 44 61 33 34 40



                          Downloads

                            Duct rod data sheetProduct data sheet
