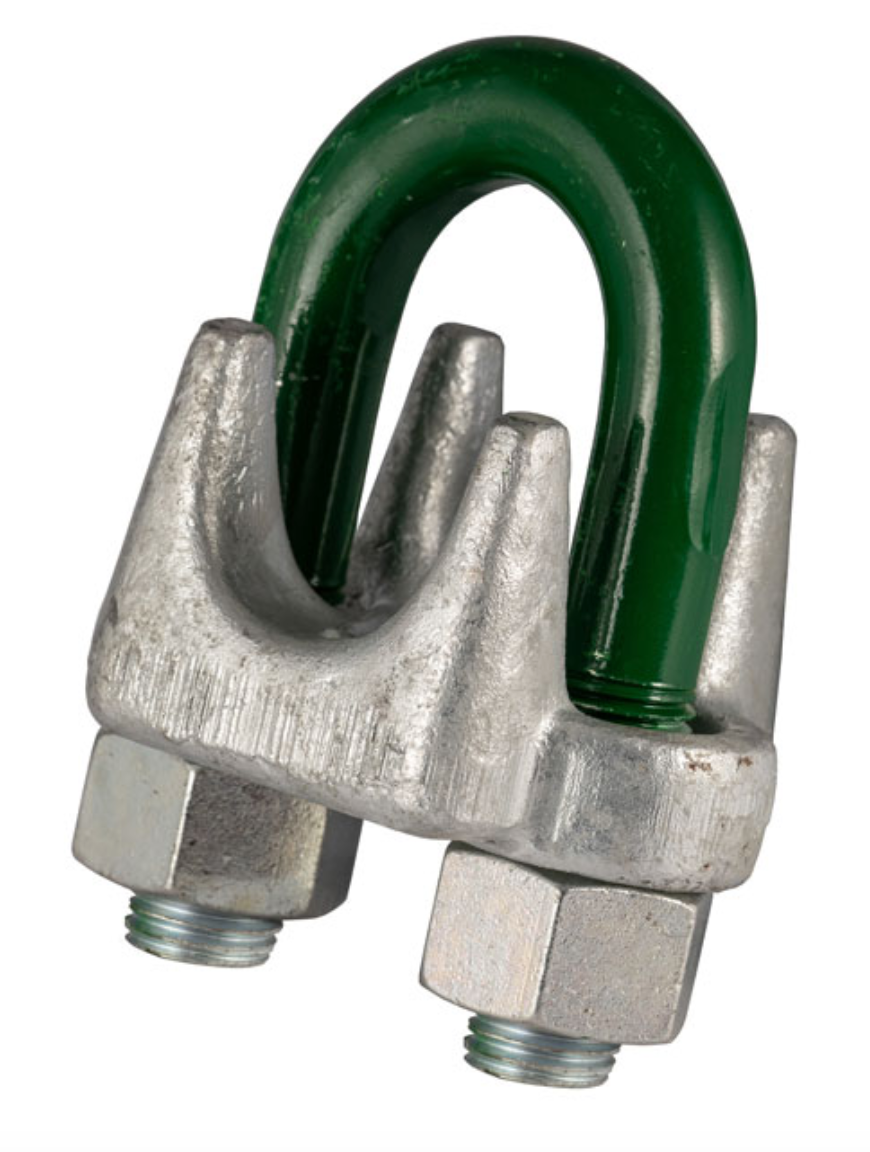

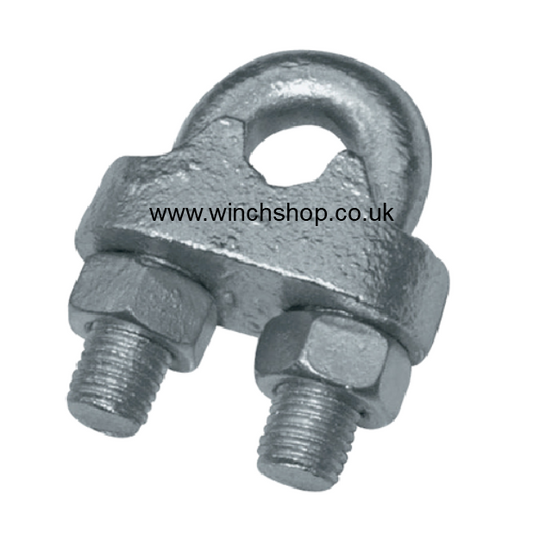

Wire Rope Grip BS EN Style - Type B

by GT
£2.05

SKU :286-801-1

Rope Diameter

Wire Rope Grip BS EN 13411 Style - Part 5 Type B

  • AISI 1015 steel or equivalent u-bolt, AISI 1035/1045 steel or equivalent grooved bridge.
  • Hot dipped galvanised bridges. Electro galvanised u-bolts and nuts, u-bolts painted.
  • Meets the performance requirements of BS EN 13411 Part 5 Type B (formerly US Fed. Spec. FF-C450D). 13mm is additional and proportional to the standard.*
  • Marked with size and manufacturers ID on the bridge.
  • Certification available DoC

Spec

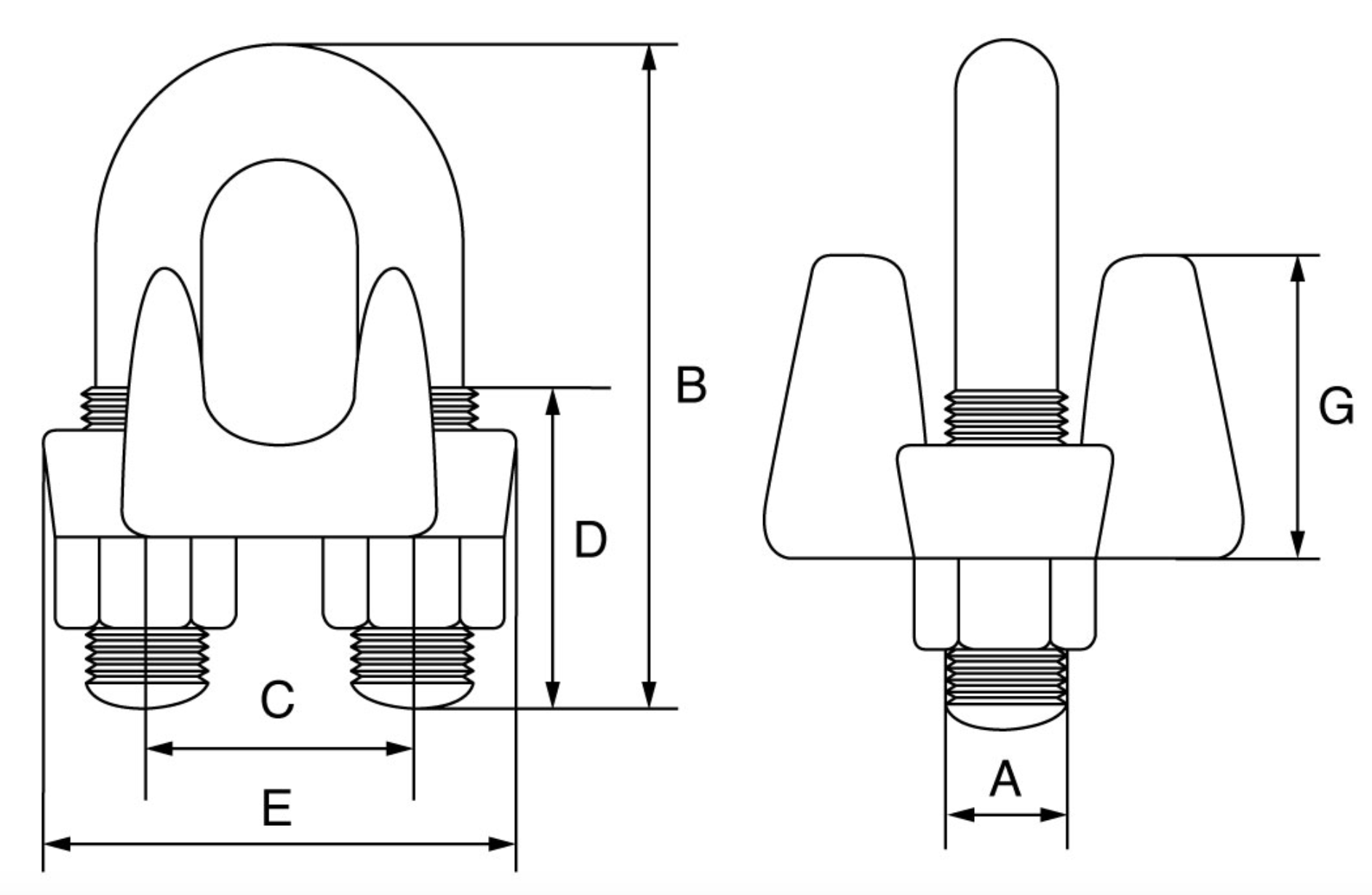

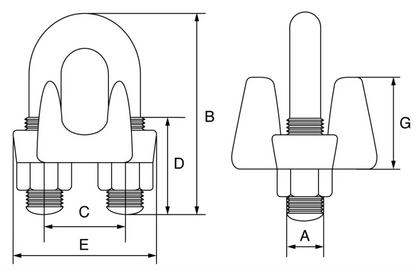

SKU Product Code Rope Dia Size of Grip A B C D E F G Weight
mm inch mm mm mm mm mm mm mm kgs/100
286-801-X WRGUS4 4 1/8 5 24 12 11 24 21 10 2
286-801-1 WRGUS5 5 3/16 6 31 15 13 29 24 13 4
286-801-2 WRGUS6 7 1/4 8 34 19 13 37 30 18 8
286-801-3 WRGUS8 8 5/16 10 45 22 19 43 33 19 14
286-801-4 WRGUS10 10 3/8 11 49 26 19 49 42 25 19
286-801-X WRGUS11 11 7/16 12 60 30 25 58 46 26 31
286-801-5 WRGUS13 13 1/2 13 61 30 25 58 48 31 34
286-801-X WRGUS15 15 9/16 14 72 33 32 63 52 31 36
286-801-6 WRGUS16 16 5/8 14 74 33 32 64 54 36 45
286-801-7 WRGUS19 20 3/4 16 86 38 37 72 57 38 68
286-801-8 WRGUS22 22 7/8 19 98 45 41 80 62 40 108
286-801-9 WRGUS25 26 1 19 108 48 46 88 67 47 113
286-801-10 WRGUS28 30 1 1/8 19 117 51 51 91 73 48 140
286-801-11 WRGUS32 34 1 1/4 22 130 59 54 105 79 56 207
286-801-12 WRGUS35 36 1 3/8 22 140 60 59 108 79 58 234
286-801-13 WRGUS38 40 1 1/2 22 147 66 60 112 85 64 266
286-801-XX WRGUS42 42 1 5/8 25 161 70 67 121 92 67 329
286-801-14 WRGUS46 46 1 3/4 29 174 78 70 134 97 76 441
286-801-15 WRGUS52 52 2 32 195 86 78 150 113 85 603
286-801-16 WRGUS58 58 2 1/4 32 213 98 81 162 116 100 707
286-801-17 WRGUS65 65 2 1/2 32 227 105 87 168 119 113 806
286-801-XX WRGUS72 72 2 3/4 32 243 112 91 174 127 124 1,000
