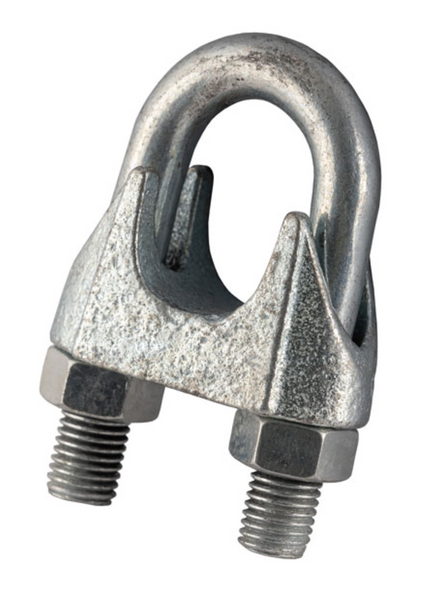

Commercial Wire Rope Grip - WRGC
- Cast steel ungrooved bridge. Mild steel u-bolt and nuts.
- Electro galvanised finish.
- Meets the performance requirements of the former standard DIN 741.
- Marked with size on bridge.
- Certification available DoC
Spec
| SKU | Product Code | Rope Dia | A | B | C | D | F | H | L | Weight |
|---|---|---|---|---|---|---|---|---|---|---|
| mm | mm | mm | mm | mm | mm | mm | mm | kgs/100 | ||
| 286-802-1 | WRGC3 | 3 | 4 | 20 | 9 | 12 | 21 | 10 | 10 | 1.4 |
| 286-802-2 | WRGC5 | 5 | 5 | 24 | 11 | 13 | 23 | 11 | 10 | 1.5 |
| 286-802-3 | WRGC6 | 6.5 | 5 | 28 | 13 | 15 | 26 | 12 | 11 | 2.1 |
| 286-802-4 | WRGC8 | 8 | 6 | 34 | 16 | 19 | 30 | 14 | 15 | 4.1 |
| 286-802-5 | WRGC10 | 10 | 8 | 42 | 19 | 22 | 34 | 18 | 17 | 6.8 |
| 286-802-6 | WRGC13 | 13 | 10 | 55 | 24 | 30 | 42 | 23 | 21 | 11 |
| 286-802-7 | WRGC16 | 16 | 12 | 63 | 29 | 33 | 50 | 26 | 26 | 21 |
| 286-802-8 | WRGC19 | 19 | 12 | 75 | 32 | 38 | 54 | 29 | 30 | 28 |
| 286-802-9 | WRGC22 | 22 | 14 | 85 | 37 | 44 | 61 | 33 | 34 | 40 |
| 286-802-10 | WRGC26 | 26 | 14 | 95 | 41 | 45 | 65 | 35 | 37 | 44 |
| 286-802-11 | WRGC30 | 30 | 16 | 110 | 48 | 50 | 74 | 37 | 43 | 60 |
| 286-802-12 | WRGC34 | 34 | 16 | 120 | 52 | 55 | 80 | 42 | 50 | 85 |
| 286-802-13 | WRGC40 | 40 | 16 | 140 | 58 | 60 | 88 | 45 | 55 | 104 |
