Wire Rope Grip BS EN Style - Type A

by GT
£0.30

SKU :286-800-1

Rope Diameter

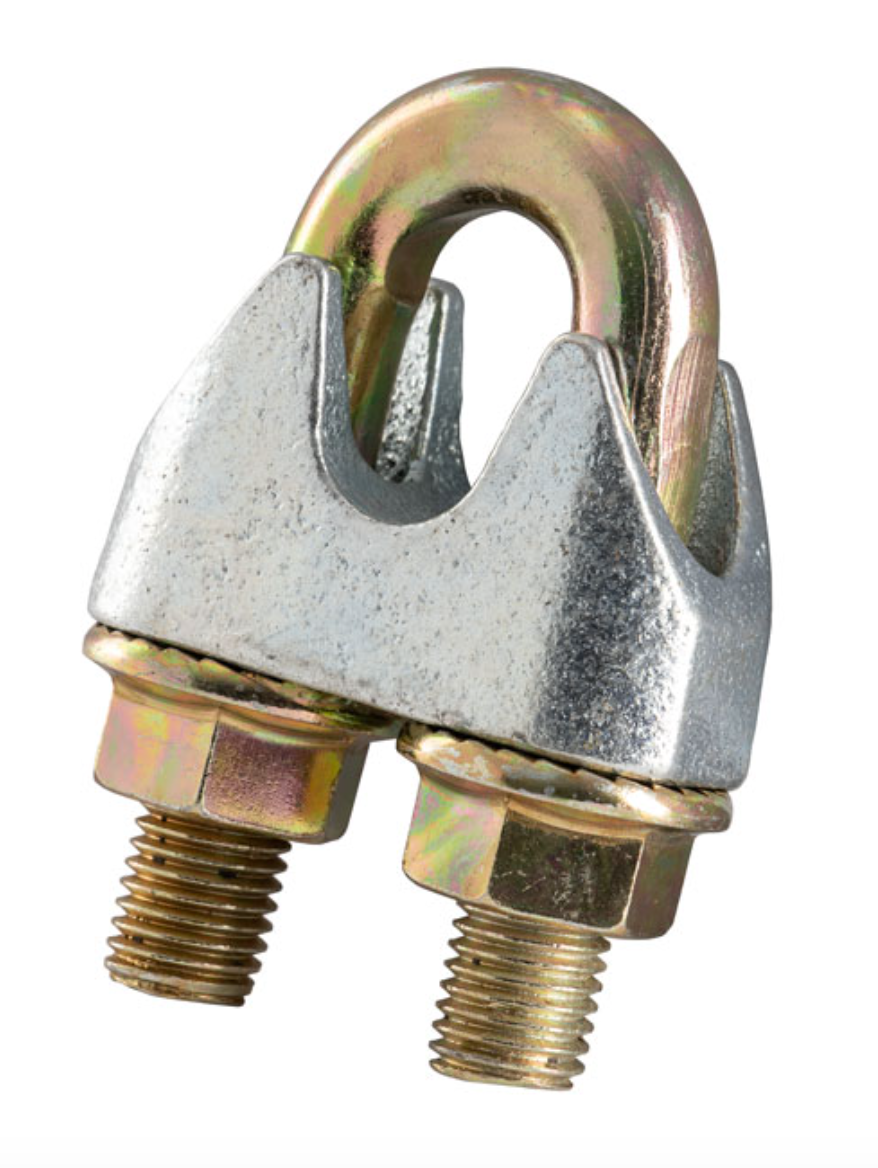

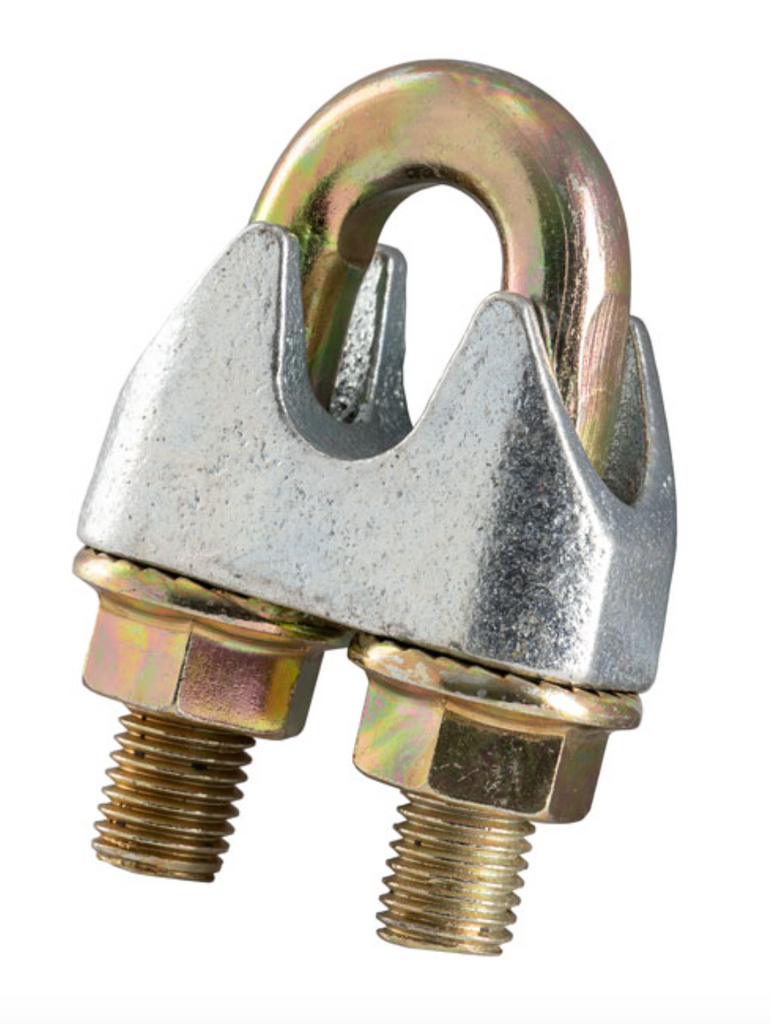

Wire Rope Grip BS EN Style - Type A

  • Malleable steel ungrooved bridge. Mild steel u-bolt and nuts.
  • Electro galvanised finish.
  • Meets the performance requirements of BS EN 13411 Part 5 Type A (Formerly DIN 1142). 13mm is additional and proportional to the standard.*
  • Marked with size on bridge and manufacturers ID on bridge and U bolt.
  • Certification available DoC

Spec

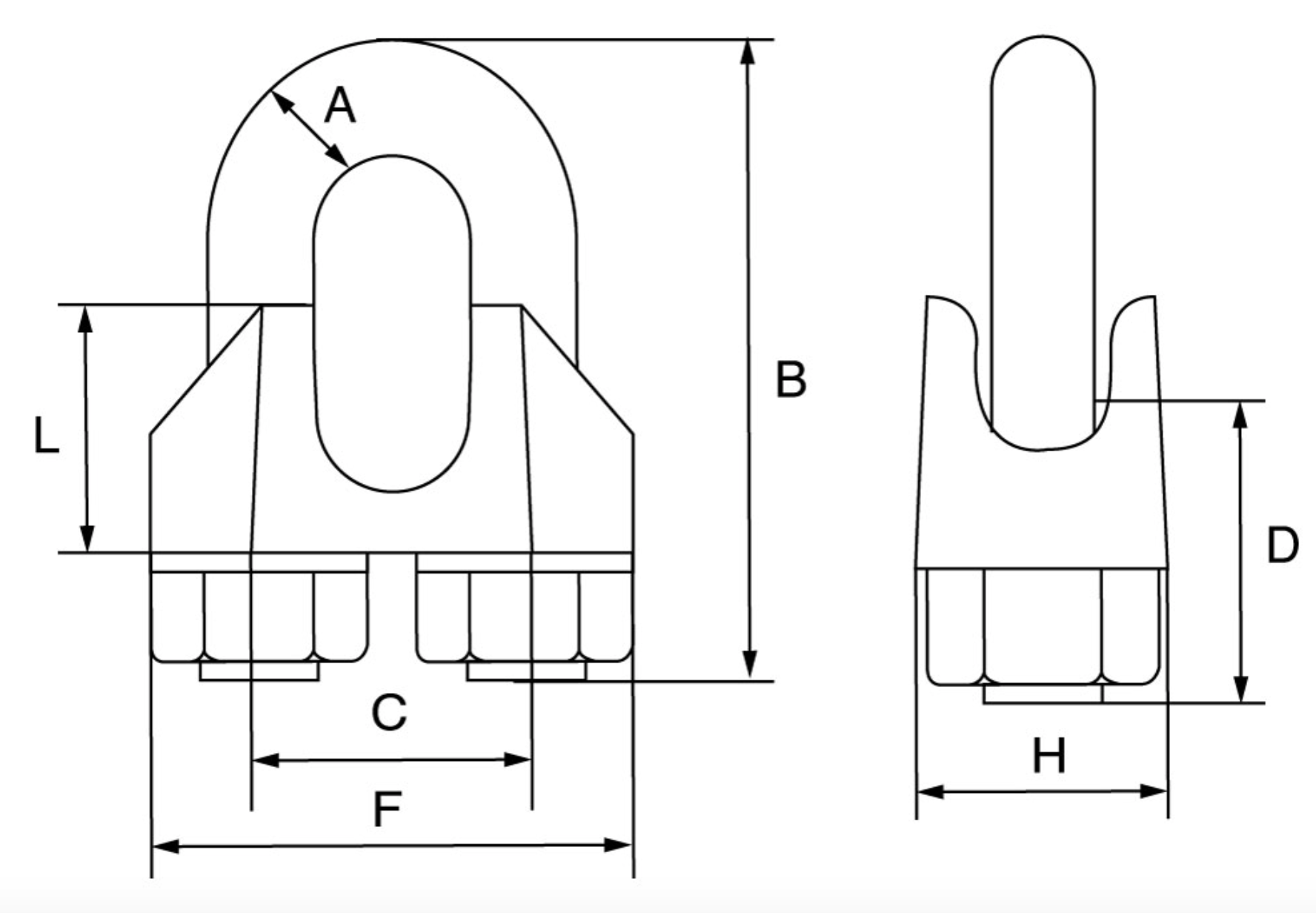

SKU Product Code Rope Dia A B C D F H L Weight
mm mm mm mm mm mm mm mm kgs/100
286-800-1 WRGEN5 5 5 25 12 13 25 13 13 2.1
286-800-2 WRGEN6.5 6.5 6 32 14 17 30 16 14 4
286-800-3 WRGEN8 8 8 41 18 20 39 20 18 8.2
286-800-4 WRGEN10 10 8 46 20 24 40 20 21 9.2
286-800-5 WRGEN12 12 10 56 24 28 50 24 25 25
286-800-6 WRGEN13 13 12 64 27 30 55 28 29 27.5
286-800-7 WRGEN14 14 12 66 28 31 59 28 30 35
286-800-8 WRGEN16 16 14 76 32 35 64 32 35 43
286-800-9 WRGEN19 19 14 83 36 36 68 32 40 49
286-800-10 WRGEN22 22 16 96 40 40 74 34 44 68
286-800-11 WRGEN26 26 20 111 46 50 84 38 51 117
286-800-12 WRGEN30 30 20 127 54 55 95 41 59 140
286-800-13 WRGEN34 34 22 141 60 60 105 45 67 213
286-800-14 WRGEN40 40 24 159 68 65 117 49 77 268

Downloads

  Duct rod data sheetProduct data sheet
