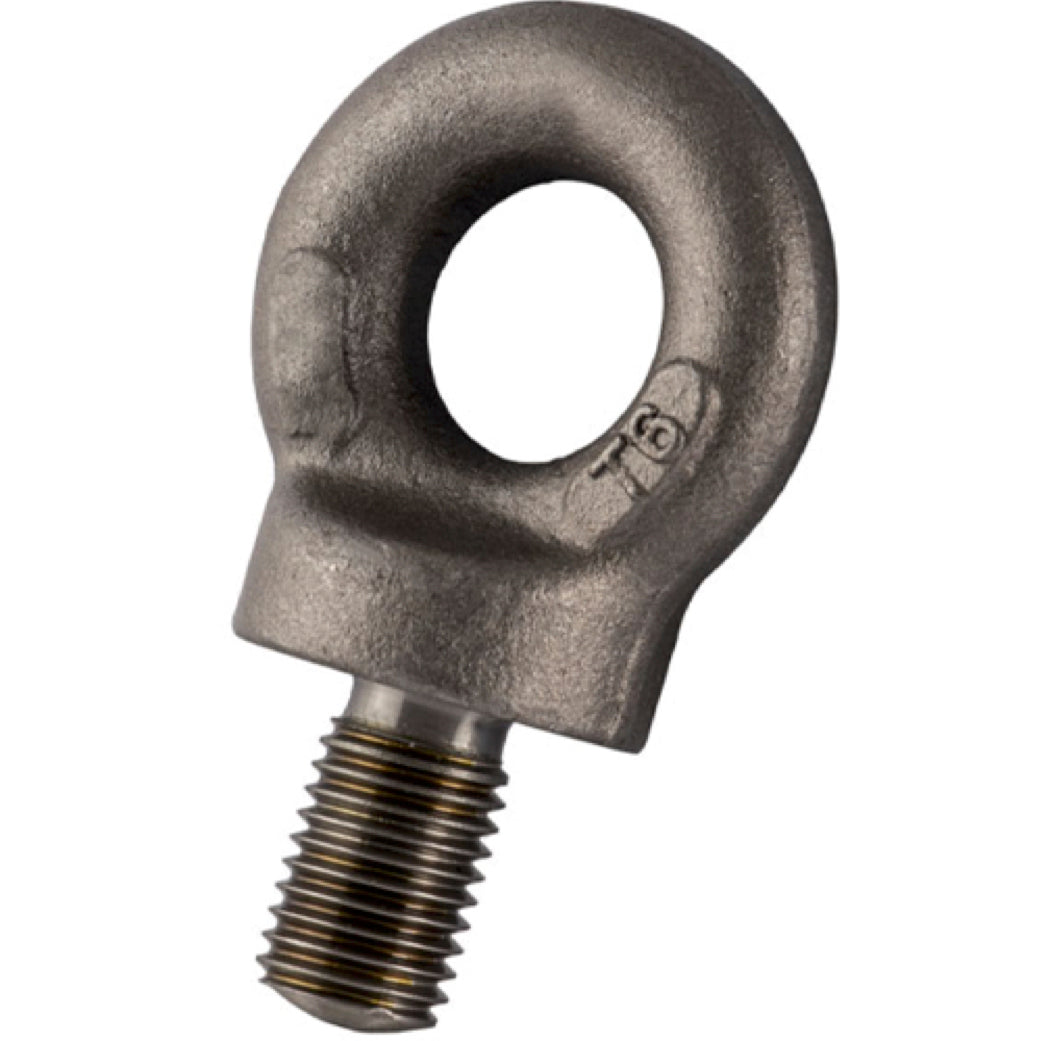

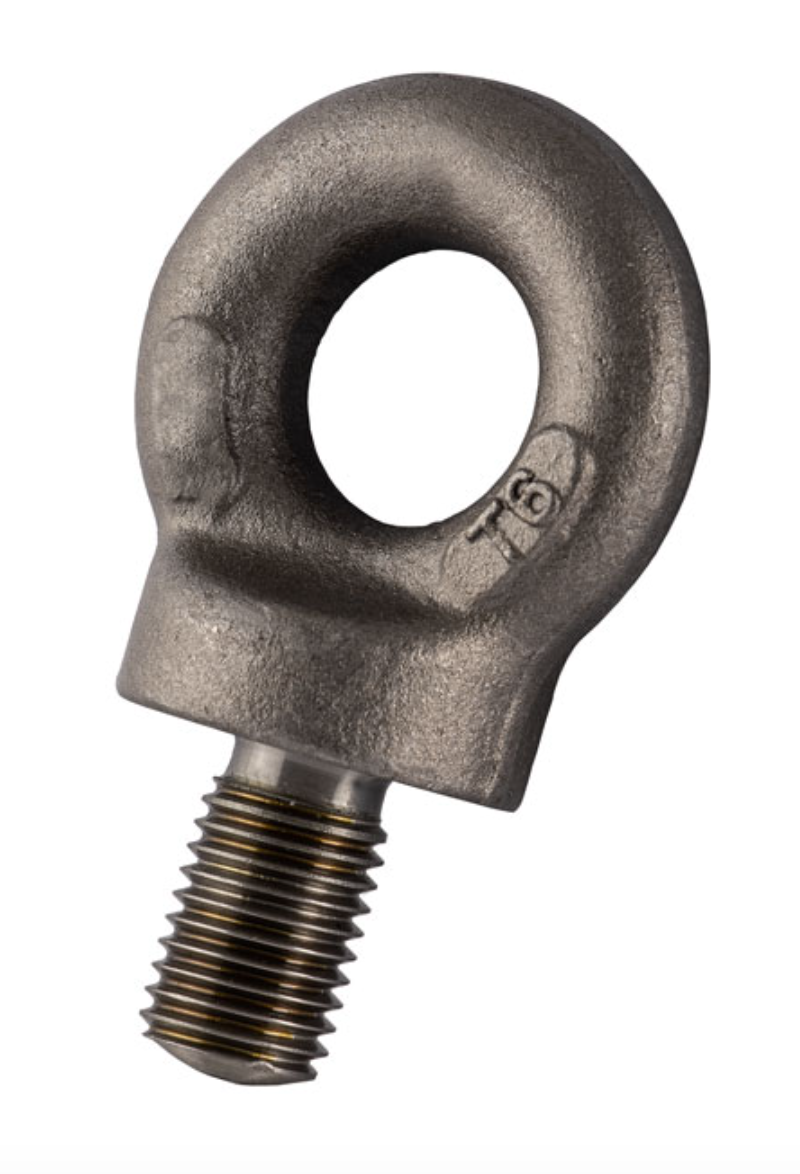

High Tensile Collared Eyebolt Whitworth Thread - EBCBSW
- Drop forged, high tensile steel, heat treated.
- Self colour and electro galvanised finish.
- Meets the W.L.L. performance requirements of BS 4278.
- Minimum breaking load is 5 times the W.L.L.
- Marked with CE, W.L.L, size and product ID mark.
- For further clarification on reductions for non-axial loading, please consult RiggingUK.
- Certification available 2.1 DoC
Spec

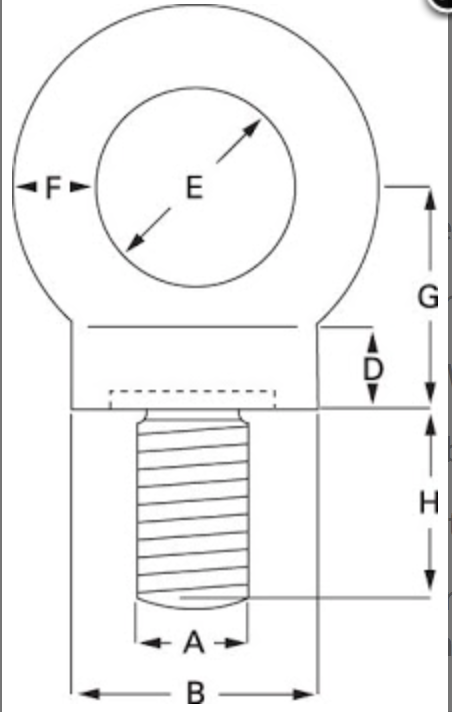

| SKU | Product Code | W.L.L. | A | B | C | E | F | G | H | Weight | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Whitworth | t | inch | mm | mm | mm | mm | mm | mm | kgs | ||
| 286-620-1 | EBBSW.25 | 0.25 | 3/8 | 22 | 7 | 15 | 9 | 20 | 17 | 0.06 | |
| 286-620-2 | EBBSW.5 | 0.5 | 1/2 | 29 | 10 | 20 | 12 | 26 | 22 | 0.07 | |
| 286-620-3 | EBBSW.9 | 0.9 | 5/8 | 36 | 12 | 24 | 14 | 32 | 28 | 0.14 | |
| 286-620-4 | EBBSW1.4 | 1.4 | 3/4 | 45 | 15 | 30 | 18 | 40 | 33 | 0.28 | |
| 286-620-5 | EBBSW2 | 2 | 7/8 | 52 | 17 | 35 | 21 | 46 | 39 | 0.6 | |
| 286-620-6 | EBBSW2.75 | 2.75 | 1 | 58 | 20 | 39 | 23 | 52 | 44 | 1.1 | |
| 286-620-7 | EBBSW3.5 | 3.5 | 11/8 | 64 | 21 | 42 | 25 | 57 | 50 | 1.6 |
