High Tensile Collared Eyebolt with UNC Thread

by GT
£2.37

SKU :286-621-1

Diameter/W.L.L.
Thread Type

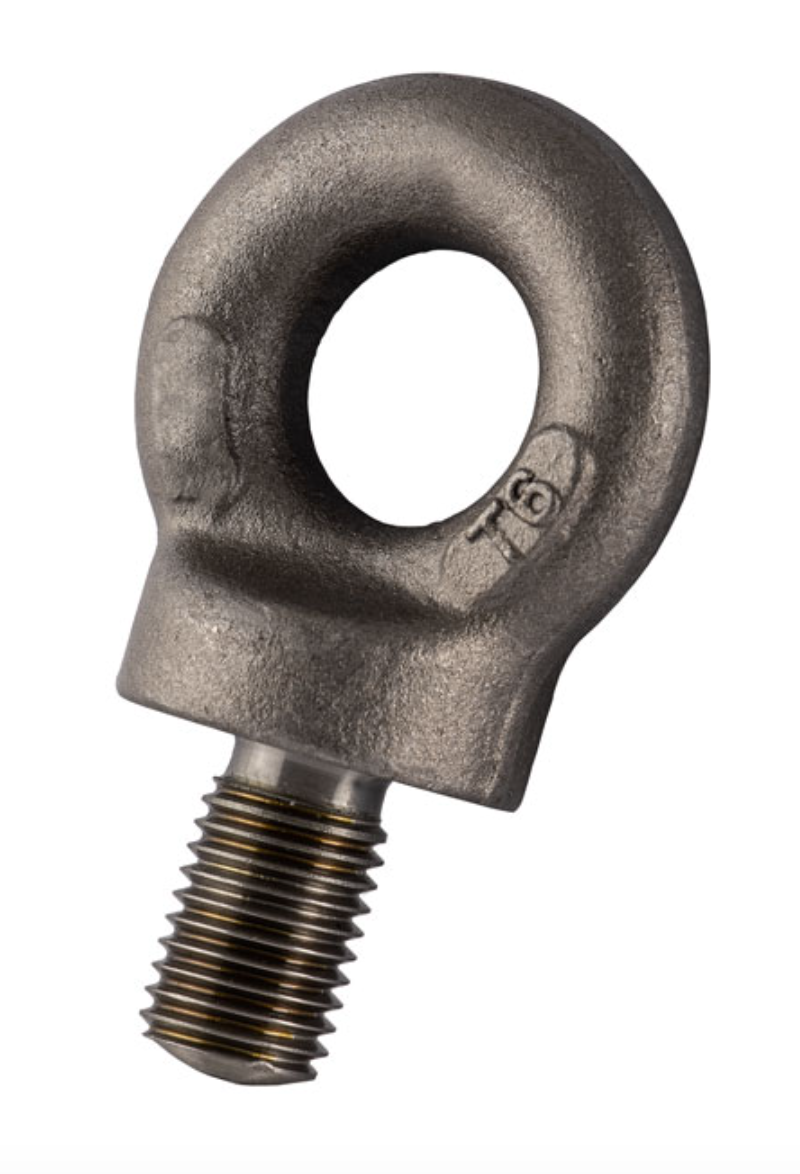

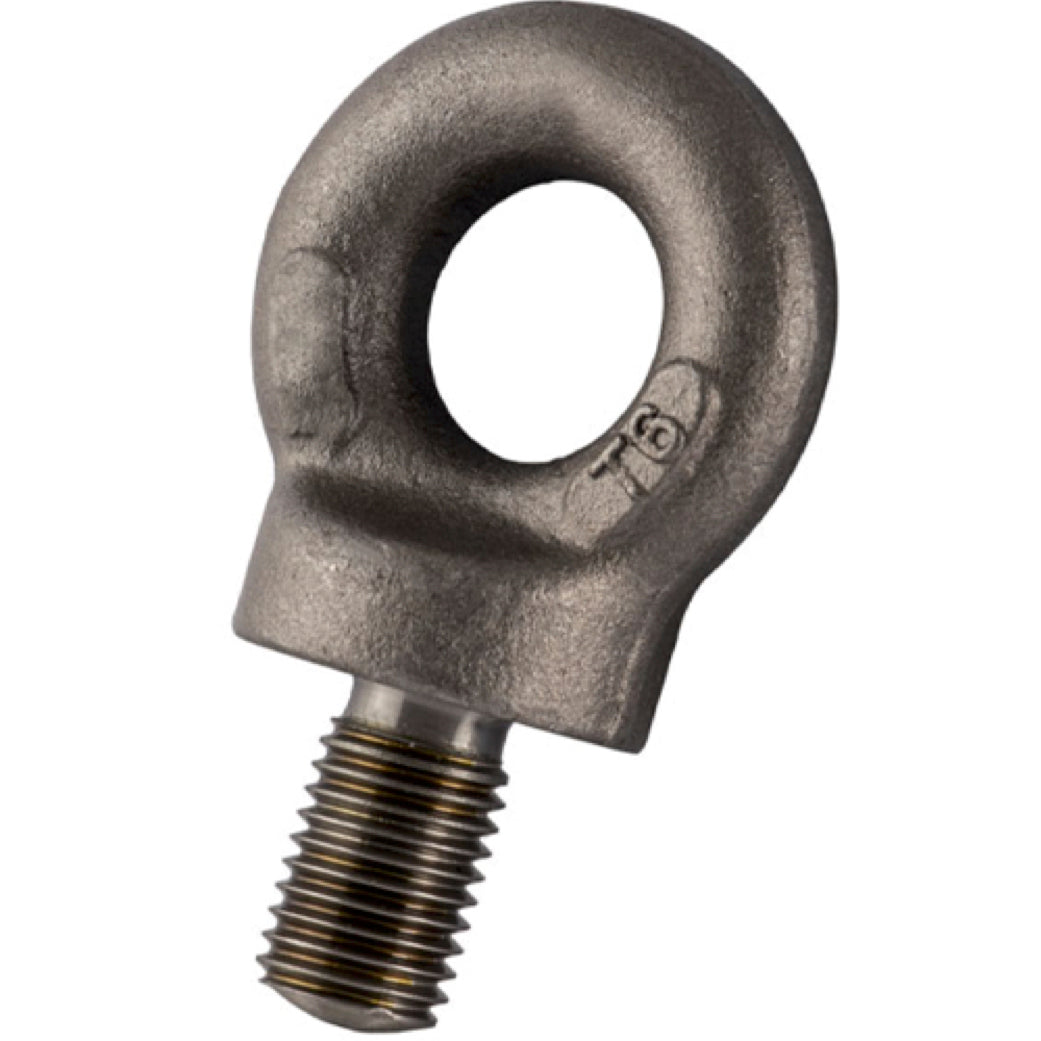

High Tensile Collared Eyebolt with UNC Thread - EBCUNC
  • Drop forged, high tensile steel, heat treated.
  • Self colour and electro galvanised finish.
  • Meets the W.L.L. performance requirements of BS 4278.
  • Minimum breaking load is 5 times the W.L.L.
  • Marked with CE, W.L.L, size and product ID mark.
  • For further clarification on reductions for non-axial loading, please consult RiggingUK
  • Supplied with an EC declaration of conformity



      Spec

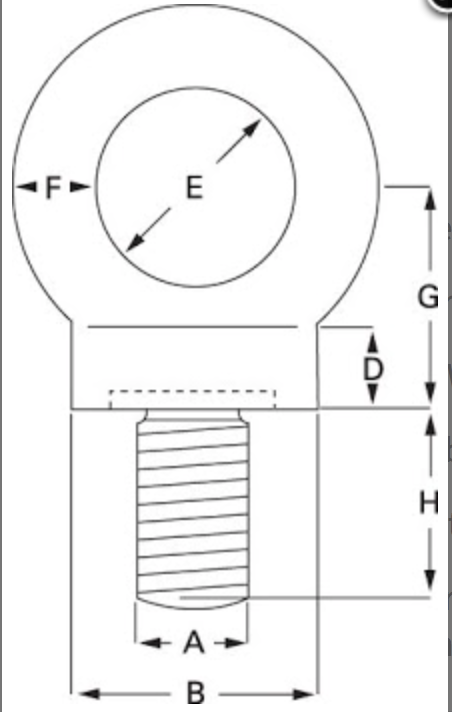

      SKU Product Code W.L.L. A B C E F G H Weight
      UNC t inch mm mm mm mm mm mm kgs
      286-621-1 EBUNC.25 0.25 3/8 22 7 15 9 20 17 0.06
      286-621-2 EBUNC.5 0.5 1/2 29 10 20 12 26 22 0.07
      286-621-3 EBUNC.9 0.9 5/8 36 12 24 14 32 28 0.14
      286-621-4 EBUNC1.4 1.4 3/4 45 15 30 18 40 33 0.28
      286-621-5 EBUNC2 2 7/8 52 17 35 21 46 39 0.6
      286-621-6 EBUNC2.75 2.75 1 58 20 39 23 52 44 1.1
      286-621-7 EBUNC3.5 3.5 11/8 64 21 42 25 57 50 1.6
