SKU | W.L.L. | A | B | C | D | E | G | H | Weight |
---|---|---|---|---|---|---|---|---|---|
t | mm | mm | mm | mm | mm | mm | mm | kgs | |
286-623-1 | 0.1 | 1/4 | 22 | 10 | 26 | 19 | 19 | 6 | 0.08 |
286-623-2 | 0.15 | 5/16 | 22 | 10 | 26 | 19 | 19 | 6 | 0.09 |
286-623-3 | 0.25 | 3/8 | 22 | 10 | 26 | 19 | 19 | 6 | 0.09 |
286-623-4 | 0.5 | 1/2 | 29 | 10.3 | 35 | 26 | 25 | 8 | 0.14 |
286-623-5 | 0.8 | 5/8 | 32 | 13 | 41 | 30 | 29 | 9.5 | 0.24 |
286-623-6 | 1.2 | 3/4 | 41 | 16 | 54 | 33 | 35 | 11.1 | 0.43 |
286-623-7 | 2.2 | 1 | 52 | 20.4 | 62 | 46 | 41 | 12.7 | 0.88 |

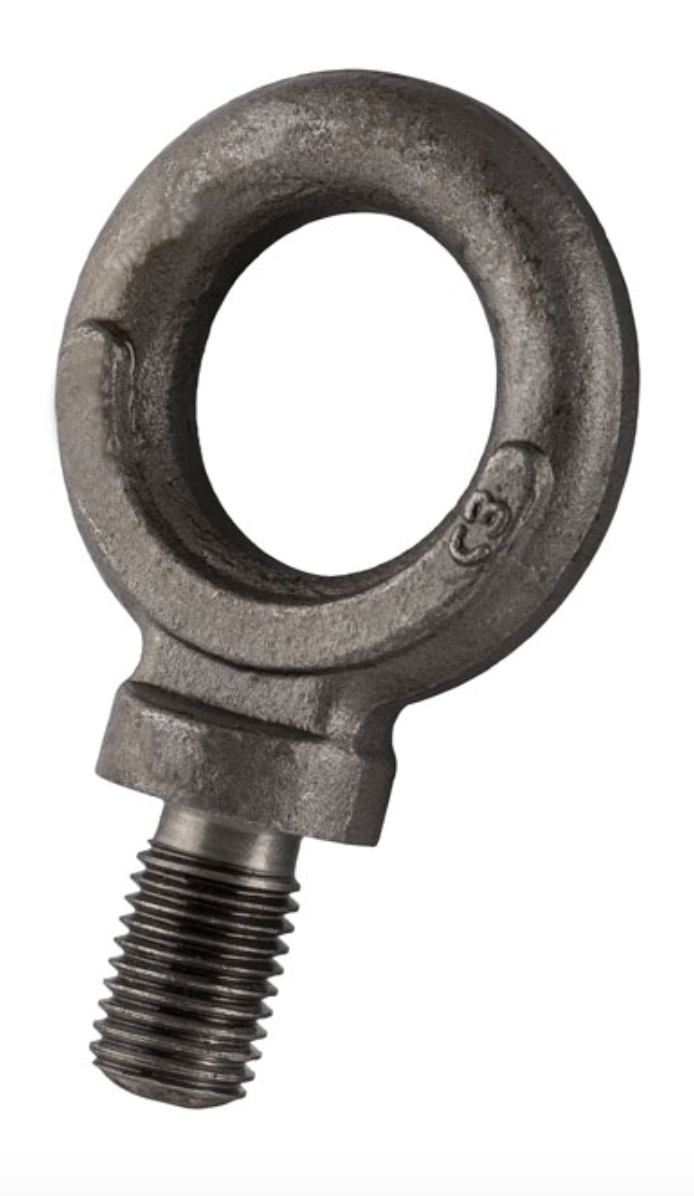

High Tensile Dynamo Eyebolt Whitworth Thread
Couldn't load pickup availability
Free UK Delivery ( Exclusive to Online orders only)
This offer is on orders over £100 Excluding VAT
Please allow up to 3 working days for delivery
Free delivery applies to UK mainland addresses only.
Due to increased delivery costs we regret that certain post code addresses in the Scottish Highlands, Scottish Islands, Isle of Man, Isle of Wight, Ireland , Northern Ireland and the Channel Islands extra charges may apply. In this instance someone from our Web team will contact you to confirm and take additional payment of additional delivery fees.
Some large products will require a fork lift vehicle in order to accept delivery. Where a forklift is not available, extra charges may apply. In this instance someone from our Web team will contact you to confirm and take additional payment of additional delivery fees
- Drop forged, high tensile steel, heat treated.
- Self colour and electro galvanised finish.
- Minimum breaking load is 5 times the W.L.L.
- Marked with CE, W.L.L, size and product ID mark.
- To be used for vertical lifting only.
- Certification available
Please note the Whitworth Thread Eyebolt are manufactured to order and if not in stock lead-the time will be a few days (dependent on quantity). This will be confirmed at point of ordering by our sales team.
