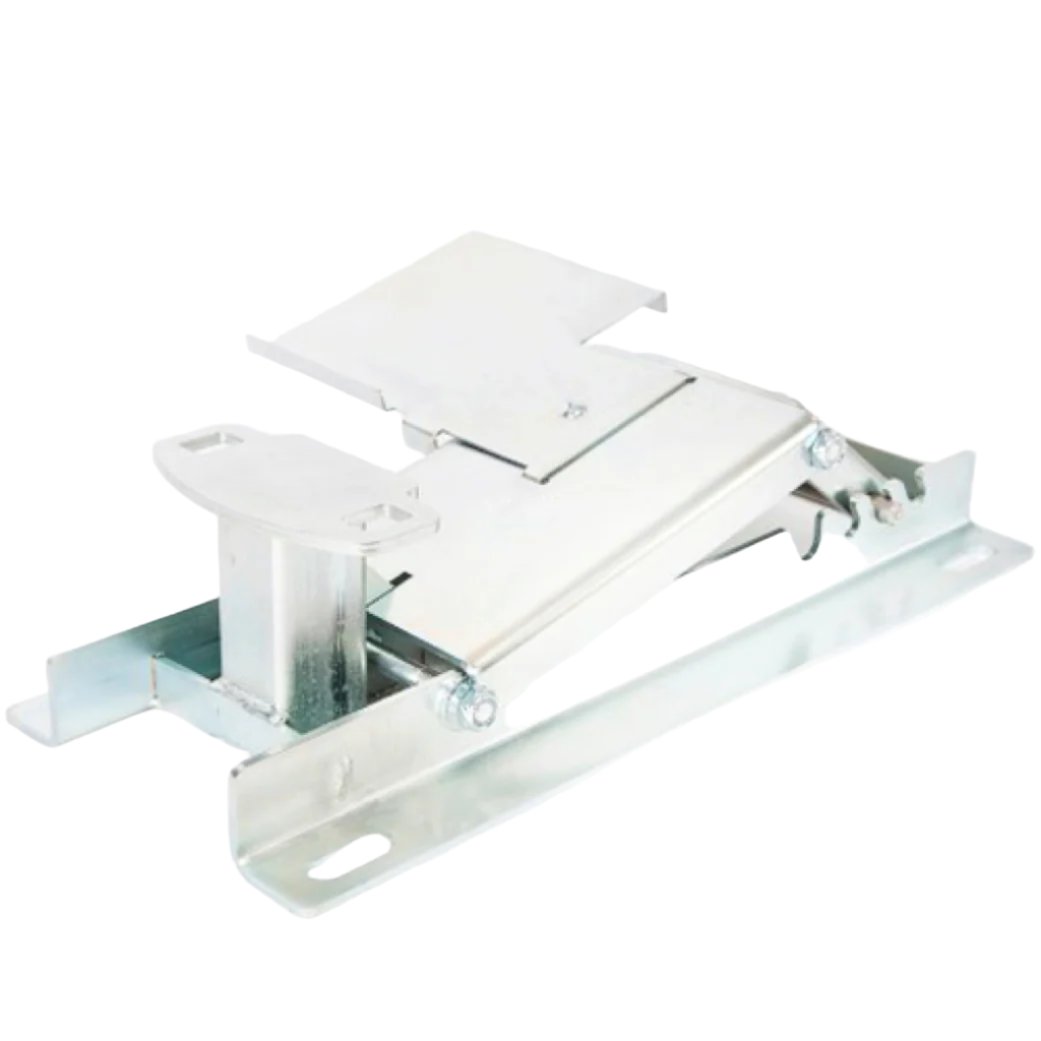

Floor Mount Winch Anchor for Portable Winch

£249.00

SKU :167-16-13

Winch support with adjustable shelf and swivel pulley for vertical or horizontal pulling. Installs on PCA-1263 (SKU 167-16-6), PCA-1265, PCA-1267 (SKU 167-16-11), PCA-1501, PCA-1806 (SKU 167-16-14). If used for horizontal pulling, the pivoting anchor (PCA-1332 / SKU 167-16-10) is necessary (sold separately).

This accessory has been specially designed for lifting operations. It offers solid support and its pulley directs the rope vertically, which means sections of the tower or pylon far from the centre can be reached.

Thanks to its adjustable and detachable shelf, it is suitable for all winch models (except the PCH2000 for which you should choose the PCA-2264 / SKU 167-16-15)).

The PCA-1264 (SKU 167-16-9) is compatible with many anchoring systems. For example, its 50.8 mm (2”) square tube can be installed on the anchoring system for trees/posts (PCA-1263 / SKU167-16-6), the adapter for the Heck-Peck system for European ball hitches (PCA-1265), square tubes (PCA-1267 / SKU 167-16-11) and PCA-1501 / SKU 167-16-12)) or the support for pylons (PCA-1806 / SJU 167-16-14)).

In certain situations, you can use it to pull horizontally. In this case, you can use it in combination with pivoting anchor PCA-1332  / SKU 167-16-10) (sold separately).

(Items sold separately).

NOTE: NOT COMPATIBLE WITH THE PCH2000 WINCH. USE THE PCA-2264  (SKU 167-16-15) WITH THIS WINCH.

Can be used with the following winch models:

  • PCW3000
  • PCW3000-Li
  • PCW5000
  • PCW5000-HS
  • PCH1000



Spec

Material :  Powder coated steel

WEIGHT & DIMENSIONS

Weight (metric) : 9,2 kg
Length (metric) : 61 cm
Width (metric) : 26 cm

ADDITIONAL INFORMATION

Additional Information : Equipped with a solid swivel pulley.
Additional information : Rope diameter when used for PULLING = 6 mm to 16 mm (1/4'' to 5/8''). Rope diameter when used for LIFTING = 12 mm to 13 mm (1/2''). NOTE: NOT COMPATIBLE WITH THE PCH2000 WINCH.

GTIN / EAN13  690581002335



Downloads

Duct rod data sheetCHART OF ANCHORINGS

Duct rod data sheetINSTRUCTIONS: ANGRAGE / ANCHOR PCA-1805 (FR) / (EN)
