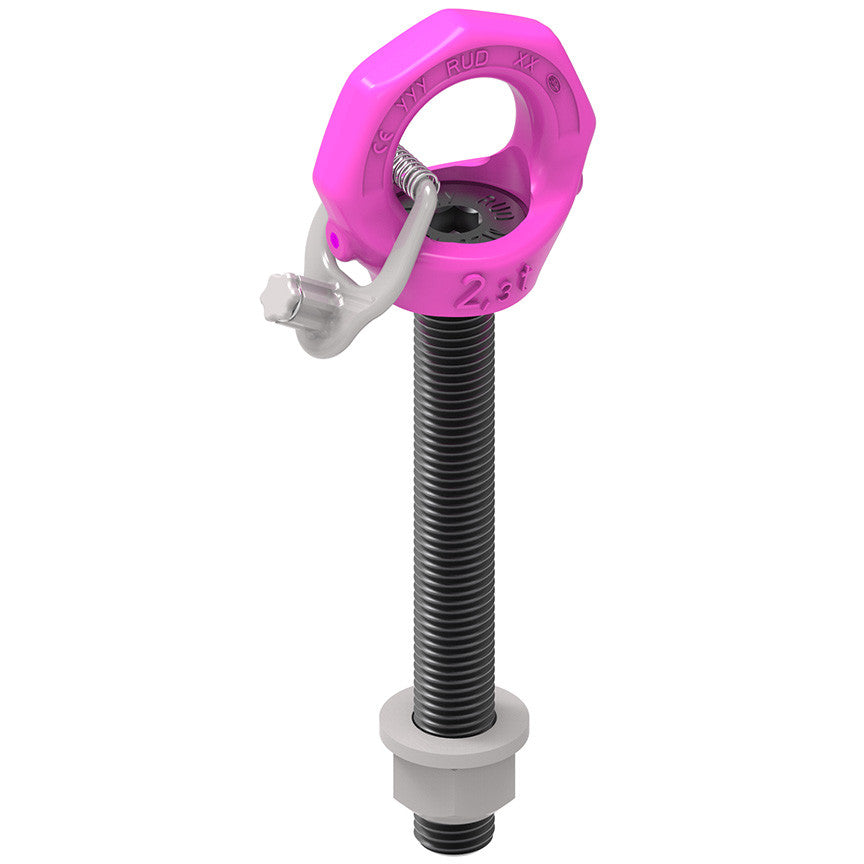

RUD VRS-F STARPOINT, metric thread with variable length, comes with locknut and washer
RUD VARIO STARPOINT VRS-F , metric thread with variable length, comes with locknut and washer
- Lifting points pivots 360°. Easy adjustment in load direction
- Clear marking of the minimum WLL for all loading directions
- Variable bolt lengths available for tapped or through holes
- Thread lengths must be indicated when ordering
- Tested and certificated by BGUV
- Complies with US-standard ASME B30.26
- Several times higher WLL than the DIN 580 eye bolt
- Easy Fit-Key for easy assembly and disassembly
Key Specifications
| Order Code | Article Number | Nominal Size | Nominal WLL | Variable Length |
| 264-27-1 | 8600270 | M10 | 0.4t | 16-70mm |
| 264-27-2 | 8600271 | M12 | 0.75t | 18-150mm |
| 264-27-3 | 8600272 | M16 | 1.5t | 24-120mm |
| 264-27-4 | 8600273 | M20 | 2.3t | 30-160mm |
| 264-27-5 | 8600274 | M24 | 3.2t | 36-140mm |
| 264-27-6 | 8600275 | M30 | 4.5t | 45-190mm |
