Stainless Steel Load Rated Screw Collar Pin Dee Shackle

by GT
£8.35

SKU :286-1204-1

W.L.L.

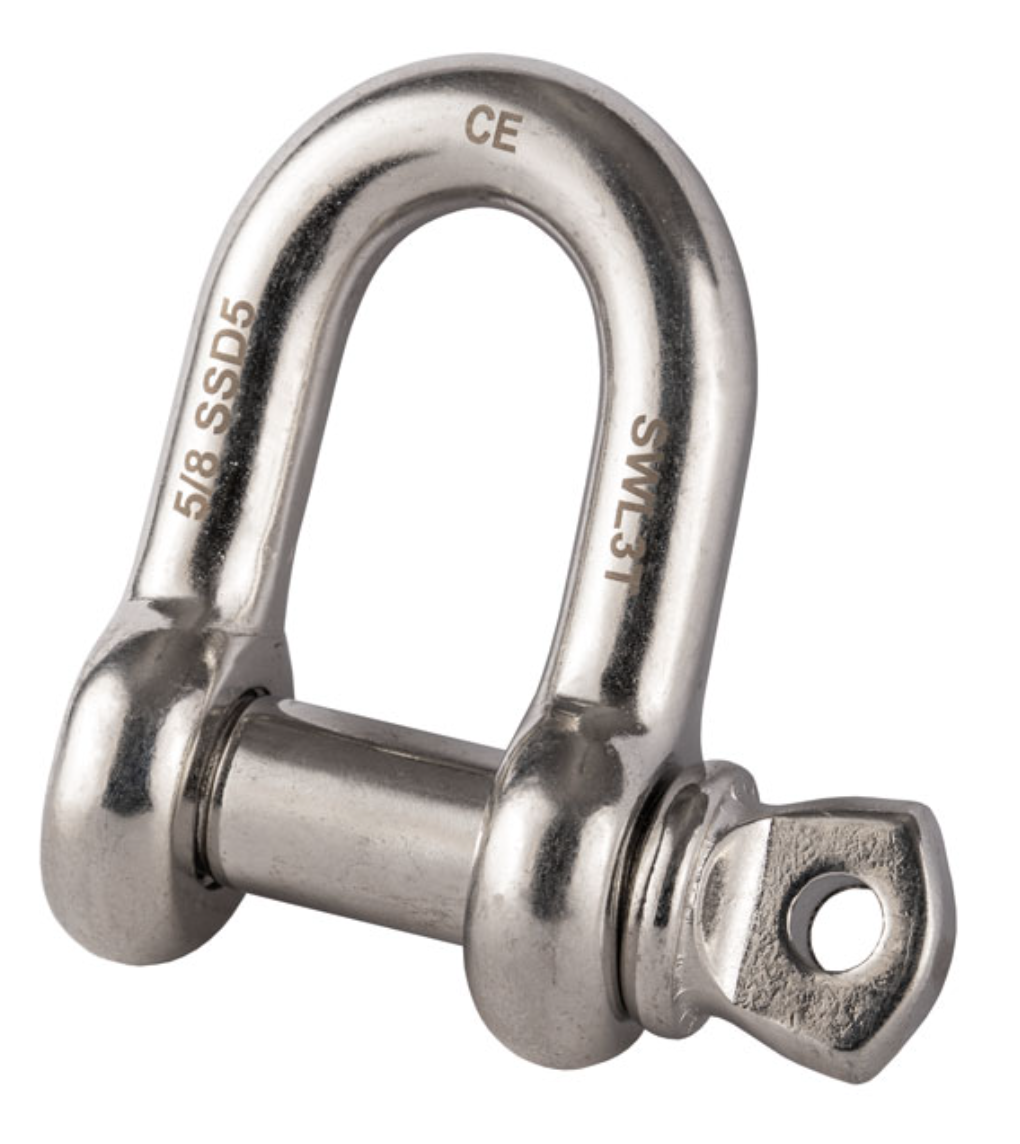

Stainless Steel Load Rated Screw Collar Pin Dee Shackle - SSLRSCDS

  • AISI 316 stainless steel.
  • Polished finish.
  • Marked with CE, W.L.L, size and traceability code.
  • Certification available

      Spec

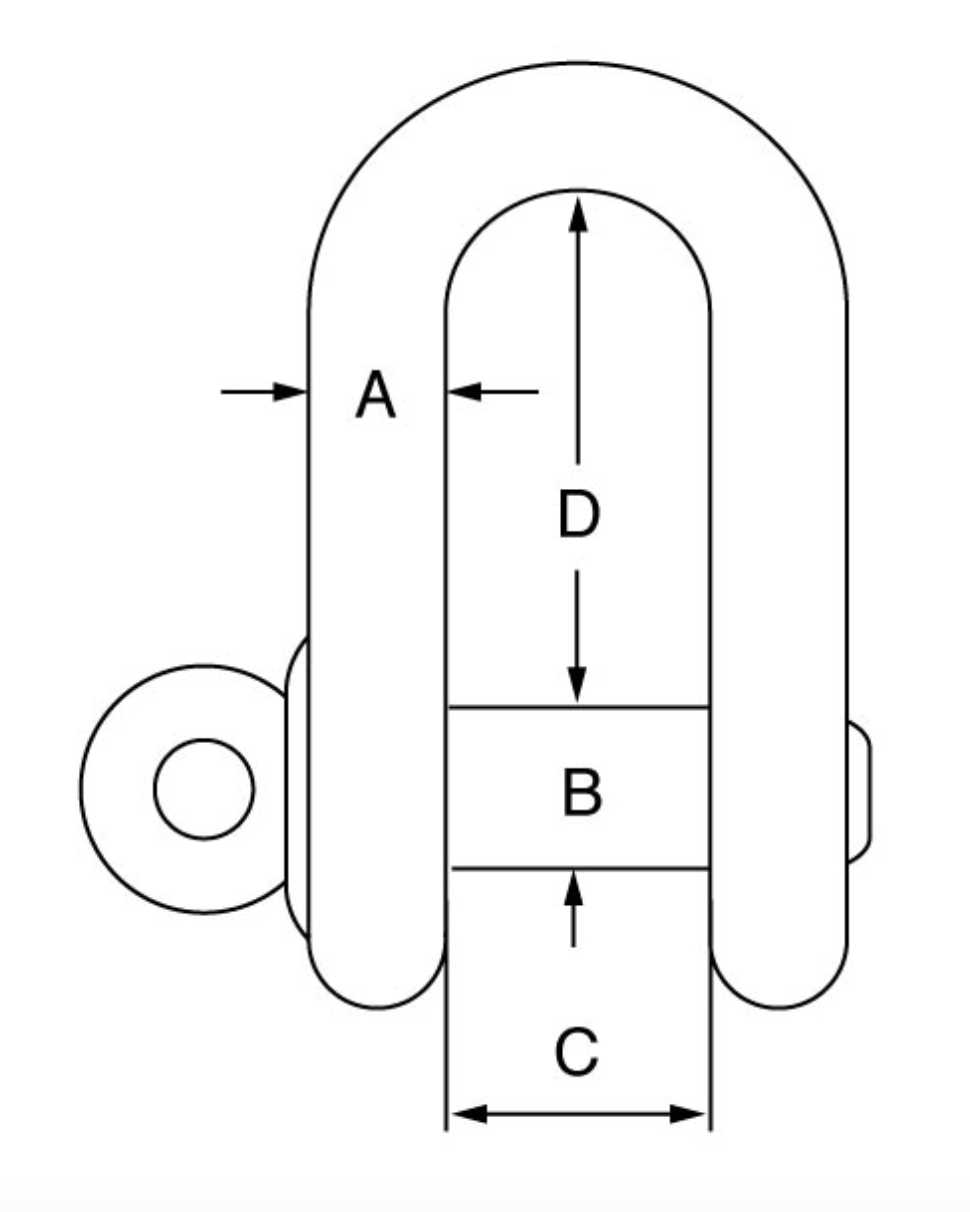

      SKU Product Code W.L.L. A B C D Weight
      t inch inch mm mm kgs
      286-1204-1 SSLRSCDS0.33 0.33 3/16 1/4 9.7 18 0.02
      286-1204-2 SSLRSCDS0.5 0.5 1/4 5/16 11.9 22.4 0.04
      286-1204-3 SSLRSCDS0.75 0.75 5/16 3/8 13.5 26.2 0.07
      286-1204-4 SSLRSCDS1 1 3/8 7/16 16.8 31.8 0.13
      286-1204-5 SSLRSCDS2 2 1/2 5/8 20.6 41.4 0.28
      286-1204-6 SSLRSCDS3 3 5/8 3/4 26.9 50.8 0.55
      286-1204-7 SSLRSCDS4 4 3/4 7/8 31.8 60.5 0.93
      286-1204-8 SSLRSCDS5 5 7/8 1 36.6 71.4 1.38
      286-1204-9 SSLRSCDS6 6 1 1 1/8 42.9 81 1.99



      Downloads

        Duct rod data sheetProduct data sheet
