Stainless Steel Commercial Screw Pin Dee Shackle

by GT
£1.11

SKU :286-1210-1

Body/Pin

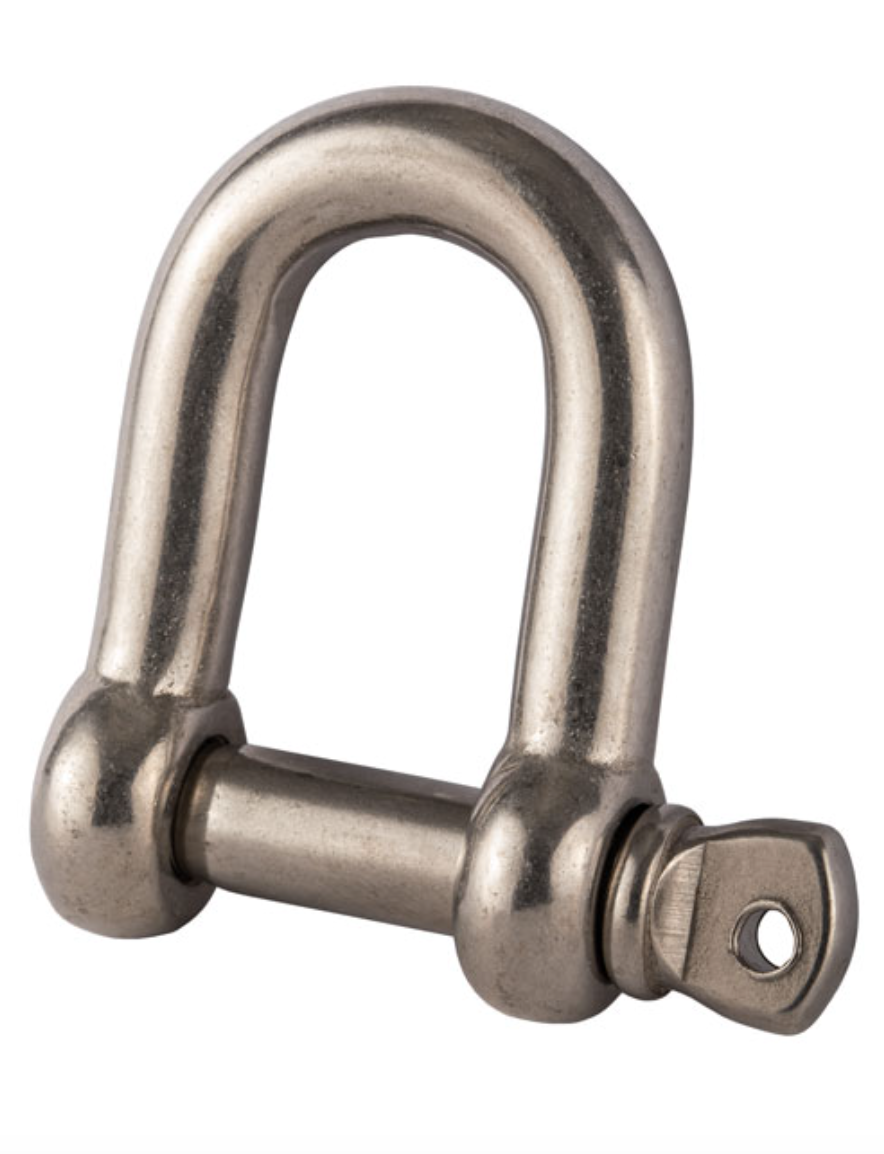

Stainless Steel Commercial Screw Pin Dee Shackle - SSDS

  • AISI 316 stainless steel.
  • Screw Collar Pin.
  • Polished finish.
  • Commercial quality, untested.
  • Certification available

                Spec

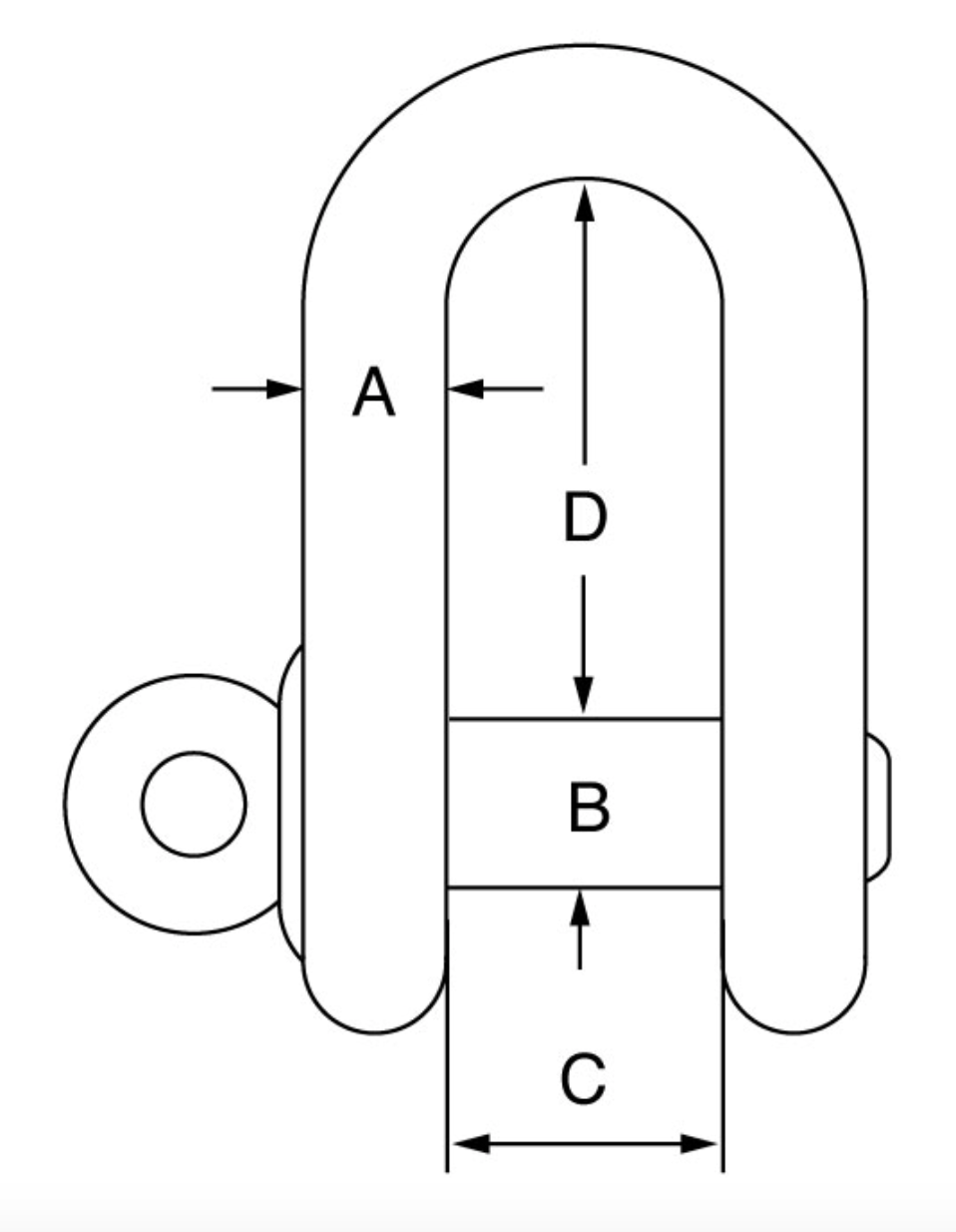

                SKU Product Code A B C D Weight
                mm mm mm mm kgs
                286-1210-1 SSDS4 4 4 8 16 0.01
                286-1210-2 SSDS5 5 5 10 20 0.02
                286-1210-3 SSDS6 6 6 12 24 0.024
                286-1210-4 SSDS8 8 8 16 32 0.06
                286-1210-5 SSDS10 10 10 20 40 0.13
                286-1210-6 SSDS12 12 12 24 48 0.2
                286-1210-7 SSDS16 16 16 32 64 0.5



                Downloads

                  Duct rod data sheetProduct data sheet
