Stainless Steel Load Rated Safety Nut and Bolt Pin Dee Shackle

by GT
£15.68

SKU :286-1205-1

W.L.L.

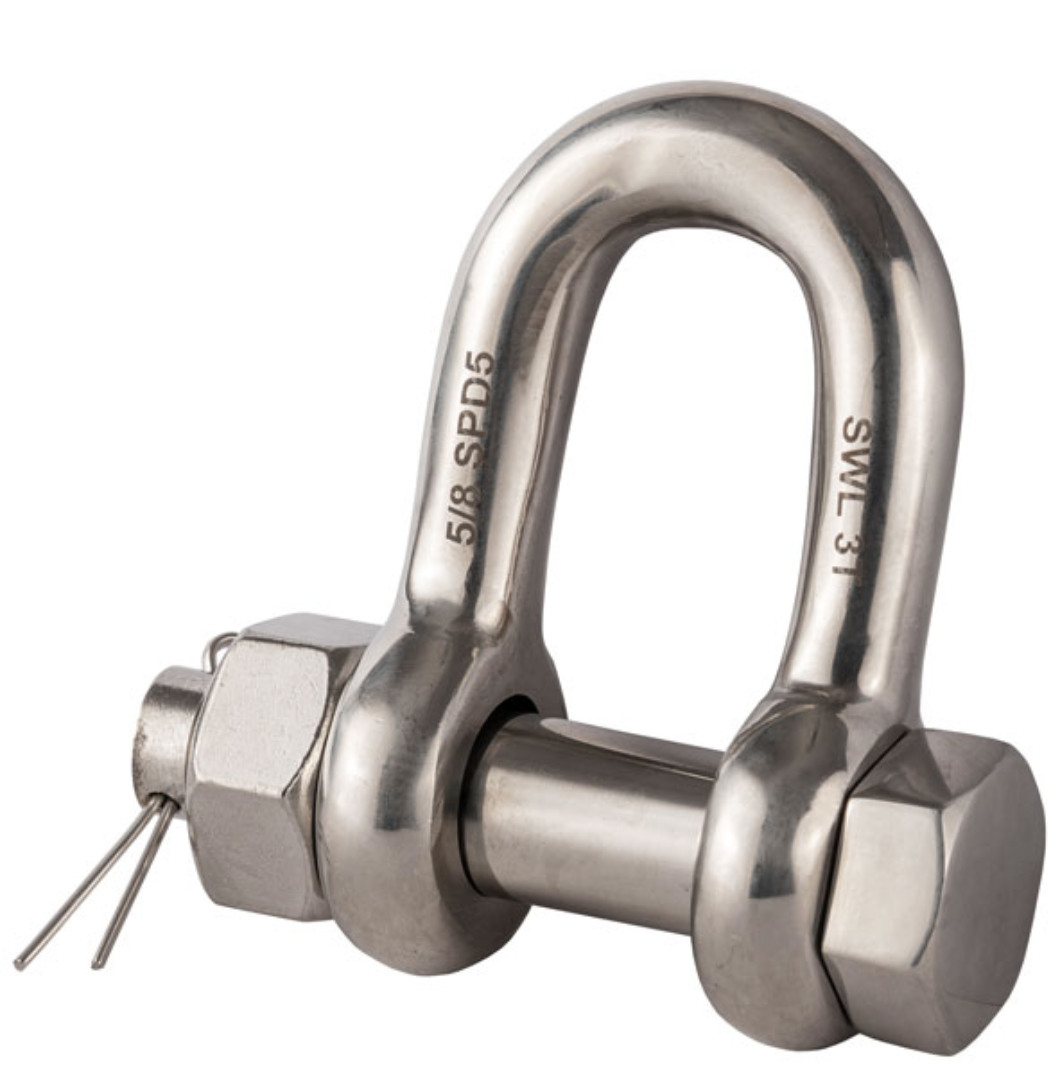

Stainless Steel Load Rated Safety Nut and Bolt Pin Dee Shackle - SSLRSADS

  • AISI 316 stainless steel.
  • Polished finish.
  • Marked with CE, W.L.L, size and traceability code.
  • Certification available

        Spec

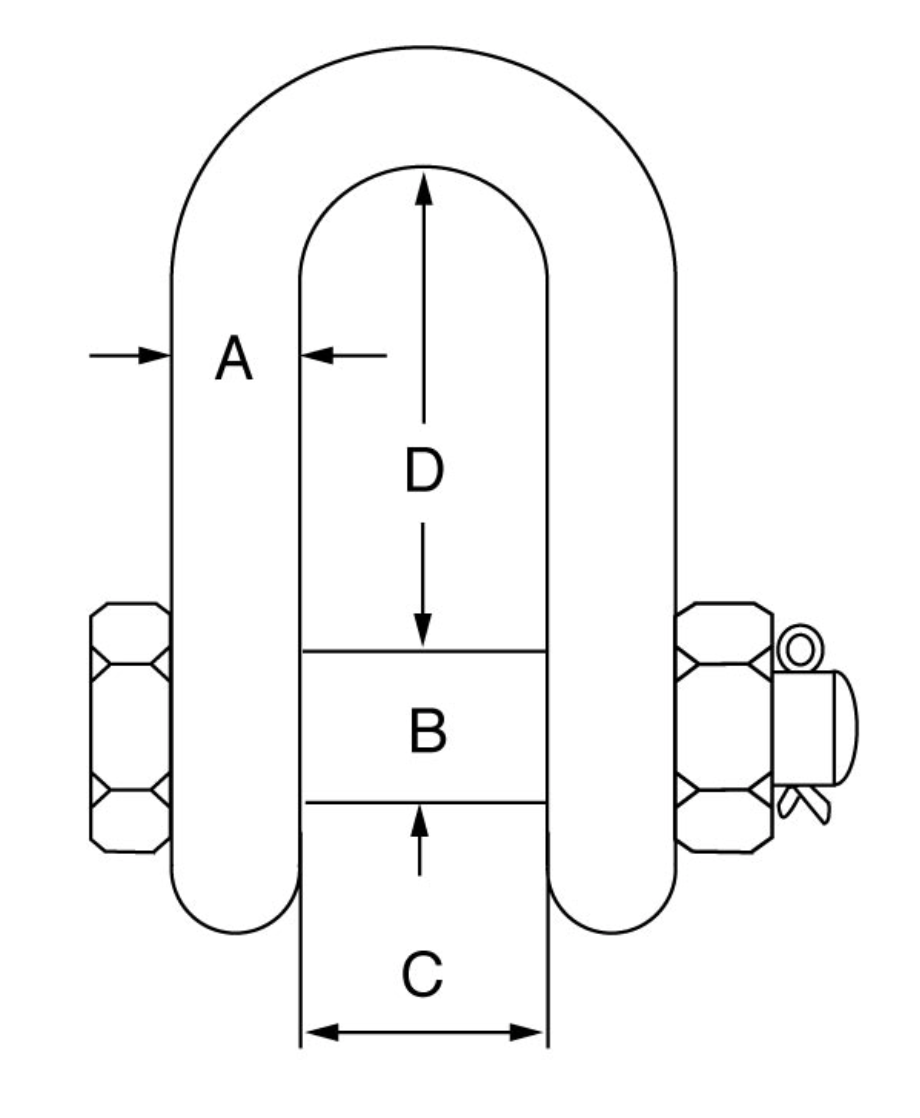

        SKU Product Code W.L.L. A B C D Weight
        t inch inch mm mm kgs
        286-1205-1 SSLRSADS.75 0.75 5/16 3/8 13.5 26.2 0.07
        286-1205-2 SSLRSADS1 1 3/8 7/16 16.8 31.8 0.13
        286-1205-3 SSLRSADS2 2 1/2 5/8 20.6 41.4 0.28
        286-1205-4 SSLRSADS3 3 5/8 3/4 26.9 50.8 0.55
        286-1205-5 SSLRSADS4 4 3/4 7/8 31.8 60.5 0.93
        286-1205-6 SSLRSADS5 5 7/8 1 36.6 71.4 1.38
        286-1205-7 SSLRSADS6 6 1 1 1/8 42.9 81 1.99



        Downloads

          Duct rod data sheetProduct data sheet
