Hoist Power & Low Voltage Control Cable Looms - 16A Male To Female 4-PIN CEE FORM TYPE Ref: 280-1

by Orptech

SKU :280-1-5


Hoist Power & Control Cable - (for Low Voltage Control Motors) -  16A Male To Female 4-PIN CEE FORM TYPE Ref: 280-1

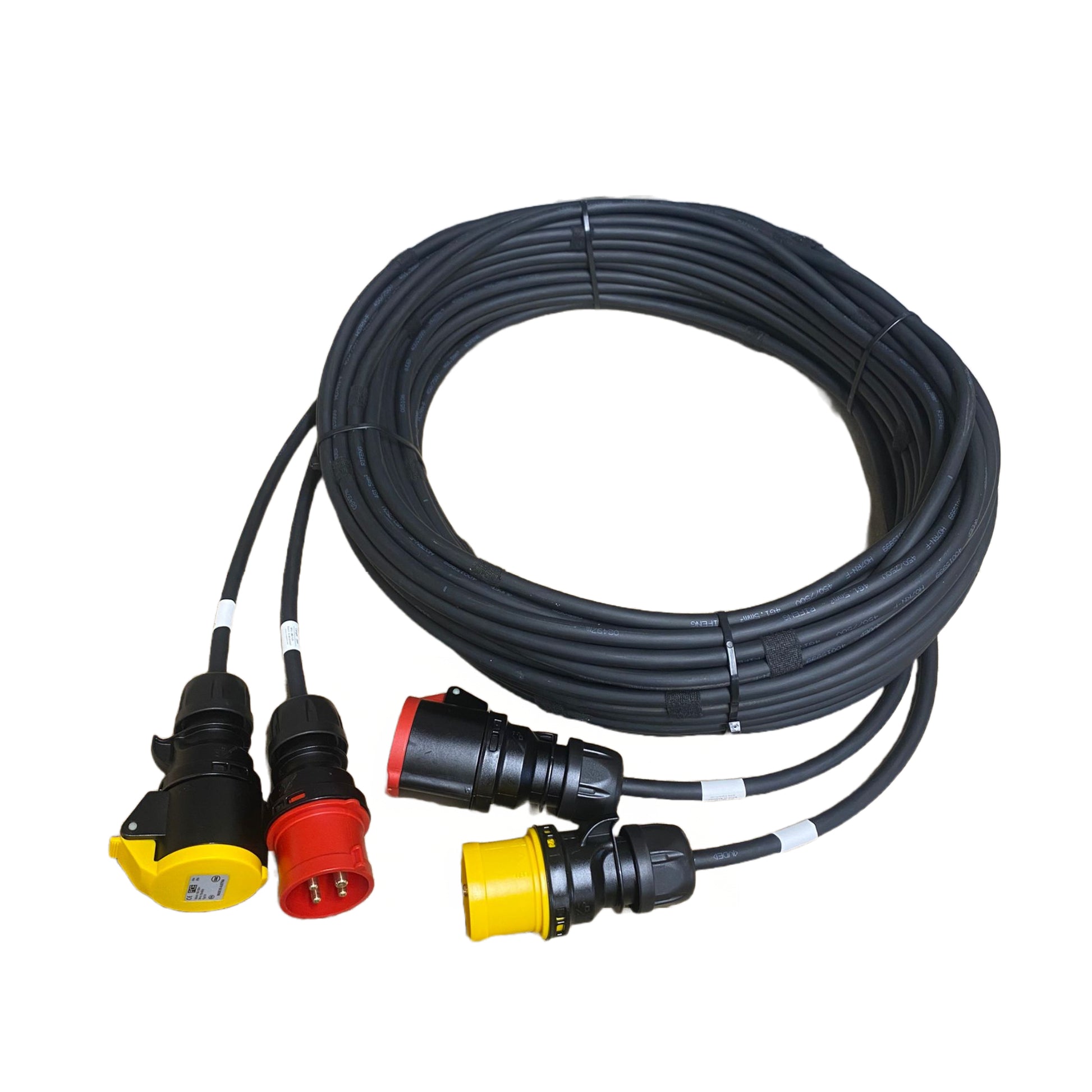

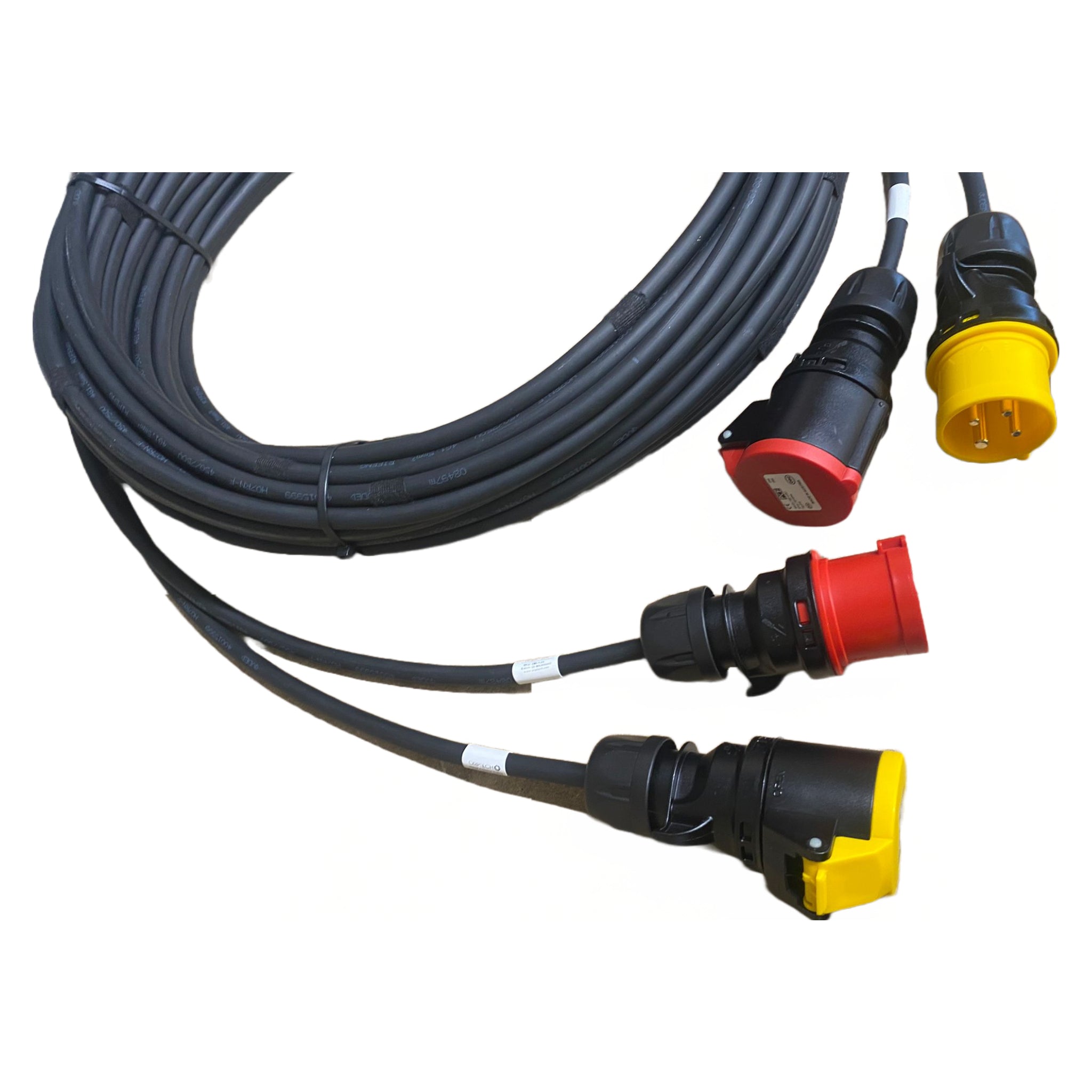

We can provide various cable sets for use with powered chain motors (electric chain hoists) for use in semi-permanent entertainment applications in venues, theatres and festivals. The standard cable sets are available in various lengths and consist of a power and control cable strapped together.

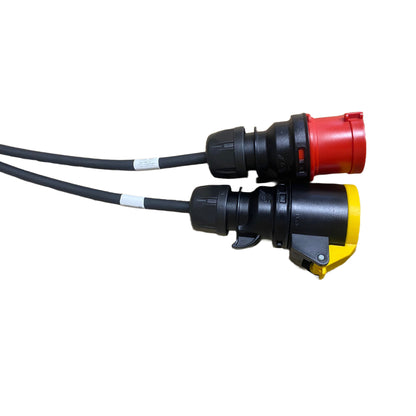

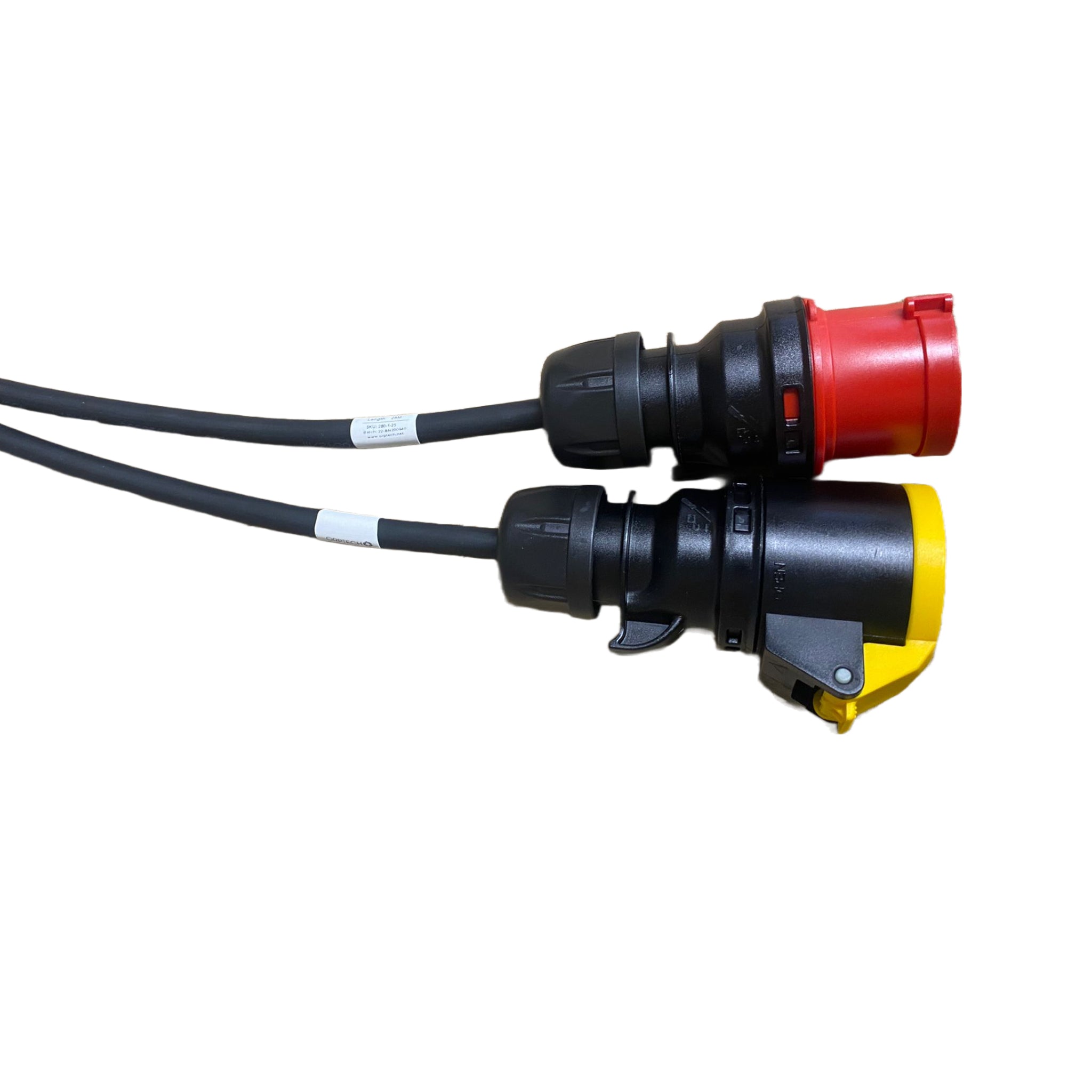

  • The power set is a plug to socket cable with 415V 4 pin, 16 amp red CEE connectors.
  • The control set is a socket to plug cable with 110V 4 pin, 16 amp yellow CEE connectors. They are designed and intended for use with Low Voltage Motors with limit switches.
  • Mains cables for controller inputs or for direct control hoists are also available.
  • We can also supply cable sets with Harting Type or Socapex connectors - also break out spiders to allow multipin connectors to be plugged in then distributed to several CEE connectors.
  • Cable is 1.5mm H07-RNF

The RUK Motor cable sets (motor looms) are available in 5, 10, 15, 20, 25, 30, 35, 40, 45, 50, 55 and 60m lengths (or to suit your requirements).
