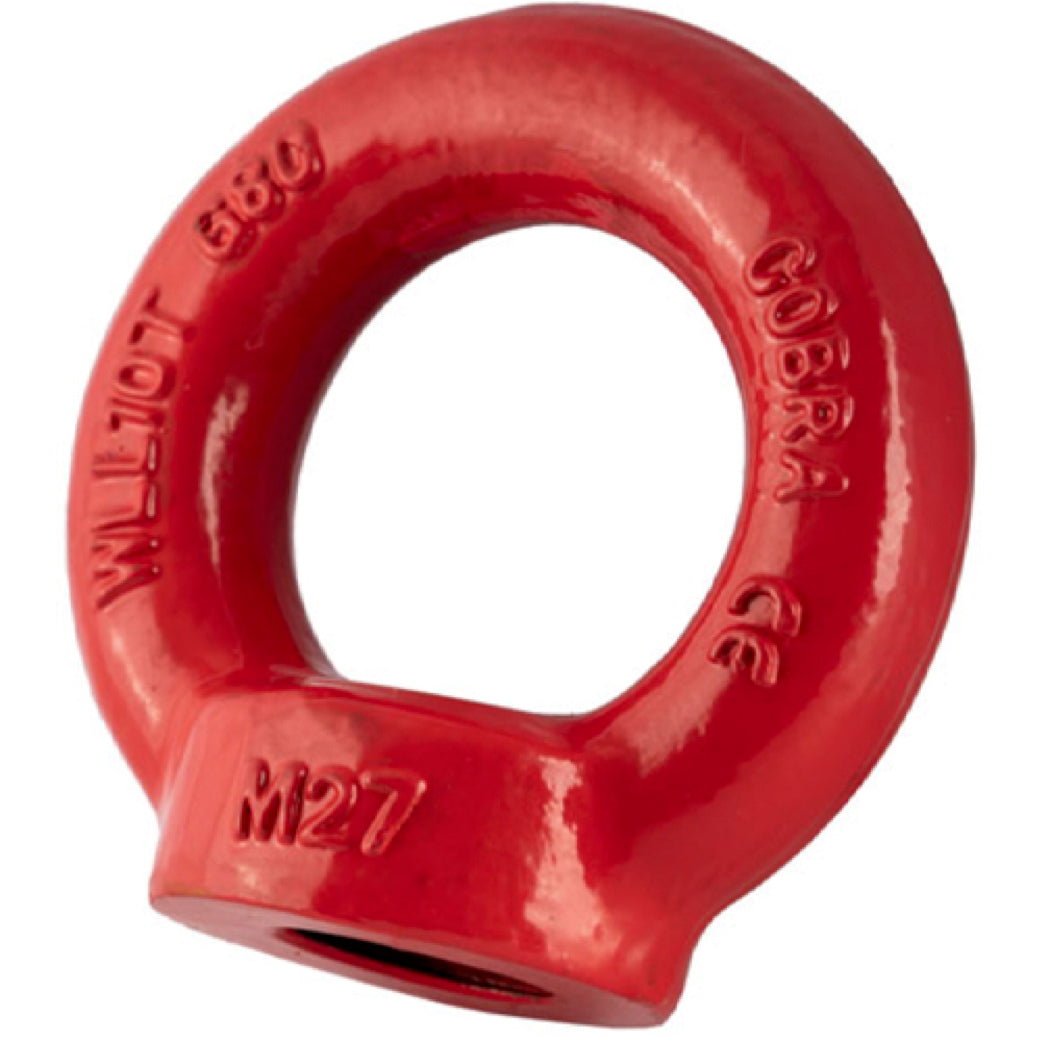

GT Cobra Grade 80 Eyenut - G80EN
- Alloy steel.
- Red painted finish.
- Sizes based generally on DIN 582 eyenuts.
- Minimum breaking load is 4 times the W.L.L.
- W.L.L. is based upon in line lifting only.
- Marked with CE, W.L.L, material grade, manufacturers ID and size.
- For further clarification on reductions for non-axial loading, please consult GT Lifting.
- Certification available DoC

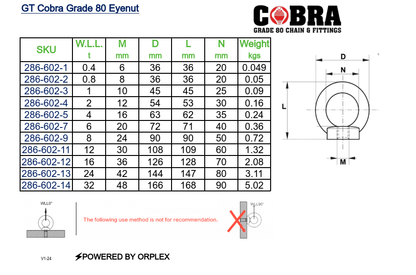

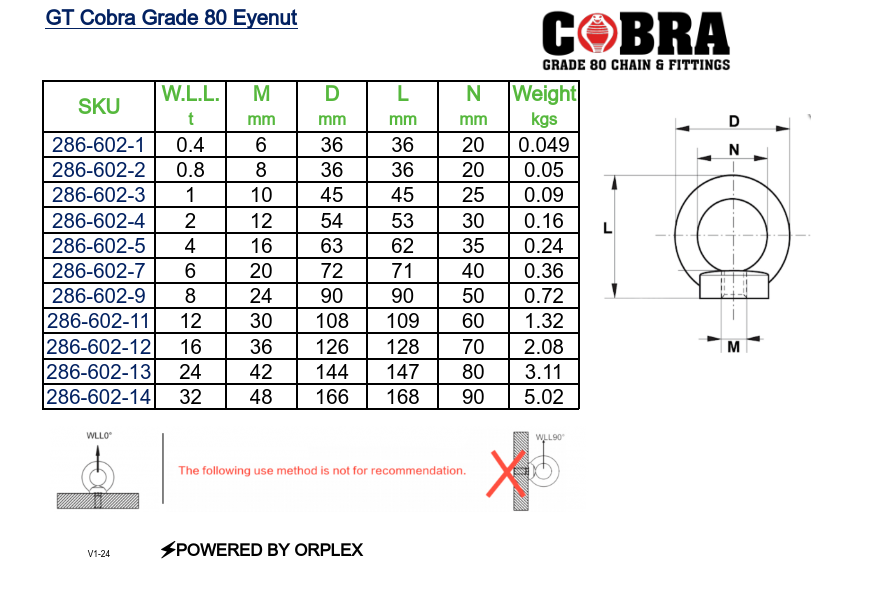

Spec

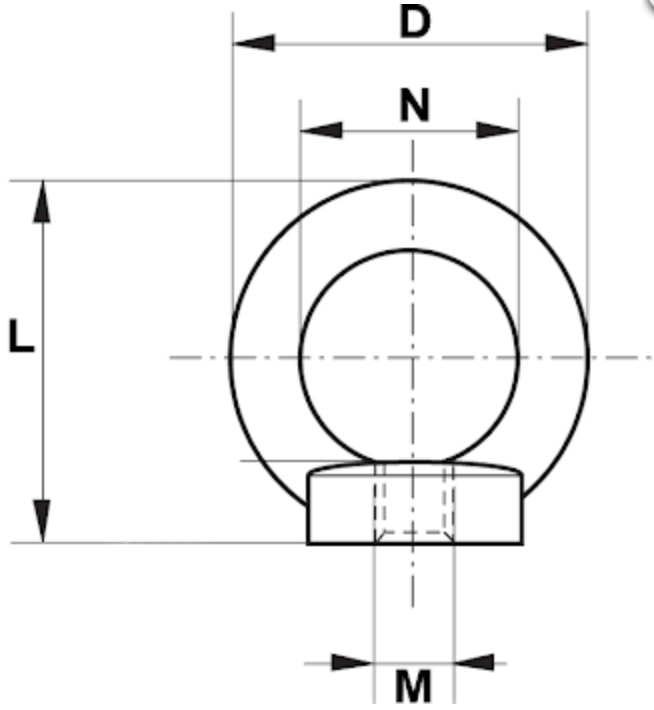

| SKU | Product Code | Part No. | W.L.L. | M | D | L | N | Weight |
|---|---|---|---|---|---|---|---|---|
| t | mm | mm | mm | mm | kgs | |||
| 286-602-1 | G80EN6 | SLR055-M6 | 0.4 | 6 | 36 | 36 | 20 | 0.049 |
| 286-602-2 | G80EN8 | SLR055-M8 | 0.8 | 8 | 36 | 36 | 20 | 0.05 |
| 286-602-3 | G80EN10 | SLR055-M10 | 1 | 10 | 45 | 45 | 25 | 0.09 |
| 286-602-4 | G80EN12 | SLR055-M12 | 2 | 12 | 54 | 53 | 30 | 0.16 |
| 286-602-5 | G80EN16 | SLR055-M16 | 4 | 16 | 63 | 62 | 35 | 0.24 |
| 286-602-7 | G80EN20 | SLR055-M20 | 6 | 20 | 72 | 71 | 40 | 0.36 |
| 286-602-9 | G80EN24 | SLR055-M24 | 8 | 24 | 90 | 90 | 50 | 0.72 |
| 286-602-11 | G80EN30 | SLR055-M30 | 12 | 30 | 108 | 109 | 60 | 1.32 |
| 286-602-12 | G80EN36 | SLR055-M36 | 16 | 36 | 126 | 128 | 70 | 2.08 |
| 286-602-13 | G80EN42 | SLR055-M42 | 24 | 42 | 144 | 147 | 80 | 3.11 |
| 286-602-14 | G80EN48 | SLR055-M48 | 32 | 48 | 166 | 168 | 90 | 5.02 |
