GT Cobra Grade 80 Swivel Lifting Eyebolt with Ring

£20.17

SKU :286-604-1

Diameter
Length/W.L.L.

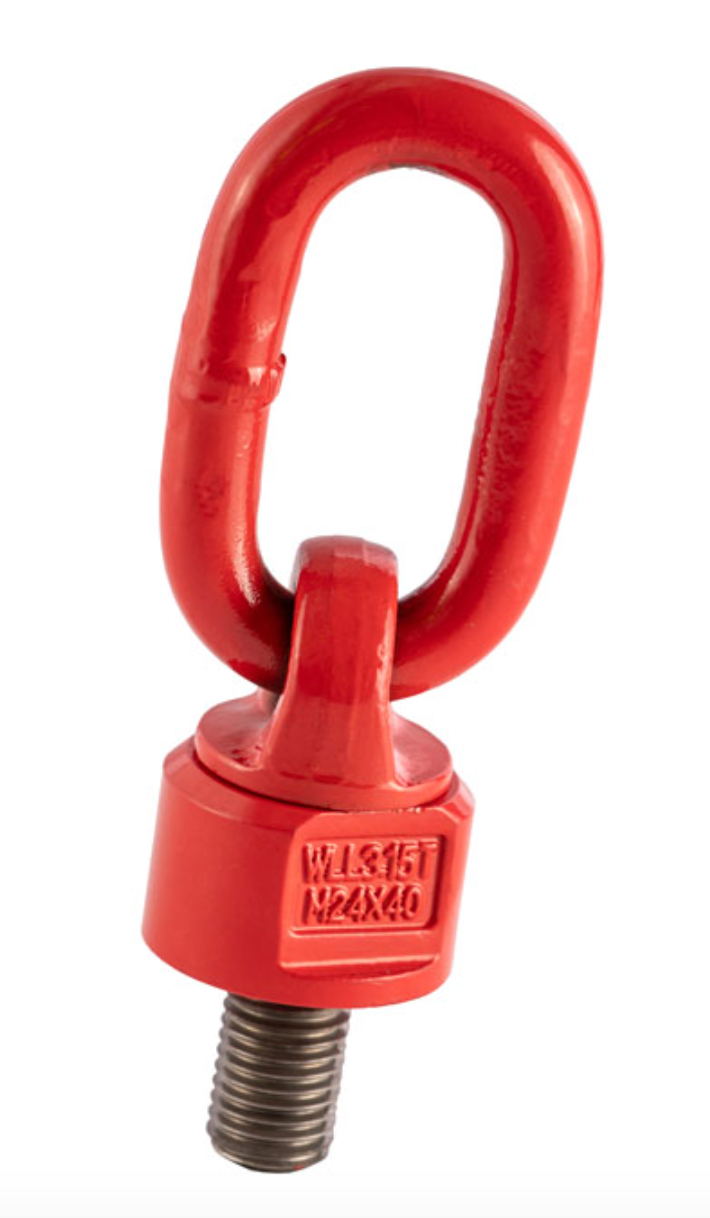

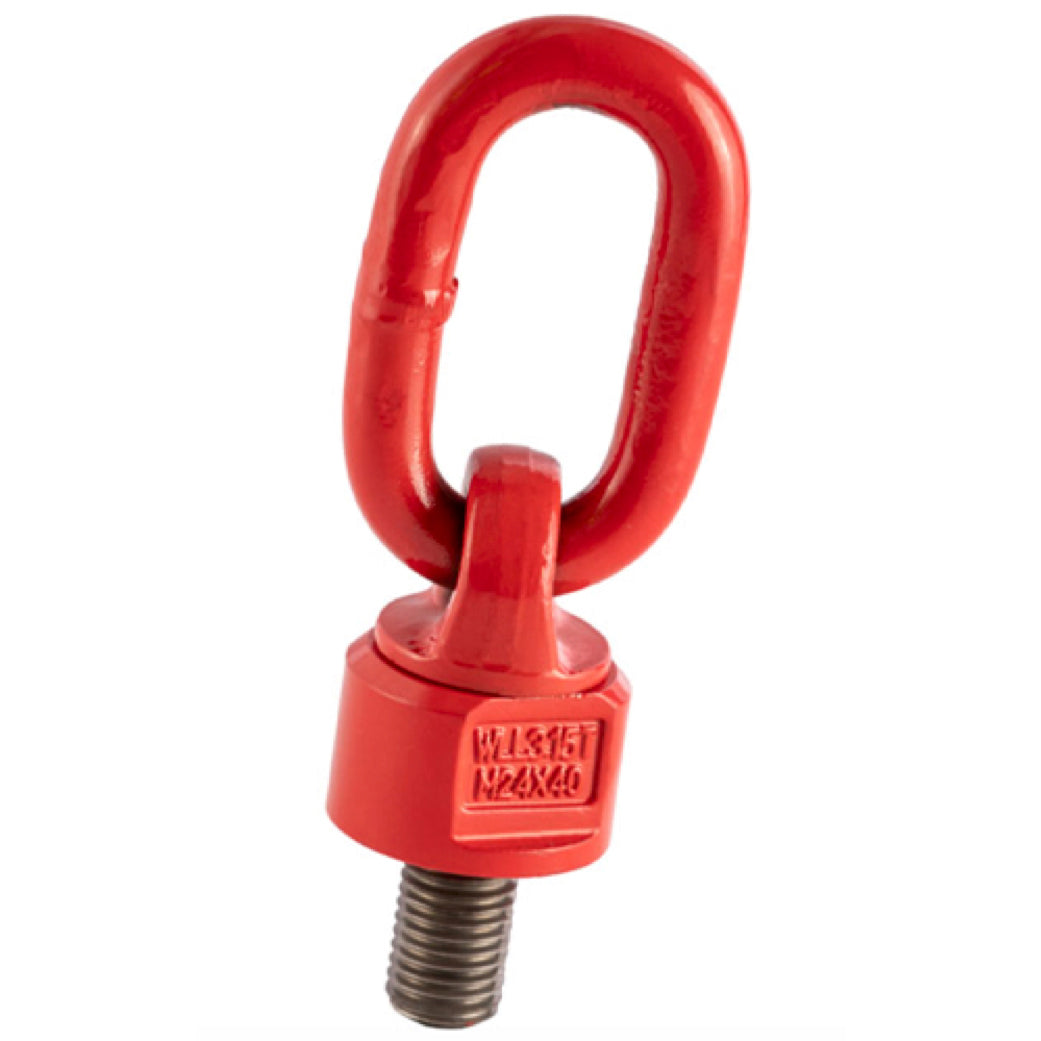

GT Cobra Grade 80 Swivel Lifting Eyebolt with Ring - G80SLP
  • Alloy steel, quenched and tempered.
  • Red painted finish.
  • Minimum breaking load is 4 times the W.L.L.
  • Marked with CE, W.L.L, material grade, manufacturers ID and size.
  • Not suitable for rotation under load.
  • Certification available  DoC


      Spec

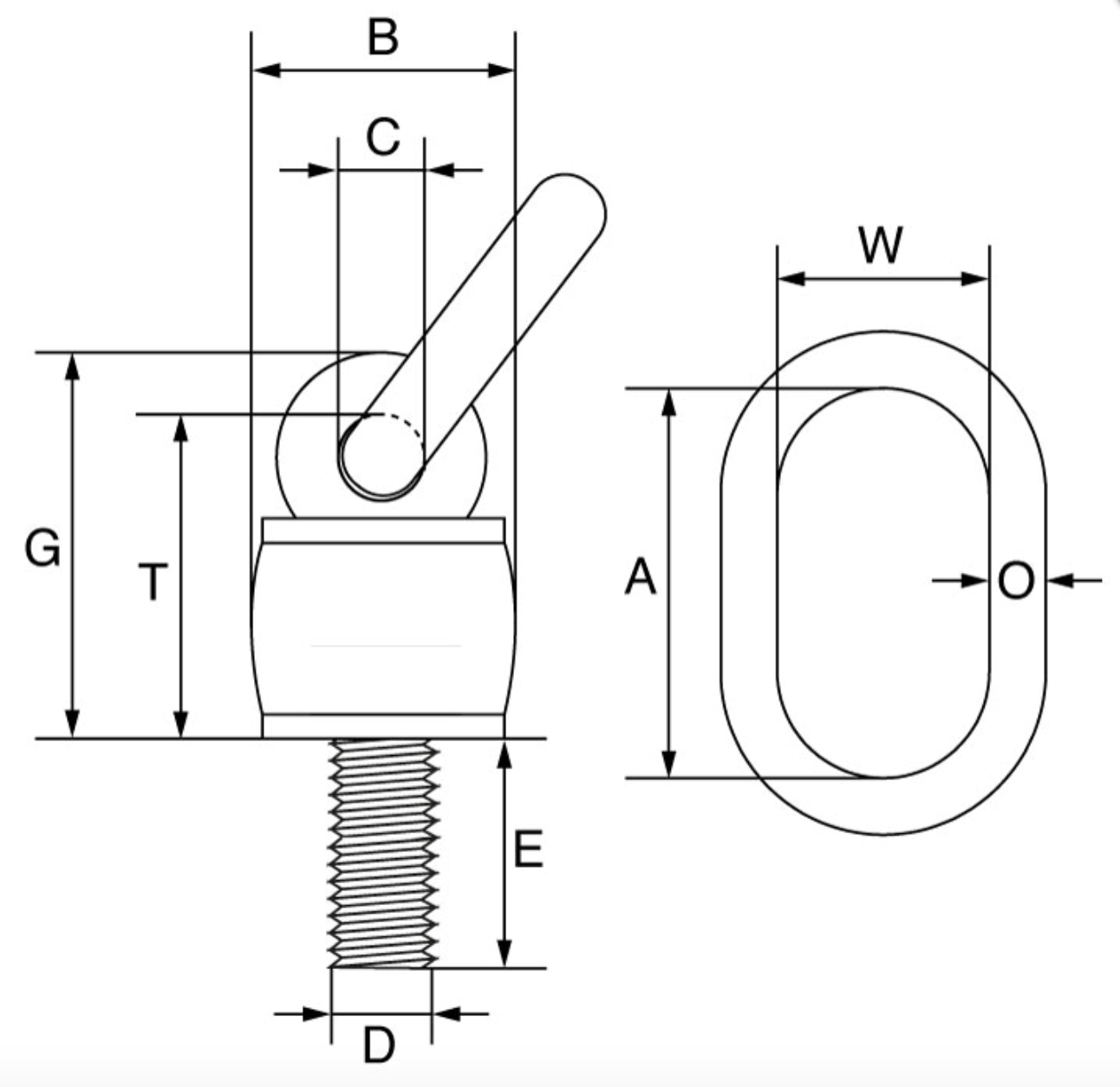

      SKU Product Code Part No. W.L.L 0° W.L.L 90° D x E A B C G O T W Torque Weight
      t t mm mm mm mm mm mm mm mm Nm kgs
      286-604-1 G80SLP813 SLR303-M8 0.6 0.3 M8 x 13 55 36 16.5 51 14 41 30 10-15 0.45
      286-604-2 G80SLP1018 SLR303-M10 1 0.5 M10 x 18 55 36 16.5 51 14 41 30 10-15 0.45
      286-604-3 G80SLP1090 SLR303-M10x90 1 0.5 M10 x 90 55 36 16.5 51 14 41 30 10-15 0.5
      286-604-4 G80SLP1218 SLR303-M12 1 0.5 M12 x 18 55 36 16.5 51 14 41 30 10-15 0.46
      286-604-5 G80SLP12110 SLR303-M12x110 1 0.5 M12 x 110 55 36 16.5 51 14 41 30 10-15 0.54
      286-604-6 G80SLP1620 SLR303-M16 2.24 1.12 M16 x 20 55 36 16.5 52 14 42 30 20-30 0.47
      286-604-7 G80SLP16120 SLR303-M16x120 2.24 1.12 M16 x 120 55 36 16.5 52 14 42 30 20-30 0.63
      286-604-8 G80SLP2030 SLR303-M20 4 2 M20 x 30 70 49.5 19 68 16 56 35 50-70 0.99
      286-604-9 G80SLP20120 SLR303-M20x120 4 2 M20 x 120 70 49.5 19 68 16 56 35 50-70 1.12
      286-604-10 G80SLP2440 SLR303-M24 6.3 3.15 M24 x 40 85 57 22 78 18 65.5 40 130-160 1.36
      286-604-11 G80SLP24120 SLR303-M24x120 6.3 3.15 M24 x 120 85 57 22 78 18 65.5 40 130-160 1.65
      286-604-12 G80SLP3045 SLR303-M30 10.6 5.3 M30 x 45 85 66 23.5 96.5 22 80.5 40 200-250 2.36
      TBC G80SLP30120 SLR303-M30x120 10.6 5.3 M30 x 120 85 66 23.5 96.5 22 80.5 40 200-250 2.77
      TBC G80SLP3650 SLR303-M36 12.8 8 M36 x 50 115 80 27 109 22 89.5 50 280-400 3.88
      TBC G80SLP36140 SLR303-M36x140 12.8 8 M36 x 140 115 80 27 109 22 89.5 50 280-400 4.6
      TBC G80SLP4260 SLR303-M42 16 10 M42 x 60 115 80 27 109 25 89.5 50 500-600 4.56
      TBC G80SLP42160 SLR303-M42x160 16 10 M42 x 160 115 80 27 109 25 89.5 50 500-600 5.65
      TBC G80SLP4560 SLR303-M45 16 10 M45 x 60 115 80 27 109 25 89.5 50 500-600 4.7
      TBC G80SLP4872 SLR303-M48 16 10 M48 x 72 115 80 27 109 25 89.5 50 500-650 4.9
      TBC G80SLP48160 SLR303-M48x160 16 10 M48 x 160 115 80 27 109 25 89.5 50 500-650 6.18
      TBC G80SLP5684 SLR303-M56 24 15 M56 x 84 152 117 42 246 32 214 70 600-900 11.8
      TBC G80SLP6495 SLR303-M64 24 15 M64 x 95 152 117 42 257 32 225 70 600-900 12.5
