GT Cobra Grade 80 Swivel Hoist Ring

£34.51

SKU :286-603-1

Diameter
Length/W.L.L.

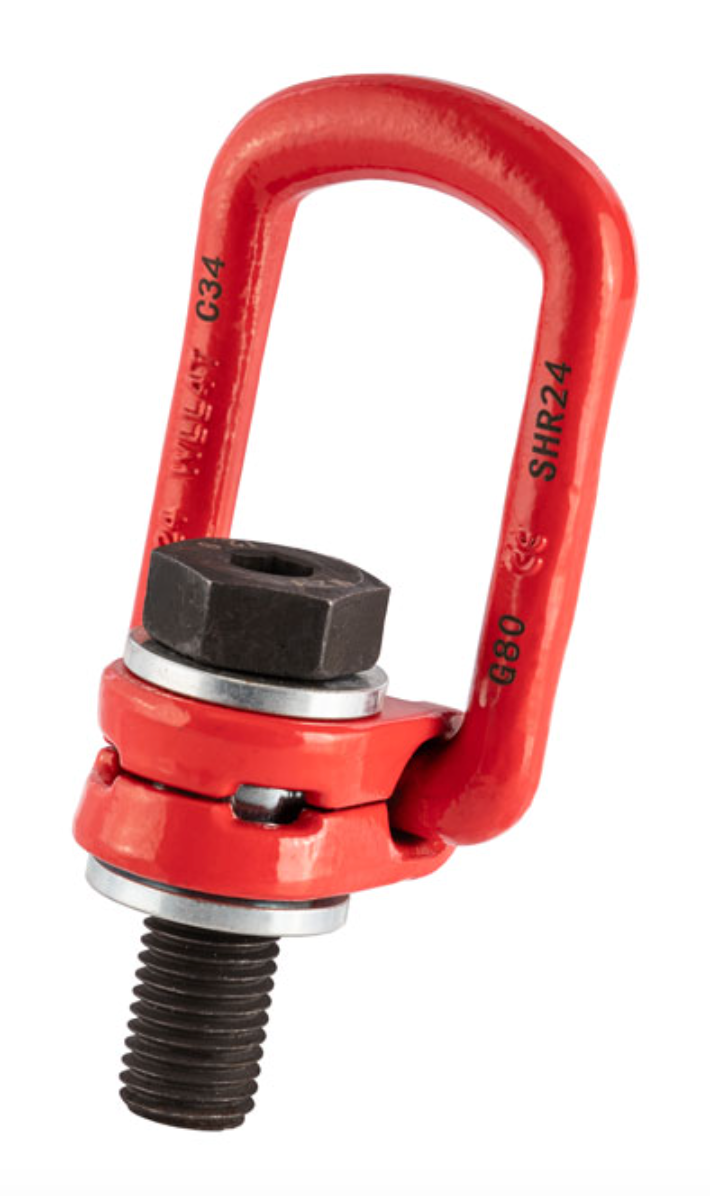

GT Cobra Grade 80 Swivel Hoist Ring - G80SHR
  • Alloy steel.
  • Red painted finish.
  • Minimum breaking load is 4 times the W.L.L.
  • Marked with CE, W.L.L, material grade, manufacturers ID and size.
  • Not suitable for rotation under load.
  • Certification available EC DoC


      Spec

      SKU  Product Code Part No. W.L.L. A B C D K L M S SW Ø Torque Weight
      t mm mm mm mm mm mm mm mm mm mm Nm kgs
      286-603-1 G80SHR8 SLR-173-M8 0.3 8 52.5 35 30 11 46 55 6 13 14 10-15 0.36
      286-603-2 G80SHR10 SLR-173-M10 0.63 10 52.5 35 30 16 52 55 6 17 14 10-15 0.38
      286-603-3 G80SHR12 SLR-173-M12 1 12 54 40 36 18 62 68 8 19 18 10-15 0.71
      286-603-4 G80SHR14 SLR-173-M14 1.2 14 54 40 36 21 66 68 8 22 18 20-30 0.72
      286-603-5 G80SHR16 SLR-173-M16 1.5 16 54 40 36 24 70 68 8 24 18 20-30 0.74
      286-603-6 G80SHR20 SLR-173-M20 2.5 20 80 54 50 30 88 83 12 30 16 50-70 1.19
      286-603-7 G80SHR24 SLR-173-M24 4 24 94 54 50 36 100 83 14 36 18 130-160 1.38
      286-603-8 G80SHR27 SLR-173-M27 4 27 106 73 68 38 120 120 17 41 27 180-220 4.18
      286-603-9 G80SHR30 SLR-173-M30 5 30 106 73 68 48 132 120 17 41 27 200-250 4.4
      286-603-10 G80SHR36 SLR-173-M36 8 36 140.5 94 86 62 163 156 22 55 31 280-400 7.6
      286-603-11 G80SHR42 SLR-173-M42 15 42 155 104 95 74 194 176 24 65 40 500-600 12.4
      286-603-12 G80SHR48 SLR-173-M48 20 48 155 104 95 74 194 176 27 75 40 500-650 20
