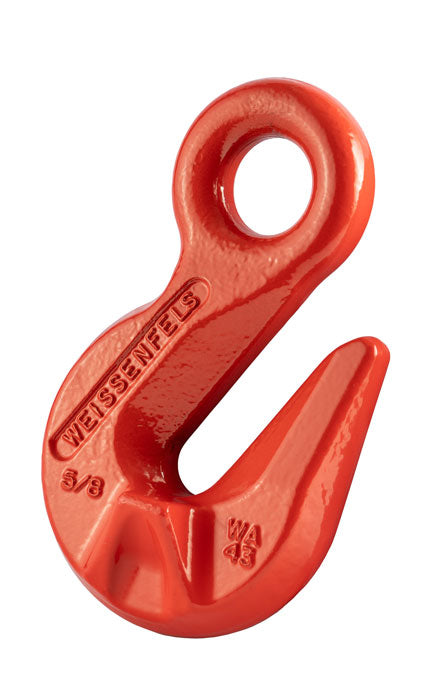

Grade 8 Eye Type Grab Hook to BS-EN 1677-1

£5.52

SKU :286-22-1

Diameter
  • Alloy steel, quenched and tempered.
  • Red painted finish.
  • Conforms to BS EN 1677-1.
  • Temperature range: -40 °C to +400 °C (Reductions in W.L.L apply).
  • Our grab hooks can be used as a shortening device without any reduction of SWL of the chain sling capacity.
  • The ‘T’ shape in the bowl of the hook supports the chain and helps prevent possible deformation of the link when used as a shortening device.
  • Certification available  2.1    3.1   DoC



26/32mm size is Cartec brand



Spec

Product Code Chain Dia Part No. E F G H O R
mm mm mm mm mm mm mm
G8EGH8 7/8 WA40 10 15.5 30 24 10 60
G8EGH10 10 WA41 12 20.5 44 32 13 80
G8EGH13 13 WA42 16 25 53 38 17 104
G8EGH16 16 WA43 20 31 64 45 20 114
G8EGH20 20 WA44 24 36 85 53 23 135
G8EGH22 22 WA45 25 41 97 62 27 158
G8EGH26* 26 CD26 36 55 100 90 30.5 213
G8EGH32* 32 CD32 44 59 160 112 38.5 245



Technical Data

Chain Dia W.L.L. M.P.F. M.B.F. Packing Qty Weight
mm t kN kN kgs
7/8 2 50.3 80.4 40 0.3
10 3.15 78.5 126 16 0.6
13 5.3 133 212 10 1.3
16 8 201 322 8 2.2
20 12.5 314 503 1 4
22 15 380 608 1 5.8
26 21.2 520 832 1 13
32 31.5 772 1,240 1

30.5
