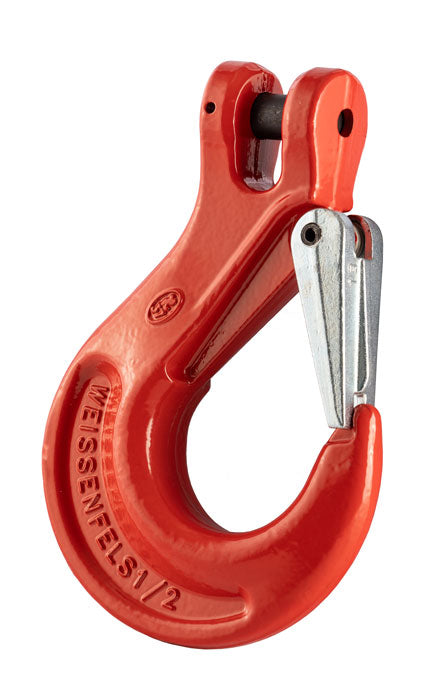

Grade 8 Clevis Sling Hook with Safety Catch to BS-EN 1677-2

£13.24

SKU :286-19-1

Diameter
  • Alloy steel, quenched and tempered.
  • Red painted finish.
  • Conforms to BS EN 1677-3.
  • Temperature range -40°C to +400°C (Reductions in W.L.L apply).
  • Clevis fitting enables direct connection to chain
  • Supplied with EC Declaration of Conformity

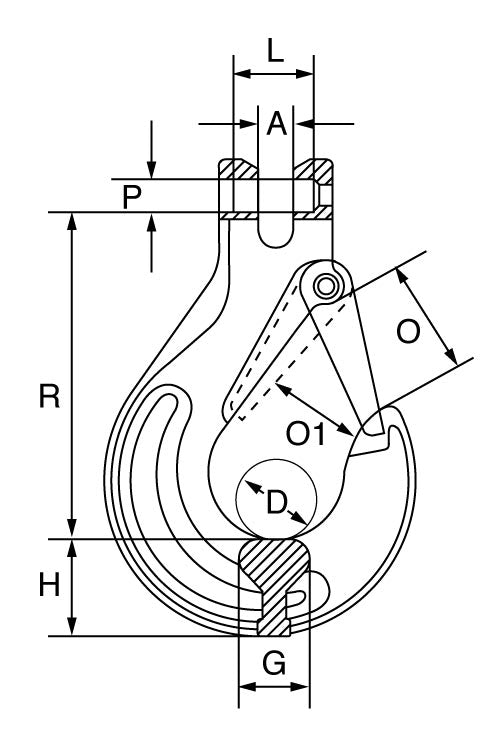

Spec

SKU Product Code Chain Dia Part No. A D G
H
O
O1 R
P X L
mm mm mm mm mm mm mm mm mm
286-19-1 G8CSH6 6 WA79S 7
18
16.5
20
25
19
69
7.4 x 16.5
286-19-2 G8CSH8 7/8 WA80S
9
25
19
28
32
26
94.5
9.6 x 23
286-19-3 G8CSH10 10 WA81S
11.5
30
25
33
39
31
109
12.5 x 29.5
286-19-4 G8CSH13 13 WA82S
14.5
3838
30
40
48
39
135
16 x 38
286-19-5 G8CSH16 16 WA83S
17.5
44
37
47
55
45
155
20 x 52
286-19-6 G8CSH20 20 WA84S 23 52 51 52 61 53 183 24 x 73
286-19-7 G8CSH22 22 WA85S 24.5 60 50 62 71 61 212 27 x 71



Technical Data

SKU Chain Dia W.L.L. M.P.F. M.B.F. Weight
mm t kN kN kgs
286-19-1 6  1.12 28.3 45.2 0.27
286-19-2 7/8  2 50.3 80.4 0.53
286-19-3 10  3.15 78.5 126 0.95
286-19-4 13  5.3 133 212 1.67
286-19-5 16  8 201 322 3
286-19-6 20 12.5 248 498 5.4
286-19-7 22 15 298 596 7
