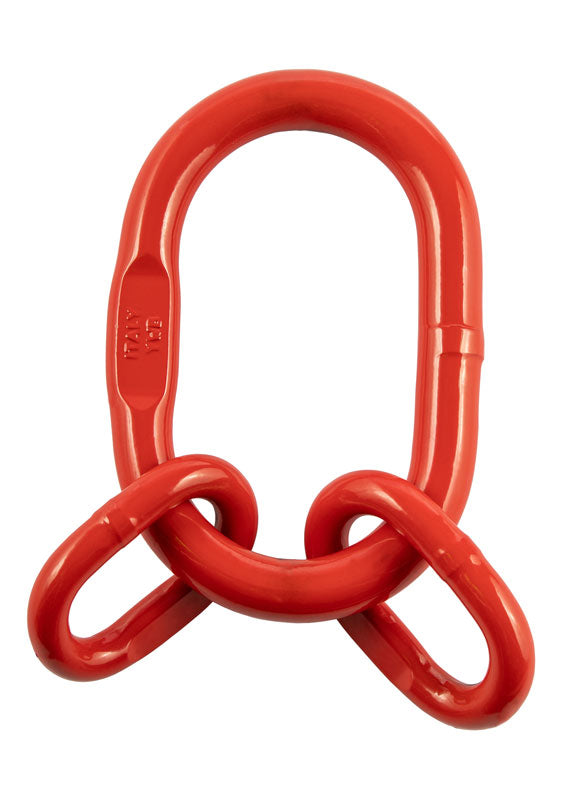

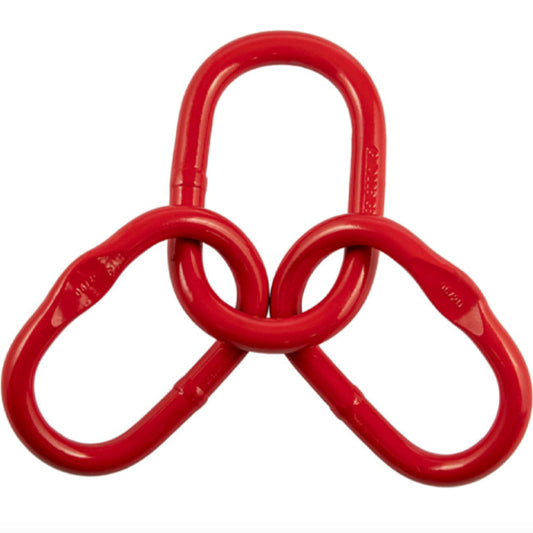

Grade 8 Quad Master Link Assembly to BS-EN 1677-4

£24.49

SKU :286-12-1

WLL
  • Alloy steel, quenched and tempered.
  • Red painted finish.
  • Conforms to BS EN 1677-4.
  • Temperature range:  -40 °C to +400 °C (Reductions in W.L.L apply).
  • Suitable for use with Grade 8 Chains and wire/fibre rope slings.
  • Designed for use with 3 or 4 leg slings.
  • T ranges have large inside widths & lengths to allow for sling hardware and crane hooks.
  • Certification available  2.1    3.1   DoC



Spec

Product Code Part No. D1 L1 W1 D2 L2 W2 W.L.L. M.P.F. M.B.F. Weight
mm mm mm mm mm mm t kN kN kgs
G8QA7T T7-8 20 160 95 15 120 70 4.15 102 163 2.21
G8QA8T T8-8 23 160 110 16 140 80 5.35 132 210 3.03
G8QA10T T10-8 27 190 110 20 160 95 9.4 231 369 5.07
G8QA13T T13-8 33 230 130 27 190 110 14.2 348 557 10.08
G8QA16T T16-8 38 275 150 33 230 130 22.3 547 875 17.06
G8QA20T T20-8 45 340 180 38 275 150 33.4 819 1,310 27.8
G8QA22T T22-8 50 350 190 45 340 180 40.3 988 1,580 42.2
G8QA7W W7-8 19 135 75 13 60 38 3.15 77.2 124 1.35
G8QA8W W8-8 23 160 90 16 70 34 4.25 104 167 2.32
G8QA10W W10-8 27 180 100 18 85 40 6.7 164.3 262.8 3.58
G8QA13W W13-8 33 200 110 23 115 50 11.2 275 439 6.57
G8QA16W W16-8 36 260 140 27 140 65 17 417 667 10.3
G8QA20W W20-8 45 340 180 33 150 70 26.5 650 1,040 19.3
G8QA22W W22-8 50 350 190 36 170 75 31.5 772 1,236 25.1
