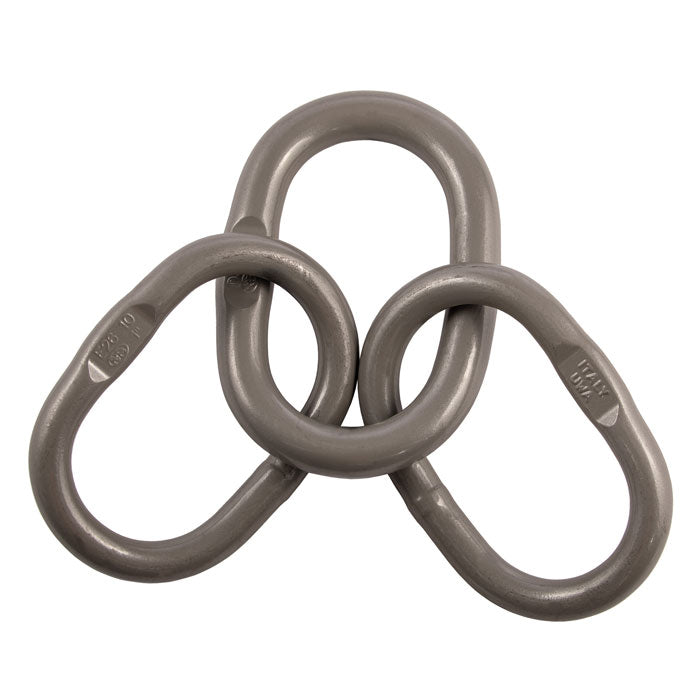

Grade 10 Quad Master Link Assembly - DE Series
- Grade 10 alloy steel, quenched and tempered.
- Grey painted finish.
- Meets the performance requirements of BS EN 1677-4 +25% of loads.
- Suitable for use with grade 10 chains and wire/fibre rope slings.
- Oversized sub links.
- Marked with material grade, manufacturers ID, size, product ID mark and traceability code.
- Link with flat available on request (DEF series).
- Certification available 2.1 DoC
Spec
| SKU |

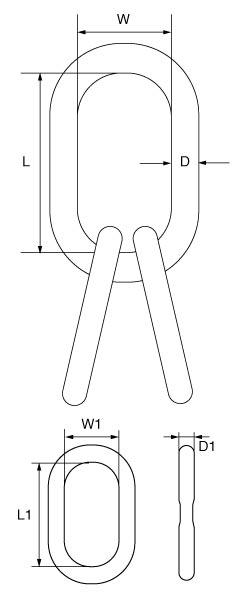

Part No. | Chain Dia 3-4 legs | W.L.L. | M.P.F. | M.B.F. | D | L | W | D1 | L1 | W1 | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| mm | t | kN | kN | mm | mm | mm | mm | mm | mm | kgs | ||
| 286-213-1 |
D18E14 | 7 | 5.05 | 123.8 | 198.1 | 19 | 135 | 75 | 15 | 120 | 70 | 1.94 |
| 286-213-2 |
D22E16 | 8 | 6.95 | 170.4 | 272.6 | 23 | 160 | 90 | 17 | 140 | 80 | 3.12 |
| 286-213-3 |
D26E20 | 10 | 10.4 | 255 | 408 | 27 | 180 | 100 | 20 | 160 | 95 | 4.92 |
| 286-213-4 |
D32E26 | 13 | 18 | 441 | 706 | 33 | 200 | 110 | 27 | 190 | 110 | 9.5 |
| 286-213-5 |
D38E32 | 16 | 27.7 | 679 | 1,087 | 38 | 275 | 150 | 33 | 230 | 130 | 17 |
| 286-213-6 |
D50D38 | 19/20 | 41.55 | 1,020 | 1,630 | 50 | 350 | 250 | 38 | 275 | 150 | 32.6 |
