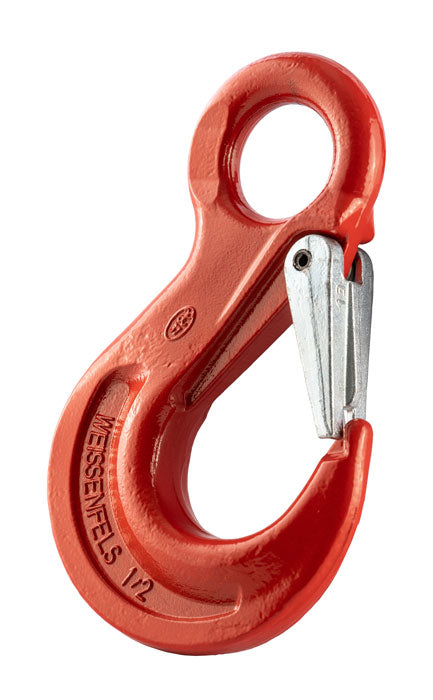

Grade 8 Eye Sling Hook with Safety Catch to BS-EN 1677-2

£9.42

SKU :286-20-9

Diameter
  • Alloy steel, quenched and tempered.
  • Red painted finish.
  • Conforms to BS EN 1677-2.
  • Supplied with EC Declaration of Conformity



Spec

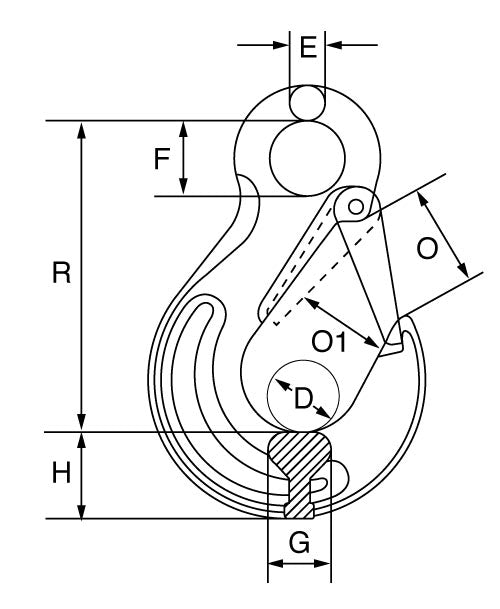

Product Code Chain Dia Part No. D E F G H O O1 R
mm mm mm mm mm mm mm mm mm
G8ESH6 6 WA29S 18 10 20 16.5 21 25 19 84.5
G8ESH8 7/8 WA30S 24 11 25 19 27 32 25 106
G8ESH10 10 WA31S 30 16 34 26 33 40 31 131
G8ESH13 13 WA32S 38 19 43 33 42 48 39 164
G8ESH16 16 WA33S 44 25 50 40 50 55 45 182.5
G8ESH20 20 WA34S 53 27 55 48 54 61 54 205
G8ESH22 22 WA35S 60 30 60 50 61 71 61 225
G8ESH26 26 WA36S 72 36 70 60 69 84 73 265
G8ESH32 32 WA37S 80 39 76 71 89 95 87 259



Technical Data

Product Code W.L.L. M.P.F. M.B.F. Weight
t kN kN kgs
G8ESH6 1.12 28.3 45.2 0.24
G8ESH8 2 50.3 80.4 0.5
G8ESH10 3.15 78.5 126 0.9
G8ESH13 5.3 133 212 1.5
G8ESH16 8 201 322 2.75
G8ESH20 12.5 314 503 4.9
G8ESH22 15 380 608 8.8
G8ESH26 21.2 520 849 13.8
G8ESH32 31.5 772 1,240 27
