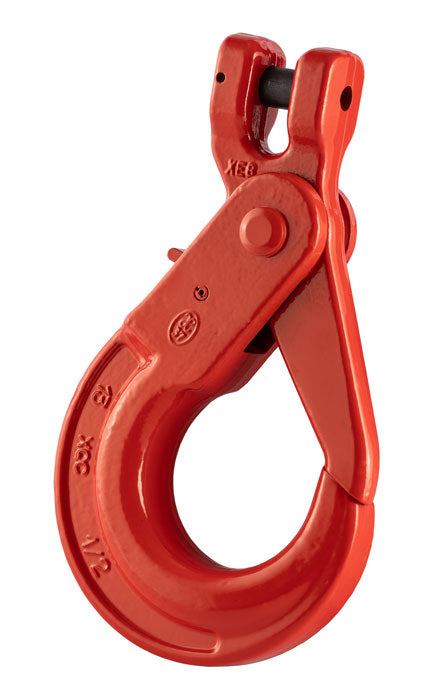

Grade 8 Clevis Self Locking Hook to BS-EN 1677-3

£31.55

SKU :286-14-2

Diameter
  • Alloy steel, quenched and tempered.
  • Red painted finish.
  • Conforms to BS EN 1677-3.
  • Temperature range: -40 °C to +400 °C (Reductions in W.L.L apply).
  • Clevis fitting enables direct connection to chain.
  • Certification available  2.1    3.1   DoC



Spec

Product Code Chain Dia Part No. A D G H O R PxL
mm mm mm mm mm mm mm mm
G8CSLH6 6 SNC6 6.7 35 16 20.5 28 94 7.4 x 16.5
G8CSLH8 7/8 SNC7-8 8.5 43.5 20 26 34 123 9.6 x 23
G8CSLH10 10 SNC10 12 56 24.5 30 45 143.5 12.5 x 29.5
G8CSLH13 13 SNC13 15 69 34.5 40 51.5 179.5 16 x 37
G8CSLH16 16 SNC16 19 80 35.5 50 60 217 20 x 52




Technical Data

Chain Dia W.L.L. M.P.F. M.B.F. Weight
mm t kN kN kgs
6 1.12 28 44.8 0.5
7/8 2 50.3 80.4 0.96
10 3.15 78.5 126 1.6
13 5.3 133 212 3.13
16 8 201 322 5.8

Downloads

  Duct rod data sheetProduct data sheet
