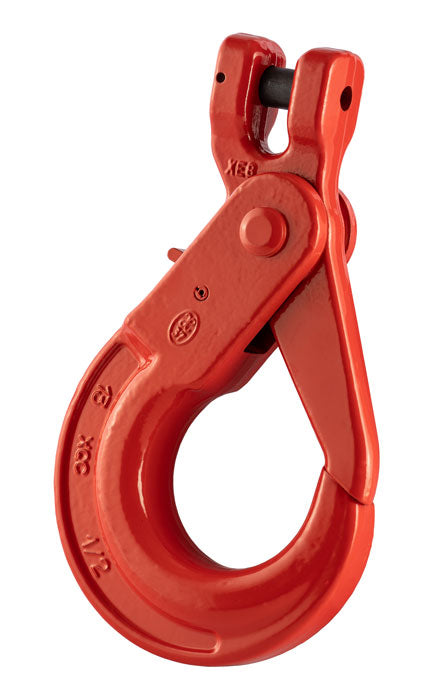

Grade 8 Clevis Self Locking Hook (103 Series) to BS-EN 1677-3
£42.86
SKU :286-15-1
- Alloy steel, quenched and tempered.
- Red painted finish.
- Conforms to BS EN 1677-3.
- Temperature range -40°C to +400°C (Reductions in W.L.L apply).
- Clevis fitting enables direct connection to chain.
- Certification available 2.1 3.1 DoC
Spec
| Product Code | Chain Dia | Part No. | C | D | E | F | G | H | L | M |
|---|---|---|---|---|---|---|---|---|---|---|
| mm | mm | mm | mm | mm | mm | mm | mm | mm | ||
| G8CSLHL8 | 7/8 | 103-7/8 | 20 | 33 | 25 | 10 | 28 | 45 | 122 | 165 |
| G8CSLHL10 | 10 | 103-10 | 27 | 44 | 35 | 12.5 | 35 | 58 | 151 | 207 |
| G8CSLHL13 | 13 | 103-13 | 31 | 54.5 | 40 | 16 | 38 | 71 | 184 | 255 |
| G8CSLHL16 | 16 | 103-16 | 40 | 67 | 52 | 20 | 50 | 84 | 212 | 300 |
| G8CSLHL20 | 20 | 103-20 | 48 | 90 | 62 | 24 | 80 | 90 | 243 | 340 |
Technical Data
| Chain Dia | W.L.L. | M.P.F. | M.B.F. | Weight |
|---|---|---|---|---|
| mm | t | kN | kN | kgs |
| 7/8 | 2 | 50.3 | 80.4 | 0.93 |
| 10 | 3.15 | 78.5 | 126 | 1.73 |
| 13 | 5.3 | 133 | 212 | 3.1 |
| 16 | 8 | 201 | 322 | 6 |
| 20 | 12.5 | 314 | 503 | 7.5 |
