Forestry Kit 2- 1000kg Portable Winch Petrol Capstan Winch

£2,099.47

SKU :167-2-4-FK

FOR A MORE COMPACT CHOICE, WOODLOT OWNERS AND OCCASIONAL LOGGERS CHOOSE THE KIT Forestry Kit 1, WHICH INCLUDES THE ALL-POSITION WINCH PCW3000 AS WELL AS A PROTECTIVE CASE AND ACCESSORIES ADAPTED TO EXTRACT LOGS.

The skidding cone (167-18-1) prevents logs from getting stuck in roots, stumps and other obstacles. Its shape allows it to slide along the residual trees, thus avoiding injuries during regeneration. The 10mm x 50m rope allows you to reach trees where they are. The single pulley (167-14-3) will be useful to deviate the load or to double the pulling force when the time comes. Combined with the 1000kg power offered by the winch PCW4000, you will get 2000kg of force!

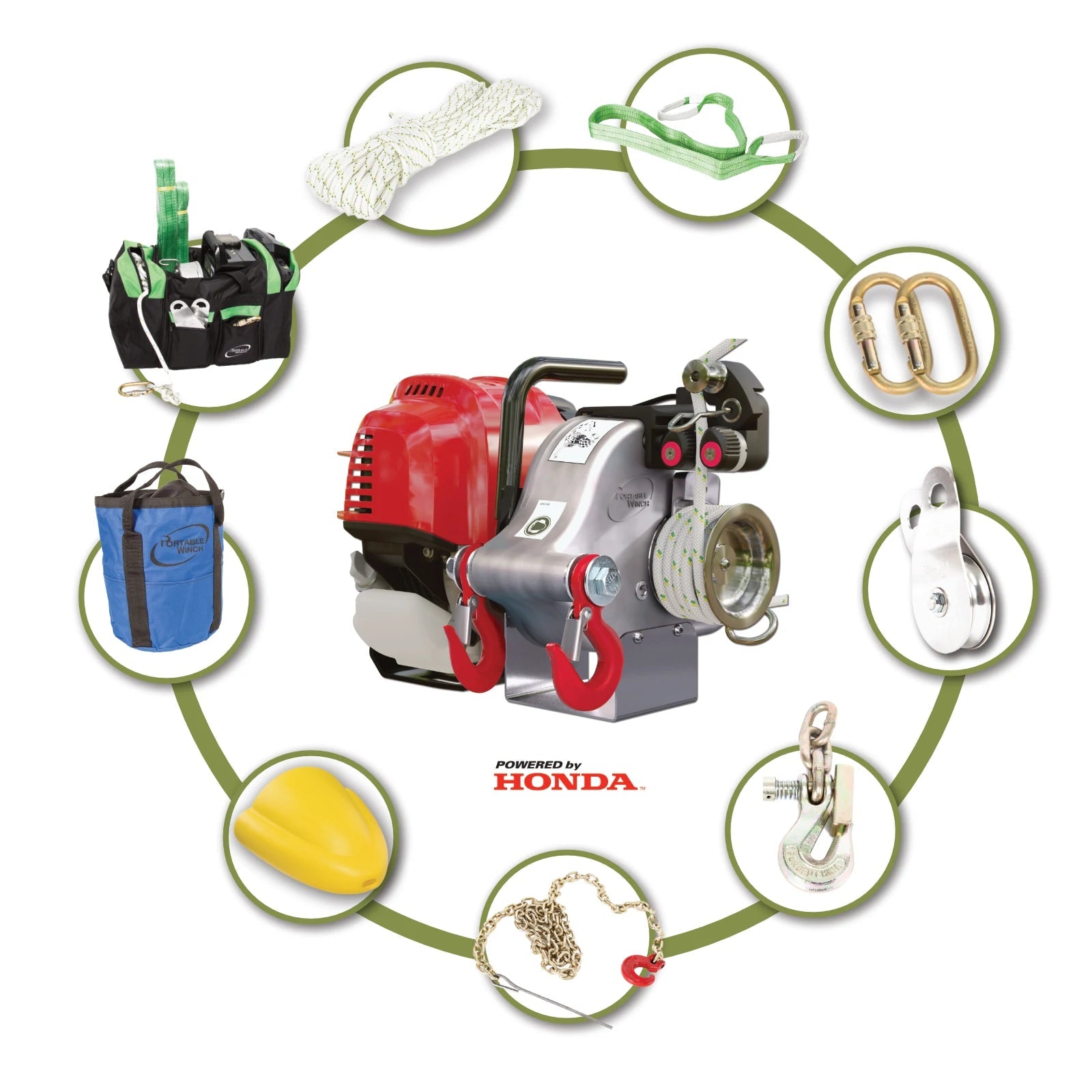

What you get in the kit

SKU Description Quantity
  167-8-1 50m 10mm Pulling Rope ABL=2900kg   1.00
167-2-4 PCW4000 Petrol Pulling Winch 1000kg 1.00
167-14-3 Pulley - Snatch Block 76mm (10mm Rope) SS Single 1.00
167-13-4 Transport Case For PCW3000 & 4000 (Portable Winch) 1.00
167-18-1 Skidding Cone (Portable Winch) - Logs up to 50cm Diameter 1.00
198-5-FP33-26 Portwest - Aluminium Twist Lock Carabiner 2.00
167-15-5 Grab Hook - 7mm (5/16") 1.00
283-2-2 2M 2T. 60mm. Duplex Green Flat WebSling. EN STD 1492-1:2000 1.00
167-12-1 VAULT 25 - 25 Litre Storage Bag - Draw String Top - Blue 1.00
167-18-2 Choker Chain 7mm x 2.1mm (Portable Winch) 1.00

PCW4000 Petrol Pulling Winch 1000kg Ref: 167-2-4

Portable Winch Co. hits once again with the all-new portable capstan winch PCW4000 with quick release automatic anti roll-back device!

This brand-new model is powered by the Honda 360° inclinable 4-stroke engine GX50. It also has a centrifugal clutch that activates when you pull the rope. When the rope is released, the drum stops spinning and the quick release automatic anti rollback device does its job and holds the load in position!

You can also disengage the rope in one simple movement!

A light, powerful, safe and very simple winch to operate. Perfect for all types of work, whether to pull logs, directional felling, pull a big game, get a vehicle out of trouble, pull a boat, a dock or for any other projects, this new winch will be the ideal tool !

QUICK RELEASE AUTOMATIC ANTI ROLL-BACK MECHANISM

The Portable Winch Co. engineering team strikes again by designing this simple and ingenious device!

As soon as you pull the rope that goes through the ARM, the centrifugal clutch activates, and the winch begins to pull. As soon as the rope is released, the drum stops rotating and the automatic mechanism does its job by holding the load in position! Disengage the rope in one simple movement! Nothing is easier.

HONDA 4-STROKE GX50 360° INCLINABLE ENGINE

This Honda's GX50 engine offers high output and light weight with excellent fuel efficiency. It's the first Honda four-stroke model in the two-horsepower class that is 360-degrees inclinable during operation and storage. Among its many features, smooth performance, proven reliability, easy starting, easy to use and maintain and emissions compliant!

*Accessories sold separately.

*Note: One (1) anchor polyester sling 60 mm x 2 m is always included with every winch

WARRANTY
Private use : 2 years
Commercial use : 1 year
Engine/Motor : Honda International Warranty

Additional information : Register your winch at www.portablewinch.com and get 1 EXTRA YEAR of warranty for FREE !


Spec

PCW3000 Petrol Pulling Winch 700kg Ref: 167-2-1

Manufacturer PORTABLE WINCH
Max Pull Capacity 700kg
Max Lifting Capacity Not Rated For Lifting
Installed Capstan Size 76mm
Speed with Installed Capstan 10 m/min
Rope Size Min 10mm | Max 16mm | Ideal 10mm
Engine/Motor Honda 4-stroke GX-35 cc
Gear Ratio 200:1
Dry Weight 9.5kg
GTIN / EAN13 690581001970
