Tree / Pole Mount HD Winch Anchor for Portable Winch


SKU :167-16-6

Portable Winch

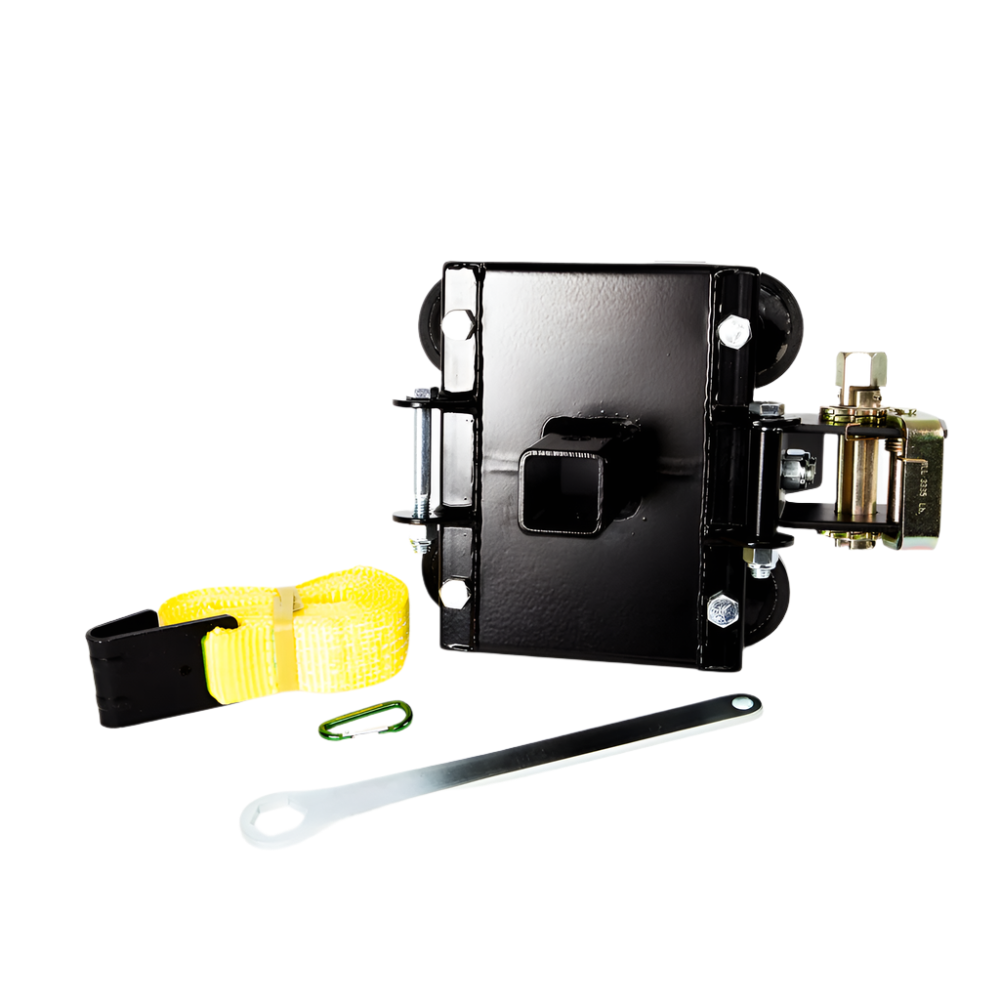

Tree / Pole Mount HD Winch Anchor Ref: 167-16-6

This anchoring system allows the winch to be anchored to a tree or a post, which facilitates extended use from a fixed point. In fact, when it is used with the winch support plate (PCA-1268), the winch can be set up at a comfortable height and the pivoting support automatically lines up with the load.

It is also used for the vertical pulling of cables or even lifting. To do this, you must also have the winch support for vertical pulling (PCA-1264).

The four rubber pads prevent the system from slipping on a post and protects the bark of trees.

Can be used with the following winch models:

  • PCW3000
  • PCW3000-Li
  • PCW5000
  • PCW5000-HS


Material :  Powder coated steel


Weight (metric) : 8,2 kg
Length (metric) : 32 cm
Width (metric) : 27 cm


Additional Information : Comes with a 3 m (118-1/8'') strap and an hex key for the ratchet system.
Additional information : Tree or pole diameter: from 30 cm to 91 cm (12'' to 36'').

GTIN / EAN13 690581000164
