Cartec Grade 6 Dee Shackle with Screw Collar Pin

In stock
SKU: 286-317-1
Regular price $20.00 USD
W.L.L.

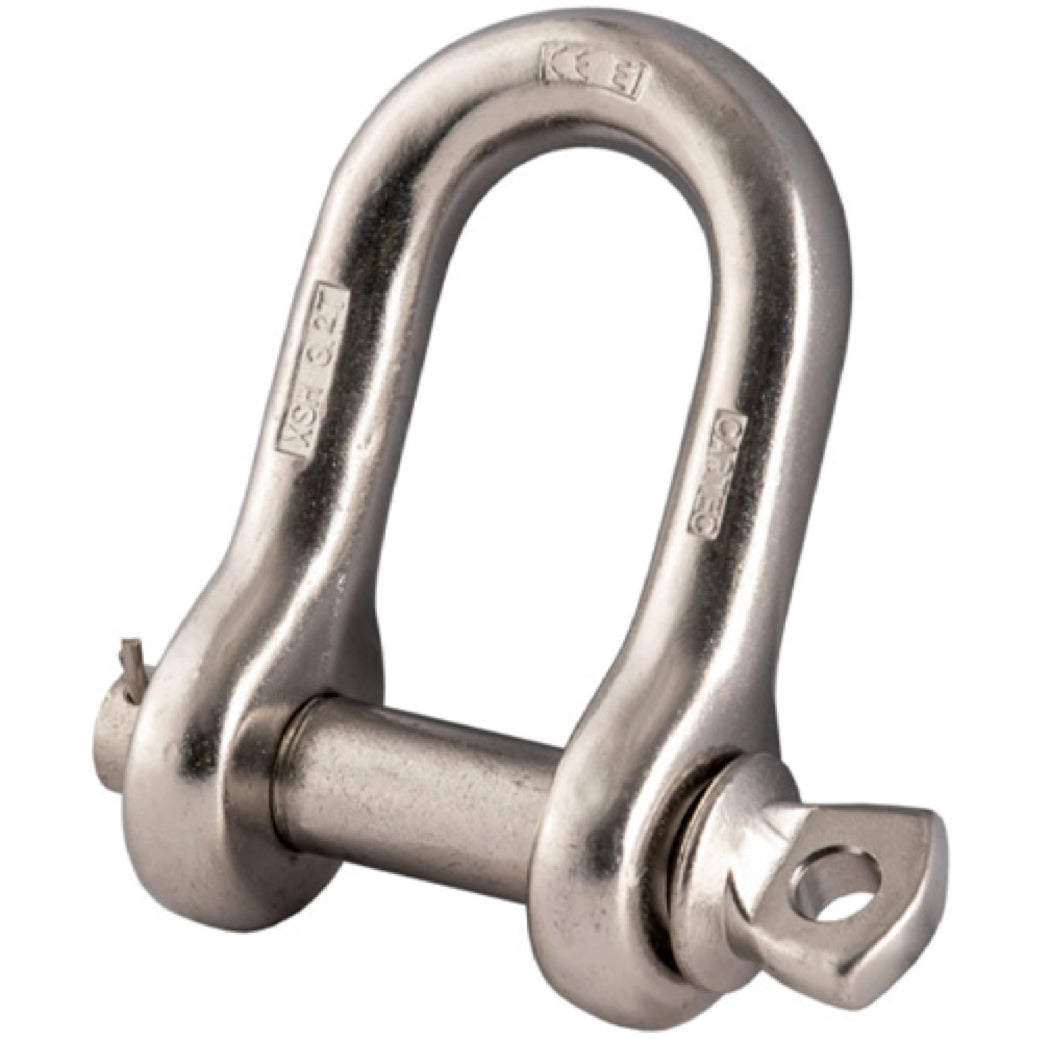

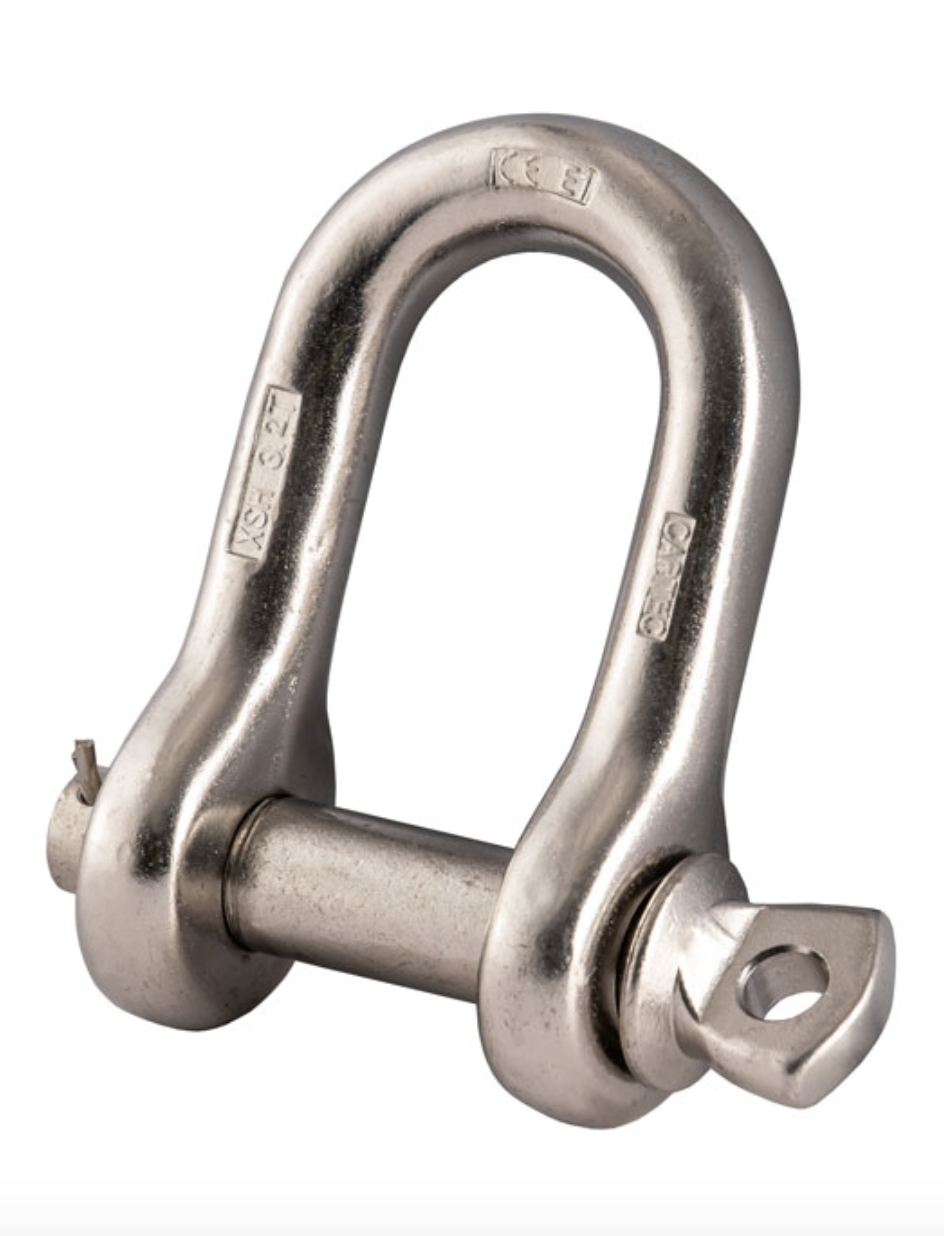

Grade 6 Dee Shackle with Screw Collar Pin
  • Grade 6, stainless steel, AISI 316L.
  • Surface blasted, uniform smooth finish.
  • Marked with CE, W.L.L, manufacturers ID, product ID mark and traceability code.
  • Full CAD support available upon request.
  • Certification available

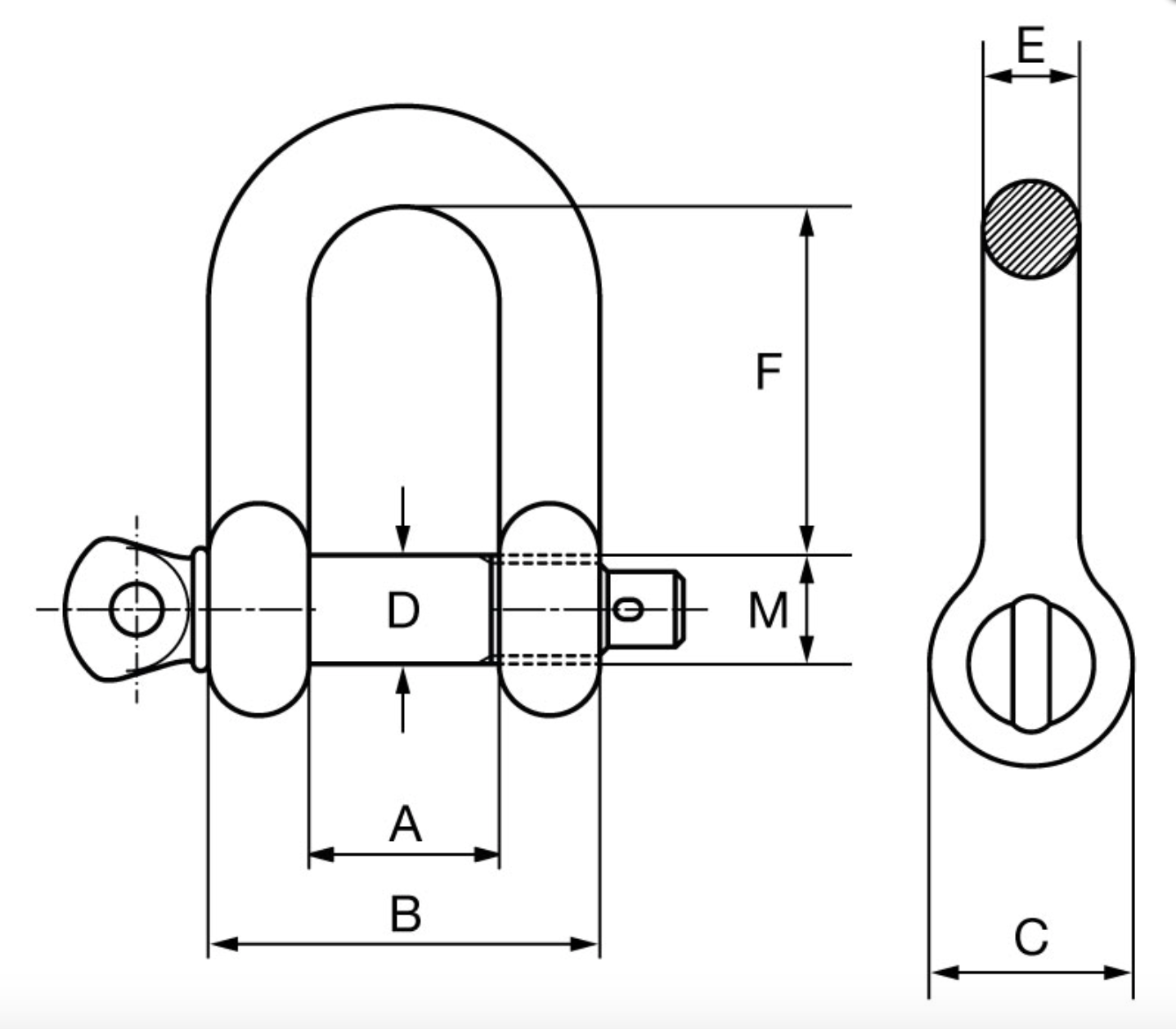

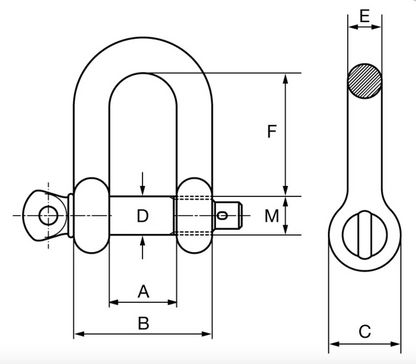

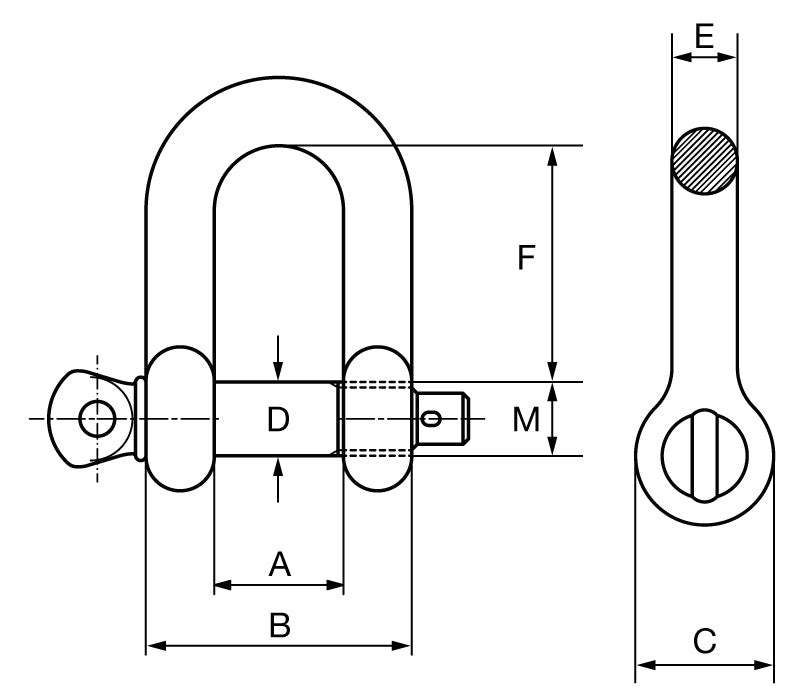

      Spec

      SKU Part No. A B C D E F M
      mm mm mm mm mm mm mm
      286-317-1 C6XSH005 18 34 18 9 8 33 M10
      286-317-2 C6XSH012 25 49 25 13 12 40 M14
      286-317-3 C6XSH020 32 64 32 17 16 60 M18
      286-317-4 C6XSH032 41 79 47 21 19 78 M22
      286-317-5 C6XSH050 56 106 60 29 25 109 M30
      286-317-6 C6XSH120 76 144 75 38 34 152

      M39




      SKU W.L.L. M.P.F. M.B.F. Weight
      t kN kN kgs
      286-317-1 0.5 10 20 0.07
      286-317-2 1.25 25 50 0.22
      286-317-3 2 40 79 0.52
      286-317-4 3.2 63 126 0.8
      286-317-5 5 99 197 2.2
      286-317-6 13 256 511 7
