Green Pin Grade 6 Bow Shackles with Screw Collar Pin

Name: Green Pin Grade 6 Bow Shackles with Screw Collar Pin
Brand: Green Pin
SKU: 269-2-1
Price: 4.56 GBP
Availability: InStock
Rating: 5.0 (1 reviews)

Green Pin SKU: 269-2-1

1 3

Green Pin Standard Bow Shackles with Screw Collar Pin Green Pin Model G-4161 Grade 6 high tensile steel body and pin, quenched and tempered. Hot dipped galvanised. Conforms to BS EN 13889 (from... Read More

£4.56

Sale TODAY'S PRICE £4.56

In stock (46)

Tax included. Shipping calculated at checkout.

Product variants

Quantity

Buy from our EU store

View more green pin grade 6 standard shackles

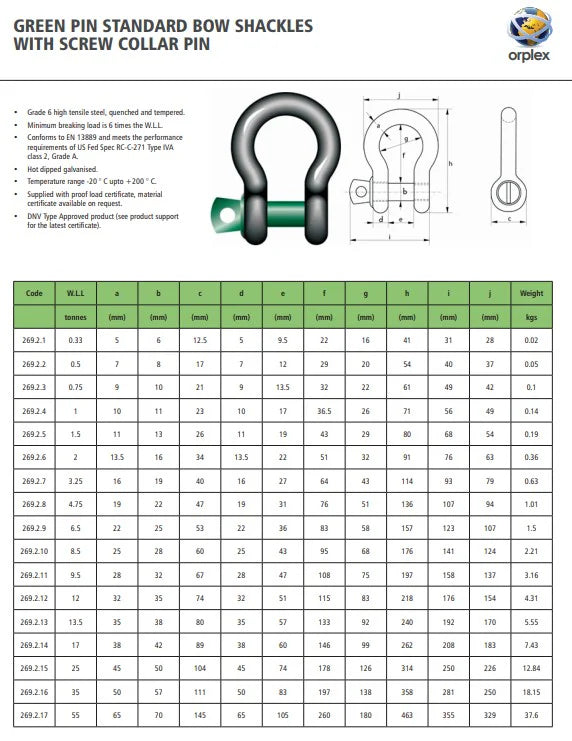

Description

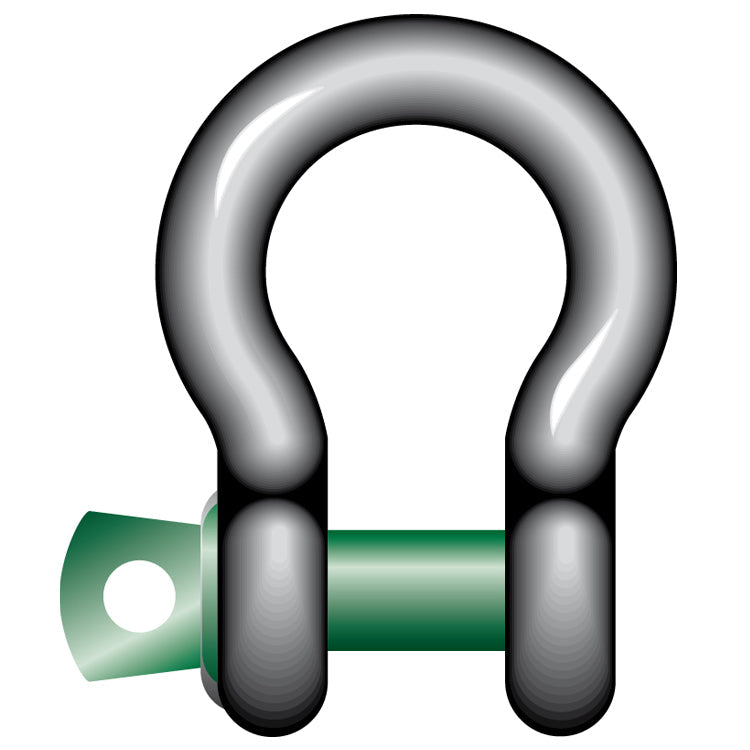

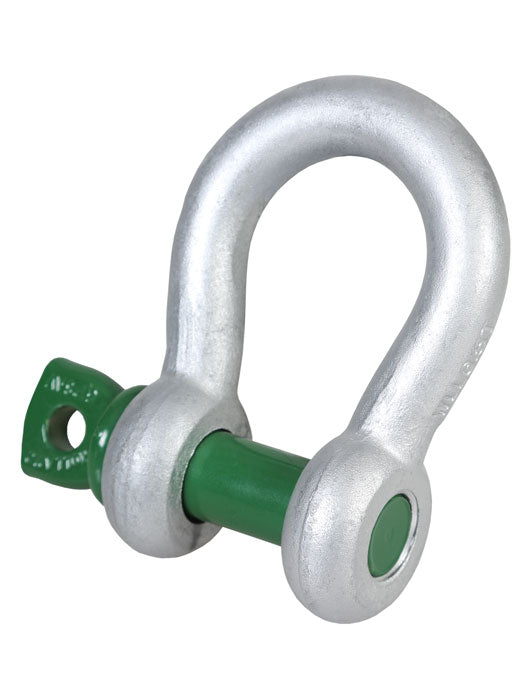

Green Pin Standard Bow Shackles with Screw Collar Pin

Green Pin Model G-4161
Grade 6 high tensile steel body and pin, quenched and tempered.
Hot dipped galvanised.
Conforms to BS EN 13889 (from 0.5t to 25t) and meets the performance requirements of US Fed. Spec. RR-C-271 type IVA class 2, grade A.
From 2t and upward these shackles comply with ASME B30.26.
Minimum breaking load is 6 times the W.L.L.
Temperature range -40°C up to +200°C.
Full CAD support available upon request.

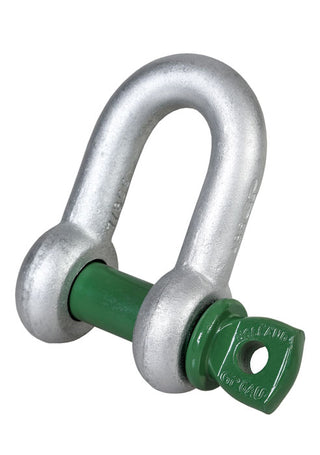

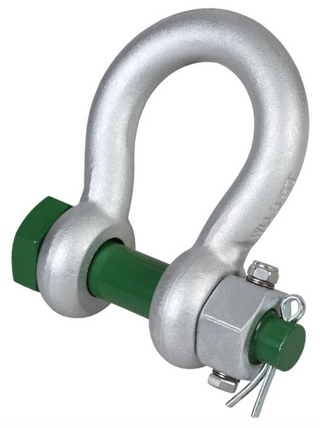

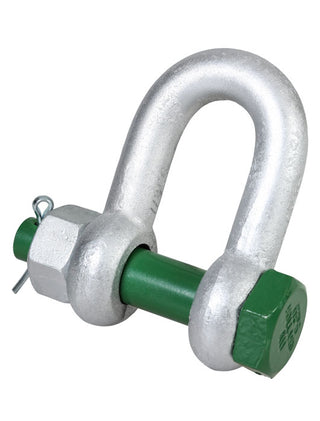

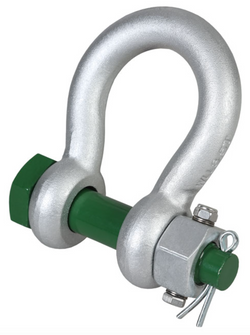

Shackles are used in lifting and static systems as removable links to connect (steel) wire rope, chain and other fittings. Screw pin shackles are used mainly for non-permanent applications. Safety bolt shackles are used for long-term or permanent applications or where the load may slide on the pin causing rotation of the pin. Chain or dee shackles are mainly used on one-leg systems whereas anchor or bow shackles are mainly used on multi-leg systems.
