Green Pin Grade 6 Safety Dee Shackles with Bolt and Safety Nut

Green Pin Grade 6 Bow Shackles with Screw Collar Pin

Green Pin

Green Pin Grade 6 Safety Dee Shackles with Bolt and Safety Nut

Name: Green Pin Grade 6 Safety Dee Shackles with Bolt and Safety Nut
Brand: Green Pin
SKU: 269-5-1
Price: 8.40 GBP
Availability: InStock
Rating: 5.0 (1 reviews)

Green Pin Grade 6 Safety Dee Shackles with Bolt and Safety Nut

SKU: 269-5-1

View more green pin grade 6 standard shackles

Green Pin Grade 6 Safety Dee Shackles with Bolt and Safety Nut

SKU: 269-5-1

Need More?

Require more stock than shown as available, please send us your requirements via email sales@rigginguk.co.uk

Need Help?

If you're unable to locate the specific item you're searching for, please send us your requirements via email sales@rigginguk.co.uk

0% Finance Available

Through PayPal Credit - Find out more

Free UK Delivery Over £500

- View options

Click & Collect from BL9 6EY

- Collect from our warehouse

View full details

Description

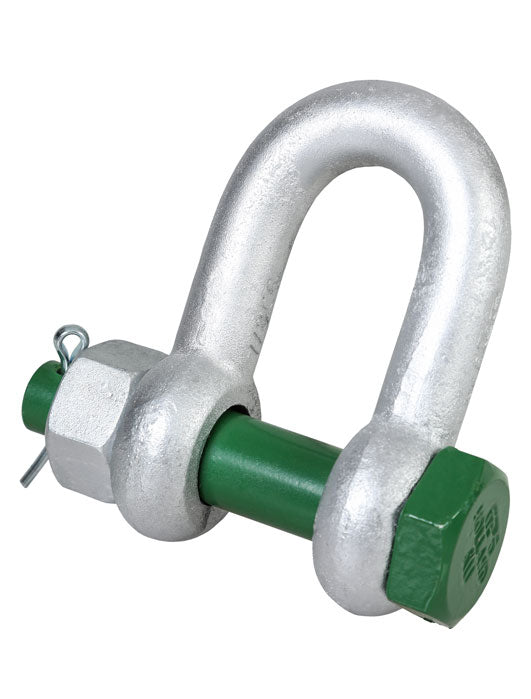

Green Pin Grade 6 Standard Dee Shackles with Bolt and Safety Nut

Green Pin Model G-41523
Grade 6 high tensile steel body and pin, quenched and tempered.
Hot dipped galvanised finish.
Conforms to BS EN 13889 (from 2t to 25t) and meets the performance requirements of US Fed. Spec. RR-C-271 type IVA class 2, grade A.
From 2t and upward these shackles comply with ASME B30.26.
Minimum breaking load is 6 times the W.L.L.
Temperature range -40°C up to +200°C.
Full CAD support available upon request.
Supplied with Declaration of Conformity

Shackles are used in lifting and static systems as removable links to connect (steel) wire rope, chain and other fittings. Screw pin shackles are used mainly for non-permanent applications. Safety bolt shackles are used for long-term or permanent applications or where the load may slide on the pin causing rotation of the pin. Chain or dee shackles are mainly used on one-leg systems whereas anchor or bow shackles are mainly used on multi-leg systems.

Specification

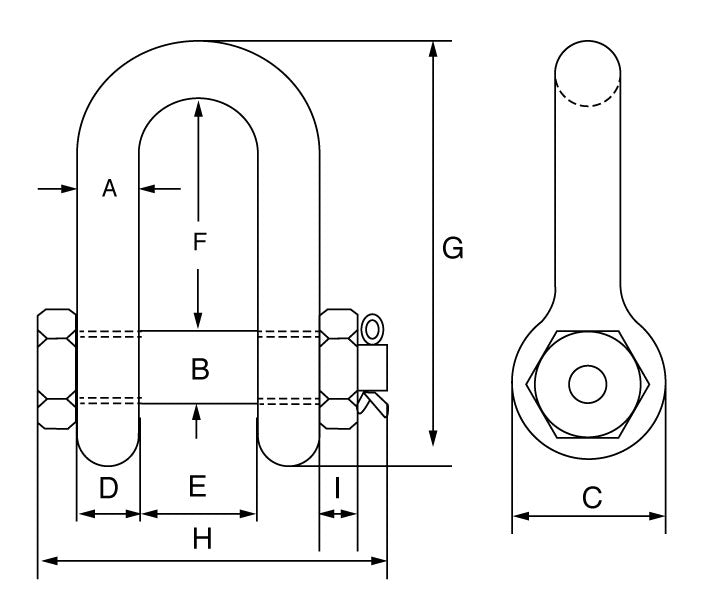

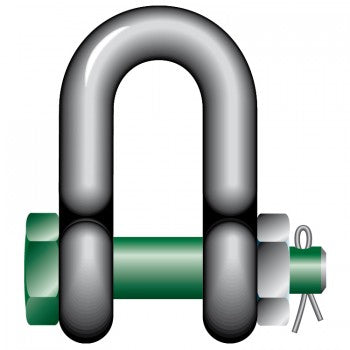

Green Pin Safety DEE Shackles with Bolt and Safety Nut

Downloads

Shackles Product data sheet
