240v Electric Cable Puller Winch - 2500kg Pulling Capacity (with Small Drum as Standard)
The Cable Puller provides the perfect solution to installing long or heavy lengths of cable in difficult locations. It reduces the manpower hours required to meet installation deadlines, and is safer and faster.
- Unlimited length of pull and choice of rope speed
- Compact, lightweight and portable
- 110V or 240V AC model for internal use in buildings and tunnels
- Reverse rotation for controlled release at high loads
- *Small drum supplied as standard, please request large drum
- If not in stock this item can have a lead-time of 1 to 2 weeks.
FIBRE ROPES Fibre ropes of up to 18mm diameter can be used on Cable Puller. The type of fibre rope is important. A good quality, low stretch fibre rope with low abrasion qualities is recommended such as Braid on Braid polyester is recommended. A typical fibre rope for use with the Cable Puller is 10mm to 12mm in diameter.
10mm Pulling Rope MBL 3,250kgs - From 50m to 400m
12mm Pulling Rope MBL 4,700kgs - From 50m to 400m
Accessories Included:

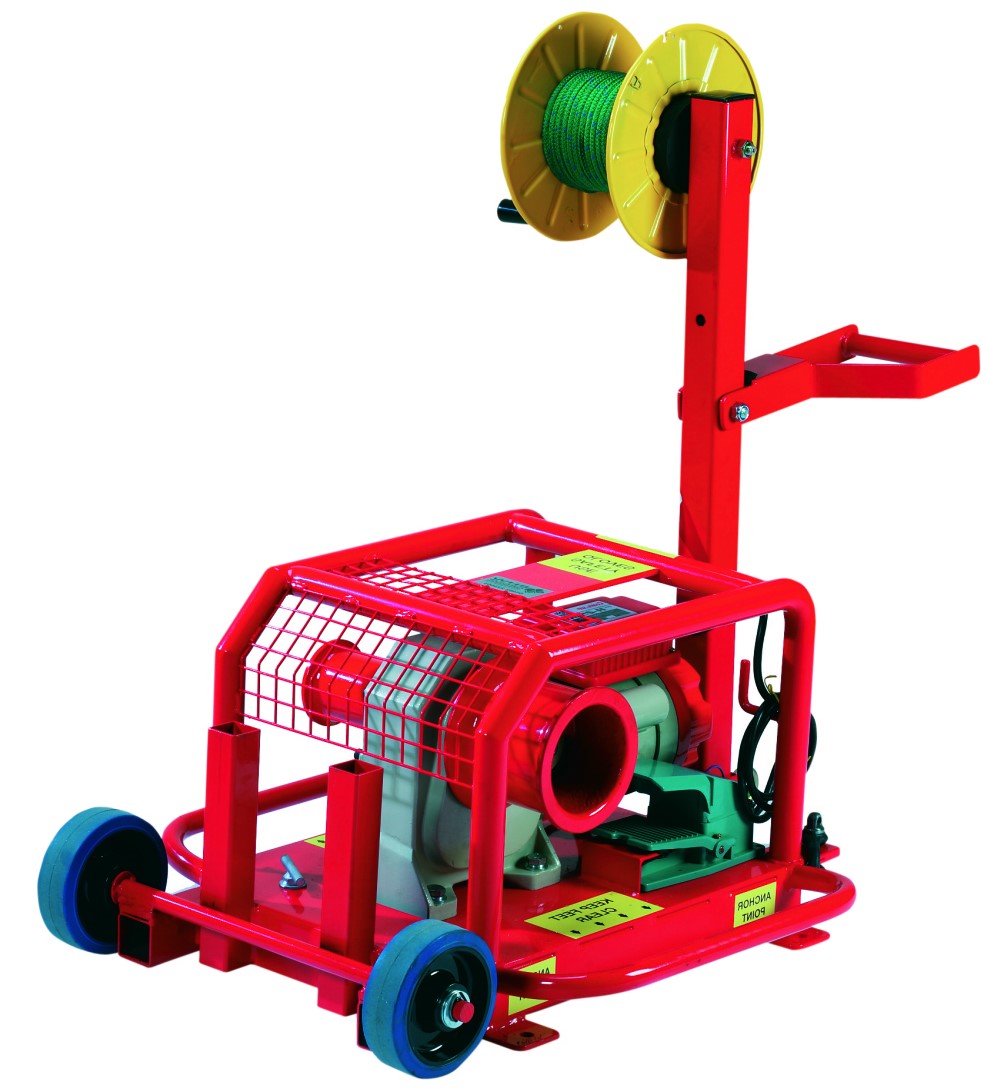

Detachable Rope Storage Drum as shown (larger drum available as an option) Deadman Foot Control with 2m cable 2 x Tie-Down Shackle
CABLE PULLER |
*SMALL DRUM |
LARGE DRUM
|
Cable Pulling Capacity (kg) |
2500 |
1500 |
Rope Speed m/min (approx.) |
2.5 |
4.0 |
Dimensions (mm) |
L: 665 x W: 550 x H: 400 |
L: 665 x W: 550 x H: 400 |
Weight (kg) |
80 |
80 |
Running current: 8amp = 110v : 4amp = 240v
|
|
|
Minimum Power required: 3.5 KVA Generator
|
|
|
