YOKE X-007 Grade 100 Master Link Sub Assemblies to suit 3 & 4 Leg Chain Slings

Name: YOKE X-007 Grade 100 Master Link Sub Assemblies to suit 3 & 4 Leg Chain Slings
Brand: YOKE
SKU: 276-55-1
Price: 43.74 GBP
Availability: InStock

YOKE SKU: 276-55-1

1 1

YOKE X-007 Grade 100 Master Link Sub Assemblies to suit 3 & 4 Leg Chain Slings

YOKE X-007 Grade 100 Welded Master Link Sub Assemblies to suit 3 & 4 Leg Chain Slings Quenched and Tempered Alloy Steel At least 25% greater WLL than traditional G80 products Manufactured... Read More

YOKE SKU: 276-55-1

£43.74

Sale TODAY'S PRICE £43.74

In stock

Tax included. Shipping calculated at checkout.

Product variants

Quantity

Buy from our EU store

View more yoke grade 100 lifting chain fittings

Description

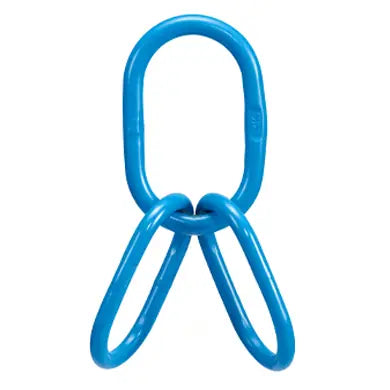

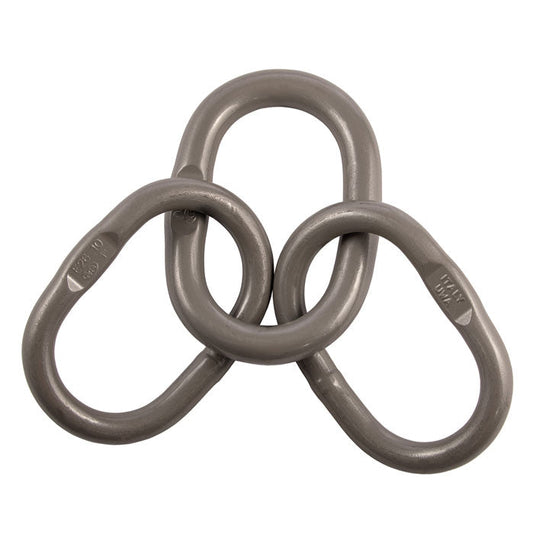

YOKE X-007 Grade 100 Welded Master Link Sub Assemblies to suit 3 & 4 Leg Chain Slings

Quenched and Tempered Alloy Steel
At least 25% greater WLL than traditional G80 products
Manufactured in accordance with ASTM A952/A952M, ASME B30.9, ASME B30.26, EN 1677-4 and OSHA 1910.184
Certified by DGUV GS-OA-15-05
Proof Load tested at 2.5 times the WLL with certification for each batch manufactured
Design Factor 5:1
Fatigue rated to 20,000 cycles at 1.5 times the WLL
Tempering temperature at a minimum of 400°C
Welded Master Link designed for 3-4 legs Chain, Wire Rope and Webbing Slings
Each link is marked with batch number that links to the test certificate with full traceability to raw materials

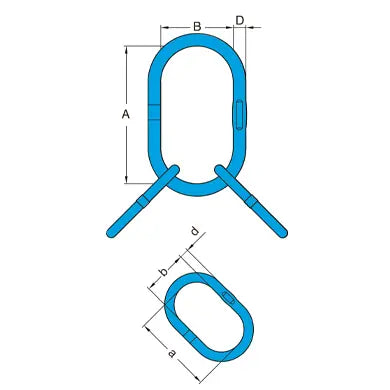

Spec

SKU	For Grade 100 Chain (mm)	Capacity (t)	Proof Load (kN)	Weight (kg)
276-55-1	7, 8	5.3	130	2.4
276-55-2	10	8.9	218	5.2
276-55-3	10	12.9	316	7.1
276-55-4	13	17	417	10
276-55-5	16	23.6	578	12.2
276-55-6	16	28.1	688	19.2
276-55-7	20	38.3	938	26.5
276-55-8	22	45	1103	33.9
