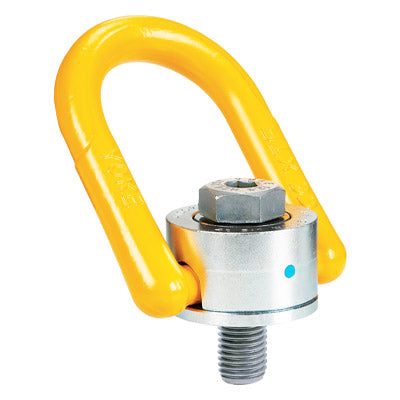

YOKE 8-232 Anchor Point - UNC Thread 16t

Name: YOKE 8-232 Anchor Point - UNC Thread 16t
Brand: YOKE
SKU: 276-5-1
Price: 79.56 GBP
Availability: InStock

YOKE SKU: 276-5-1

1 1

YOKE 8-232 Anchor Point - UNC Thread 16t

YOKE 8-23 Anchor Point - UNC Thread Rotates through 360° and pivot 180°, and simultaneously allows lifting from any direction Manufactured from forged alloy steel, quenched and tempered Tested... Read More

YOKE SKU: 276-5-1

£79.56

Sale TODAY'S PRICE £79.56

In stock

Tax included. Shipping calculated at checkout.

Product variants

Quantity

Buy from our EU store

Description

YOKE 8-23 Anchor Point - UNC Thread

Rotates through 360° and pivot 180°, and simultaneously allows lifting from any direction
Manufactured from forged alloy steel, quenched and tempered
Tested in accordance with EN1677-1
Load rated parts are 100% magnaflux crack detected
Individual forged parts and cap screw are traceable to Test Certification
Bolts are UNC thread
Proof tested to 2.5 times the WLL
Fatigue rated to 20,000 cycles at 1.5 times the WLL
All YOKE Lifting points meet or exceed all the requirements of ASME B30.26
Quick and simple assembly, just a tapped hole is required

Certification

Each unit comes fully certified with a test certificate or an EC Declaration of Conformity stating compliance with the essential health and safety requirements of the Machinery Directive 2006/42/EC, the Supply of Machinery (Safety) Regulations 2008 and Section 6 of the Health and Safety at Work Etc Act 1974. Manufactured and tested in accordance with EN1677-1. All YOKE Lifting points meet or exceed all the requirements of ASME B30.26.

Spec

SKU	Capacity (t)	Bolt Size (inch)	Torque (Nm)	Weight (kg)
276-5-1	0.8	1/2"	100	0.3
276-5-2	1.6	5/8"	150	0.9
276-5-3	2.4	3/4"	250	1
276-5-4	3	7/8"	300	1.95
276-5-5	4	1"	400	2.6
276-5-6	6.25	1 1/4"	500	5
276-5-7	10	1 1/2"	800	9.6
276-5-8	16	2"	2000	11.6
