YOKE

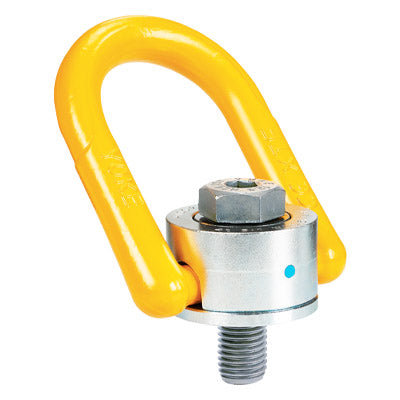

YOKE 8-231 Digital Anchor Point - Metric Thread

YOKE 8-231 Digital Anchor Point - Metric Thread

SKU: 276-4-1

Read More
Regular price £55.20
Regular price RRP Sale price TODAY'S PRICE £55.20

In stock

Tax included. Shipping calculated at checkout.

Need More?

Require more stock than shown as available, please send us your requirements via email sales@rigginguk.co.uk

Need Help?

If you're unable to locate the specific item you're searching for, please send us your requirements via email sales@rigginguk.co.uk

0% Finance Available

Through PayPal Credit - Find out more

Free UK Delivery Over £250
Click & Collect from BL9 6EY
View full details

Description

YOKE 8-231 Digital Anchor Point - Metric Thread

  • Rotates through 360° and pivot 180°, and simultaneously allows lifting from any direction
  • Manufactured from forged alloy steel, quenched and tempered
  • Tested in accordance with EN1677-1
  • Load rated parts are 100% magnaflux crack detected
  • Individual forged parts and cap screw are traceable to Test Certification
  • Bolts are Metric thread (ASME / ANSI B18.3.1M)
  • Proof tested to 2.5 times the WLL
  • Fatigue rated to 20,000 cycles at 1.5 times the WLL
  • All YOKE Lifting points meet or exceed all the requirements of ASME B30.26
  • Quick and simple assembly, just a tapped hole is required

Certification

Each unit comes fully certified with a test certificate or an EC Declaration of Conformity stating compliance with the essential health and safety requirements of the Machinery Directive 2006/42/EC, the Supply of Machinery (Safety) Regulations 2008 and Section 6 of the Health and Safety at Work Etc Act 1974. Manufactured and tested in accordance with EN1677-1. All YOKE Lifting points meet or exceed all the requirements of ASME B30.26

Spec

SKU Capacity (t) Bolt Size (mm) Torque (Nm) Weight (kg)
276-4-1 0.5 M8 30 0.3
276-4-2 0.7 M10 60 0.3
276-4-3 1 M12 100 0.3
276-4-4 1.5 M14 120 0.9
276-4-5 2 M16 150 0.9
276-4-6 3 M20 250 1
276-4-7 5 M24 400 2.6
276-4-8 7.8 M30 500 5
276-4-9 12.5 M36 1000 9.6
276-4-10 15.6 M42 1500 10.9
276-4-11 20 M48 2000 11.6
276-4-12 22 M56 2100 15
276-4-13 22.5 M64 2200 16.3
