YOKE 8-231 Digital Anchor Point Long Bolt - Metric Thread 15.6t

Name: YOKE 8-231 Digital Anchor Point Long Bolt - Metric Thread 15.6t
Brand: YOKE
SKU: 276-4-14
Price: 105.60 GBP
Availability: InStock

YOKE SKU: 276-4-14

1 1

YOKE 8-231 Digital Anchor Point Long Bolt - Metric Thread Rotates through 360° and pivot 180°, and simultaneously allows lifting from any direction Manufactured from forged alloy steel, quenched and... Read More

£105.60

Sale TODAY'S PRICE £105.60

In stock

Tax included. Shipping calculated at checkout.

Product variants

Quantity

Buy from our EU store

Description

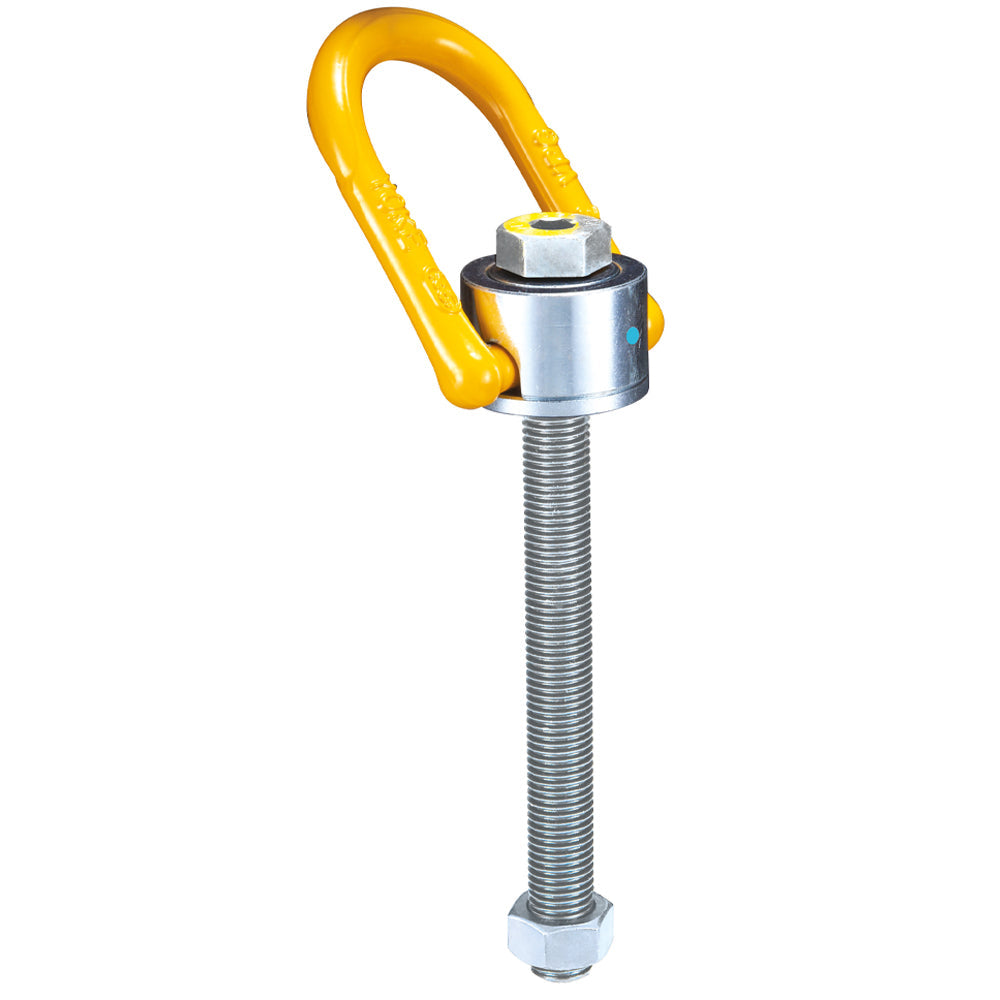

YOKE 8-231 Digital Anchor Point Long Bolt - Metric Thread

Rotates through 360° and pivot 180°, and simultaneously allows lifting from any direction
Manufactured from forged alloy steel, quenched and tempered
Tested in accordance with EN1677-1
Load rated parts are 100% magnaflux crack detected
Individual forged parts and cap screw are traceable to Test Certification
Bolts are Metric thread
Proof tested to 2.5 times the WLL
Fatigue rated to 20,000 cycles at 1.5 times the WLL
All YOKE Lifting points meet or exceed all the requirements of ASME B30.26
Quick and simple assembly, just a tapped hole is required

Certification

Each unit comes fully certified with a test certificate or an EC Declaration of Conformity stating compliance with the essential health and safety requirements of the Machinery Directive 2006/42/EC, the Supply of Machinery (Safety) Regulations 2008 and Section 6 of the Health and Safety at Work Etc Act 1974. Manufactured and tested in accordance with EN1677-1. All YOKE Lifting points meet or exceed all the requirements of ASME B30.26.

Specification

SKU	Capacity (t)	Bolt Size (mm)	Torque (Nm)	Weight (kg)
276-4-14	0.5	M8	30	0.4
276-4-15	0.7	M10	60	0.4
276-4-16	1	M12	100	0.4
276-4-17	n/a	n/a	n/a	n/a
276-4-18	2	M16	150	1
276-4-19	3	M20	250	1.1
276-4-20	5	M24	400	2.7
276-4-21	7.8	M30	500	5.1
276-4-22	12.5	M36	1000	9.7
276-4-23	15.6	M42	1500	10.8
276-4-24	n/a	n/a	n/a	n/a
276-4-25	n/a	n/a	n/a	n/a
276-4-26	n/a	n/a	n/a	n/a
