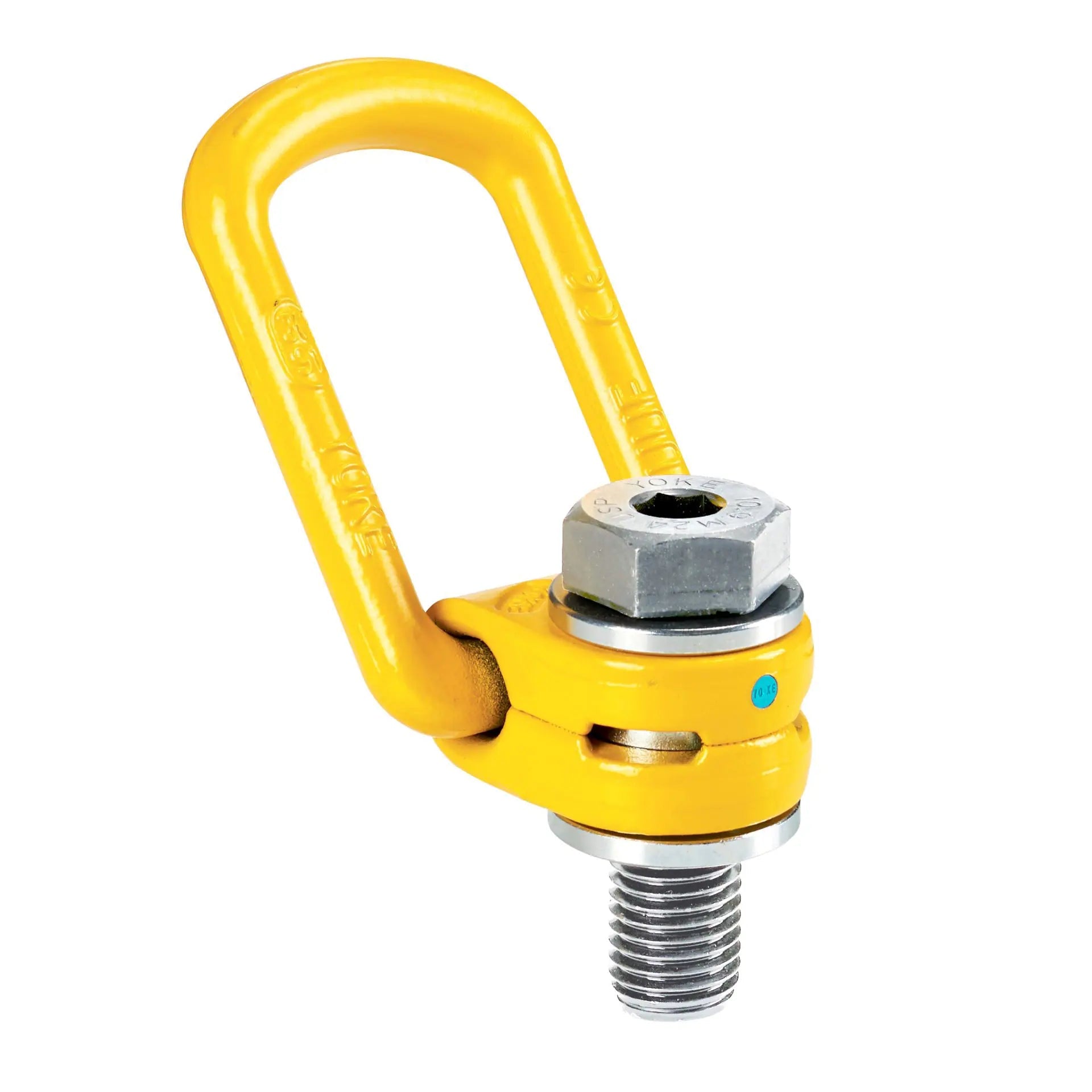

YOKE 8-211 Digital Lifting Point - Metric Thread

• Rotates through 360° and pivots 90°
• Manufactured from alloy steel, quenched and tempered
• Tested in accordance with EN1677-1
• Certified by DGUV GS-OA 15-04
• Load rated parts are 100% magnaflux crack detected
• Individual forged parts and cap screw are traceable to Test Certification
• Bolts are Metric thread
• Proof tested to 2.5 times the WLL
• Fatigue rated to 20,000 cycles at 1.5 times the WLL
• All YOKE Lifting points meet or exceed all the requirements of ASME B30.26
• Quick and simple assembly, just a tapped hole is required

Certification

Each unit comes fully certified with a test certificate or an EC Declaration of Conformity stating compliance with the essential health and safety requirements of the Machinery Directive 2006/42/EC, the Supply of Machinery (Safety) Regulations 2008 and Section 6 of the Health and Safety at Work Etc Act 1974. Manufactured and tested in accordance with EN1677-1. All YOKE Lifting points meet or exceed all the requirements of ASME B30.26.
