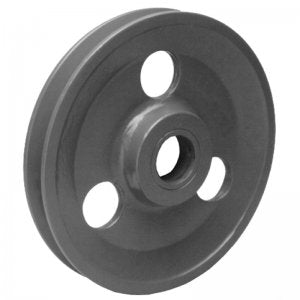

Wire Rope Sheaves made of Cast Iron with Plain Bore (Model No. 169)

Name: Wire Rope Sheaves made of Cast Iron with Plain Bore (Model No. 169)
Brand: ORPTECH
Price: 57.12 GBP
Availability: OutOfStock

ORPTECH SKU: 182-169-120

1 2

Wire Rope Sheaves made of Cast Iron with Plain Bore (Model No. 169)

Wire Rope Sheaves made of Cast Iron (Model No. 169) Turned groove, compatible with fixed roller No. 186 and wire rope guide pulleys No. 191 and No. 192. Outside external diameter... Read More

ORPTECH SKU: 182-169-120

£97.66

Sale TODAY'S PRICE £97.66

Out of stock (0)

Tax included. Shipping calculated at checkout.

Product variants

Quantity

Buy from our EU store

View more orptech pulleys sheaves

Description

Wire Rope Sheaves made of Cast Iron (Model No. 169)

Turned groove, compatible with fixed roller No. 186 and wire rope guide pulleys No. 191 and No. 192.

Outside external diameter Ø 60 - 325mm: with self-lubricating bearing with grease chamber.

Outside external diameter Ø 375 - 470mm: with bronze bearing with grease lubrication pockets.

Range of pulley capacity from 220kg up to 10,000kg

Range of pulley diameter from 60mm up to 470mm

Please note, these products have a lead-time of around 3 to 4 weeks from order date, please email your enquiry to sales@rigginguk.co.uk

Specification

SKU		182-169-60	182-169-90	182-169-120	182-169-150	182-169-190	182-169-235	182-169-280	182-169-325	182-169-375	182-169-470
Sheave External Ø	mm	60	90	120	150	190	235	280	325	375	470
Groove BaseØ	mm	48	72	100	125	160	200	240	280	320	400
Groove Radius	mm	1.5	2	2.5	3	4	5	6	7	8	10
Groove Depth	mm	6	9	10	12	15	17	20	22	27	35
Rim Width	mm	13	15	18	22	27	32	36	41	48	58
Bore for Bolt	mm	8	14	14	22	32	40	50	60	70	70
Hub Length	mm	24	32	35	40	42	50	62	70	85	90
Hub Ø	mm	22	32	35	46	62	78	92	108	120	140
Rope Ø Max.	mm	3	4	5	6	8	10	12	14	16	20
Load Capacity (in kg.	kg	220	300	500	1000	1500	2000	3000	4000	6400	10000
Weight (in kg) approx.	kg	0.3	0.52	0.85	2.6	2.6	4.5	6.8	10.8	16.5	34.7
