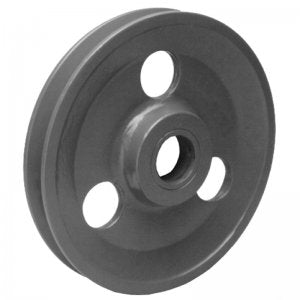

Wire Rope Sheaves made of Cast Iron (Model No. 169)
Turned groove, compatible with fixed roller No. 186 and wire rope guide pulleys No. 191 and No. 192.
Outside external diameter Ø 60 - 325mm: with self-lubricating bearing with grease chamber.
Outside external diameter Ø 375 - 470mm: with bronze bearing with grease lubrication pockets.
Range of pulley capacity from 220kg up to 10,000kg
Range of pulley diameter from 60mm up to 470mm
Please note, these products have a lead-time of around 3 to 4 weeks from order date, please email your enquiry to sales@rigginguk.co.uk
| SKU | 182-169-60 | 182-169-90 | 182-169-120 | 182-169-150 | 182-169-190 | 182-169-235 | 182-169-280 | 182-169-325 | 182-169-375 | 182-169-470 | |
| Sheave External Ø | mm | 60 | 90 | 120 | 150 | 190 | 235 | 280 | 325 | 375 | 470 |
| Groove BaseØ | mm | 48 | 72 | 100 | 125 | 160 | 200 | 240 | 280 | 320 | 400 |
| Groove Radius | mm | 1.5 | 2 | 2.5 | 3 | 4 | 5 | 6 | 7 | 8 | 10 |
| Groove Depth | mm | 6 | 9 | 10 | 12 | 15 | 17 | 20 | 22 | 27 | 35 |
| Rim Width | mm | 13 | 15 | 18 | 22 | 27 | 32 | 36 | 41 | 48 | 58 |
| Bore for Bolt | mm | 8 | 14 | 14 | 22 | 32 | 40 | 50 | 60 | 70 | 70 |
| Hub Length | mm | 24 | 32 | 35 | 40 | 42 | 50 | 62 | 70 | 85 | 90 |
| Hub Ø | mm | 22 | 32 | 35 | 46 | 62 | 78 | 92 | 108 | 120 | 140 |
| Rope Ø Max. | mm | 3 | 4 | 5 | 6 | 8 | 10 | 12 | 14 | 16 | 20 |
| Load Capacity (in kg. | kg | 220 | 300 | 500 | 1000 | 1500 | 2000 | 3000 | 4000 | 6400 | 10000 |
| Weight (in kg) approx. | kg | 0.3 | 0.52 | 0.85 | 2.6 | 2.6 | 4.5 | 6.8 | 10.8 | 16.5 | 34.7 |
All dimensions in mm.
