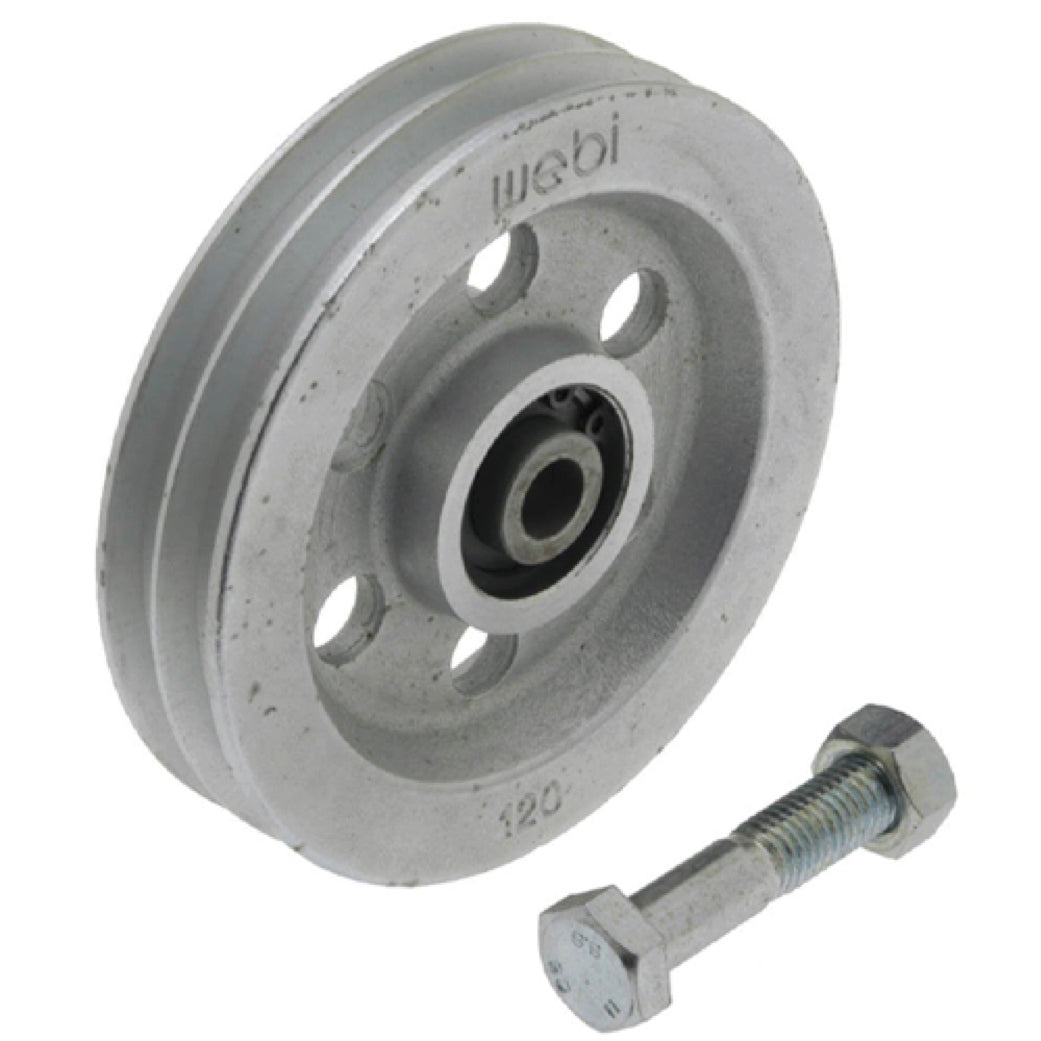

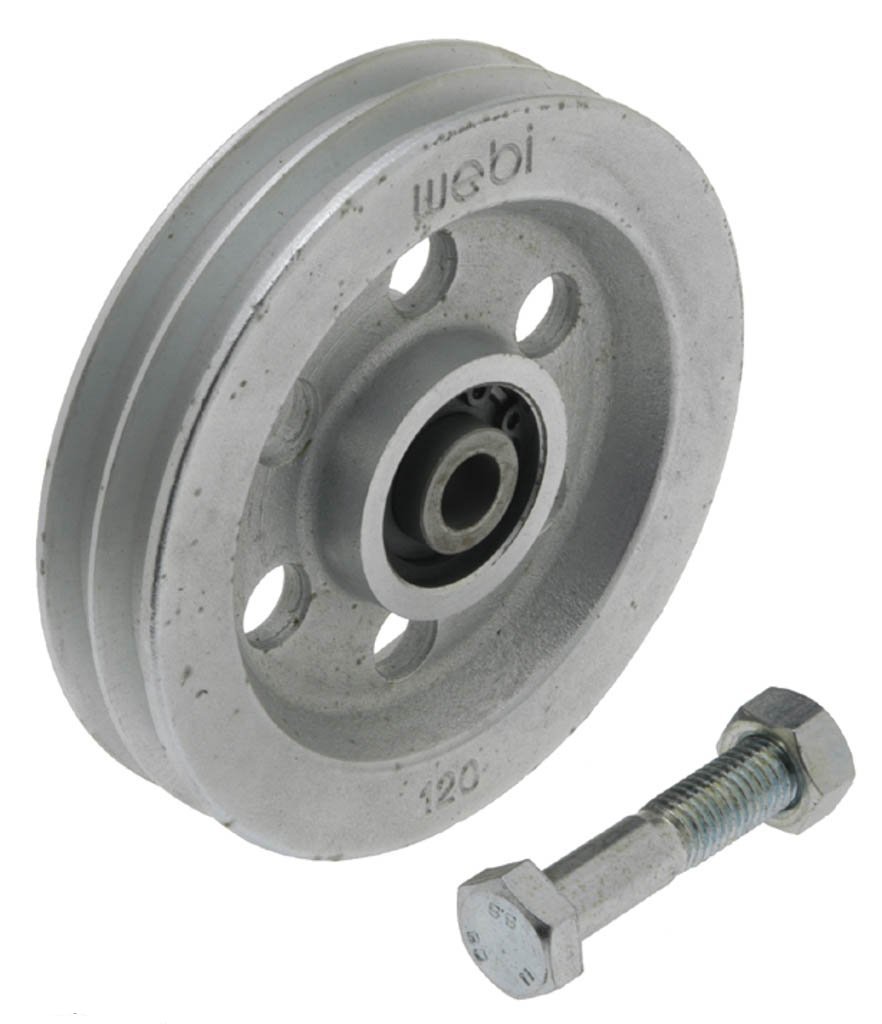

WEBI Pulley Type ETT-74D - Galvanised Cast Iron Double Groove Pulley

£87.67

SKU :155-5-1

Capacity
Diameter

WEBI Pulley Type ETT-74D -Galvanised Cast Iron Double Groove Pulley (ETTER) Ref: 155-5



  • WEBI Pulley / Sheave with double groove complete with bearing and fixing bolt Material galvanised cast iron
  • Complete with bearing and fixing bolt
  • Material finish - galvanised cast iron
  • Capacities from 300 kg to 800 kg
  • To suit 5 mm - 6.5 mm wire rope (see specification PDF for full details)
  • For use with manual and powered winches (any applications where rope needs to be diverted)
  • SWISS MADE "ETTER"
  • Four model types available from stock

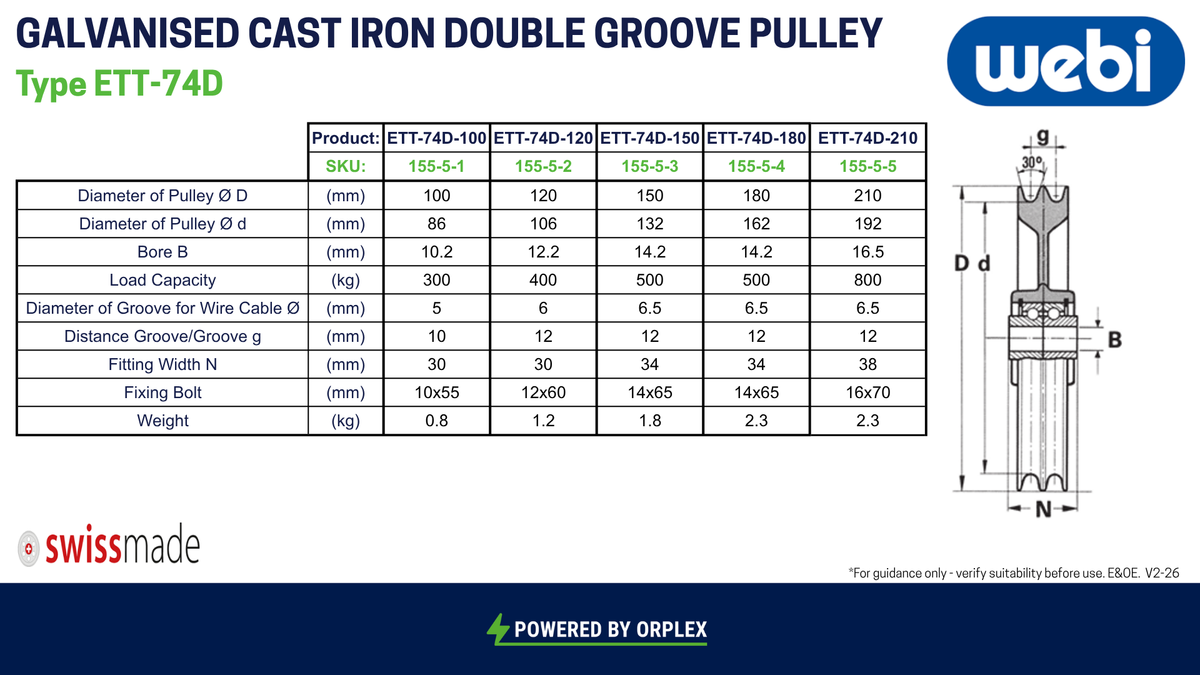

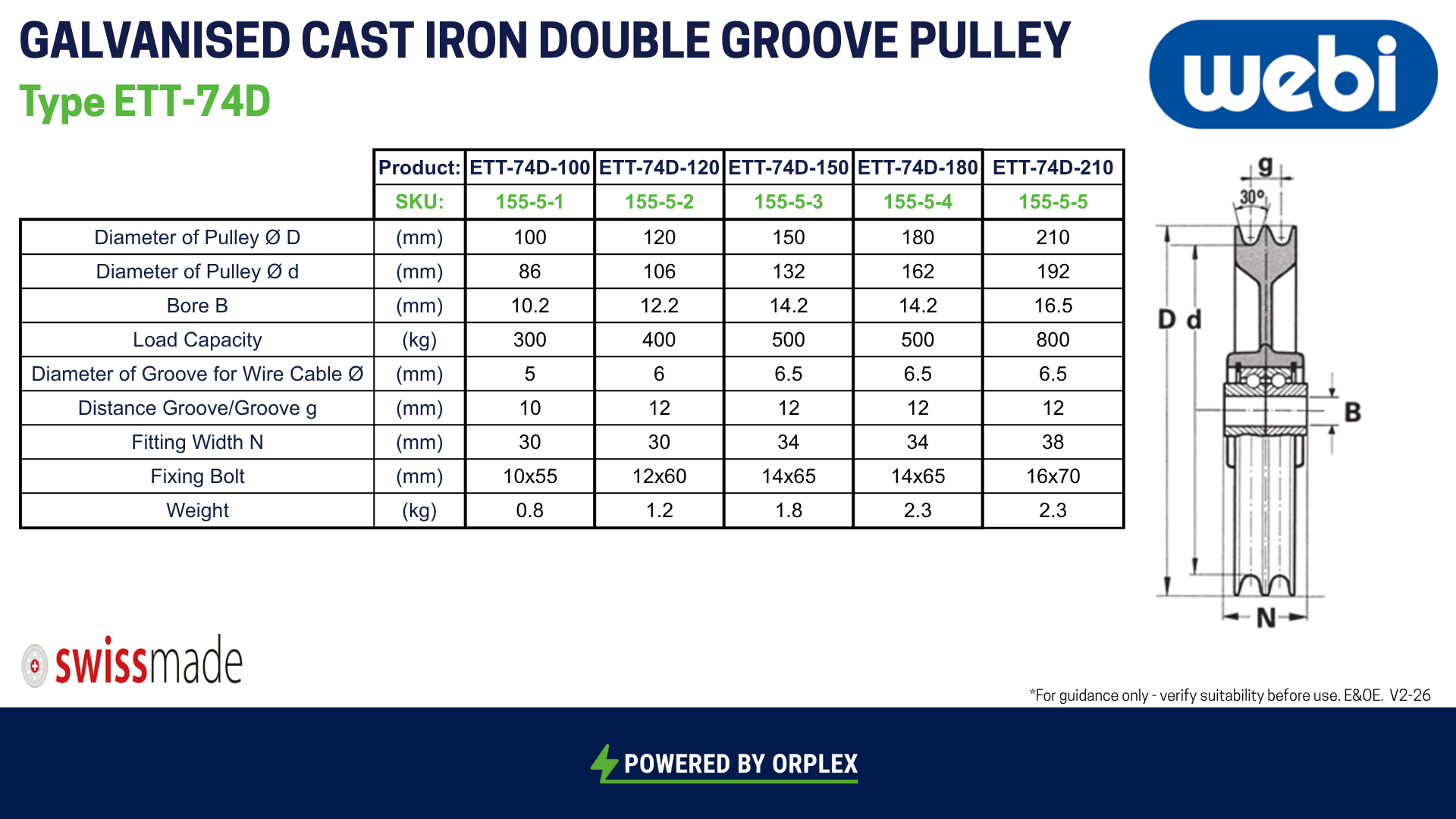

Spec

Model Capacity Pulley Diameter Rope Diameter
155-5-1 300 kg 100 mm 5 mm
155-5-2 400 kg 120 mm 6 mm
155-5-3 500 kg 180 mm 6.5 mm
155-5-4 800 kg 210 mm 6.5 mm



Downloads

PulleyPulley Cat 2018

PulleyEtter 74D Pulley Data
