WEBI Pulley Type ETT-198 - Steel or Galvanised Cast Iron Pulley with Rotating Hook (ETTER) Ref: 155-20

WEBI Pulley Type ETT-198 - Steel or Galvanised Cast Iron Pulley with Rotating Hook (ETTER) Ref: 155-20

Downloads:

Pulley Cat 2018

Etter 198 Pulley Data Sheet

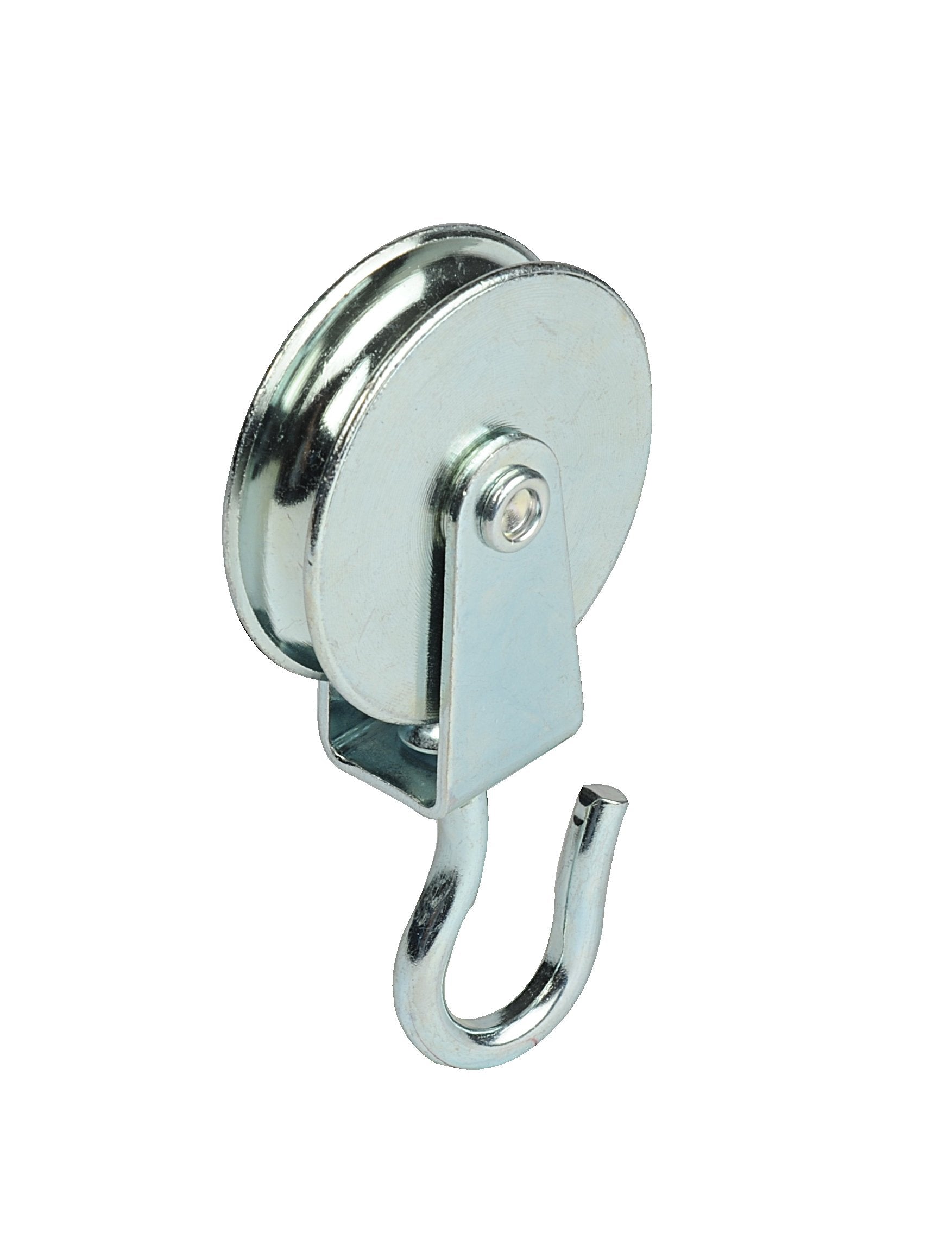

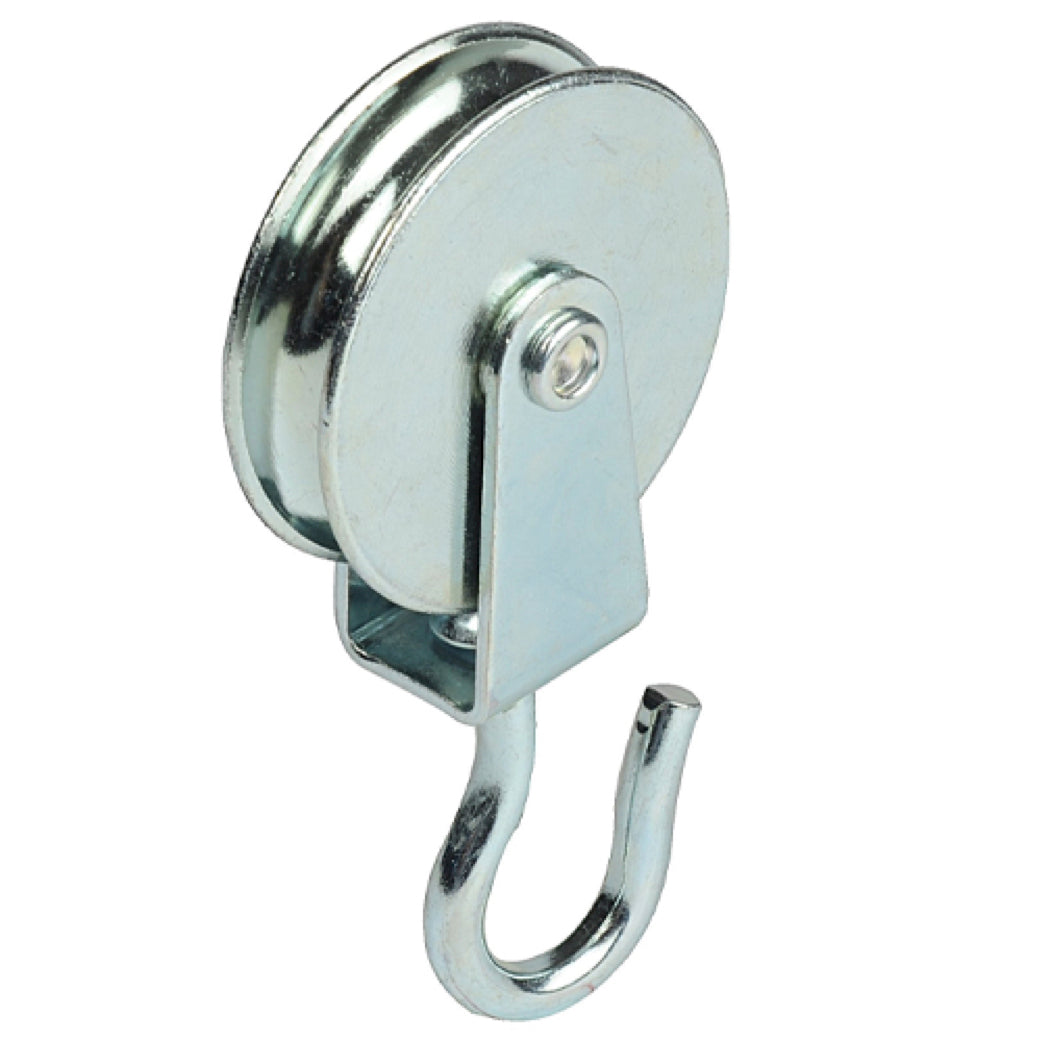

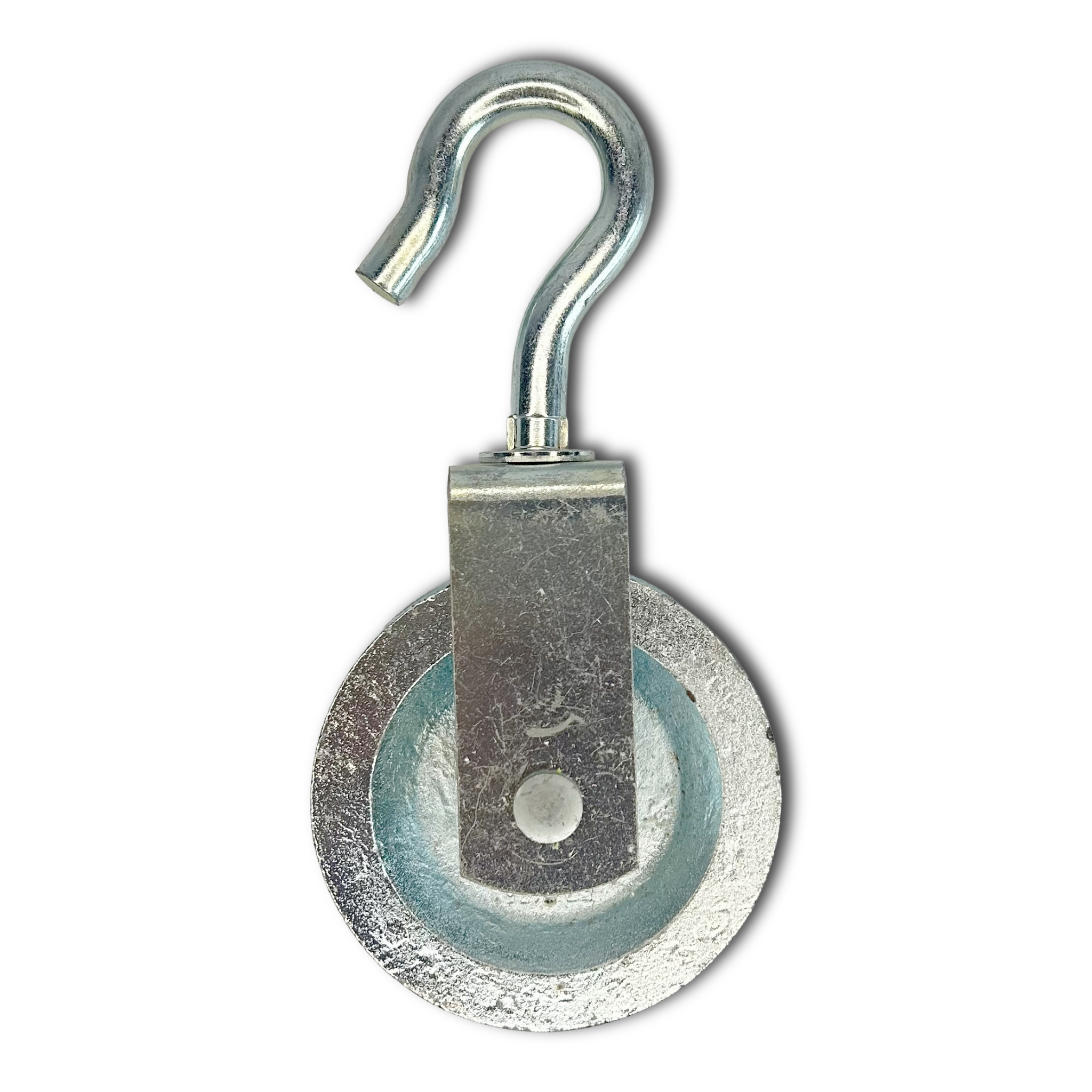

• WEBI steel or galvanised cast iron single pulley / sheave with rotating hook
• Plain bearing
• Material finish - steel for sizes 30, 40, 50 and 60, galvanised cast iron for sizes 80 and 100
• Capacities from 15 kg through to 70 kg
• To suit 5 mm through to 16 mm rope (see specification PDF for full details)
• For use with hemp and synthetic fibre ropes
• SWISS MANUFACTURED

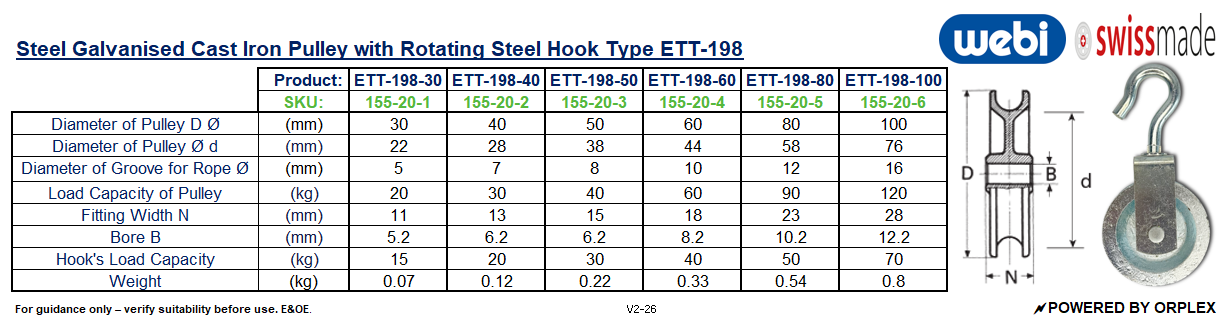

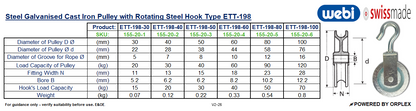

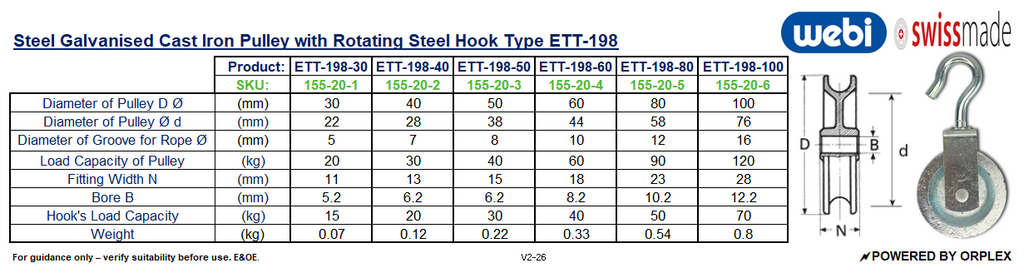

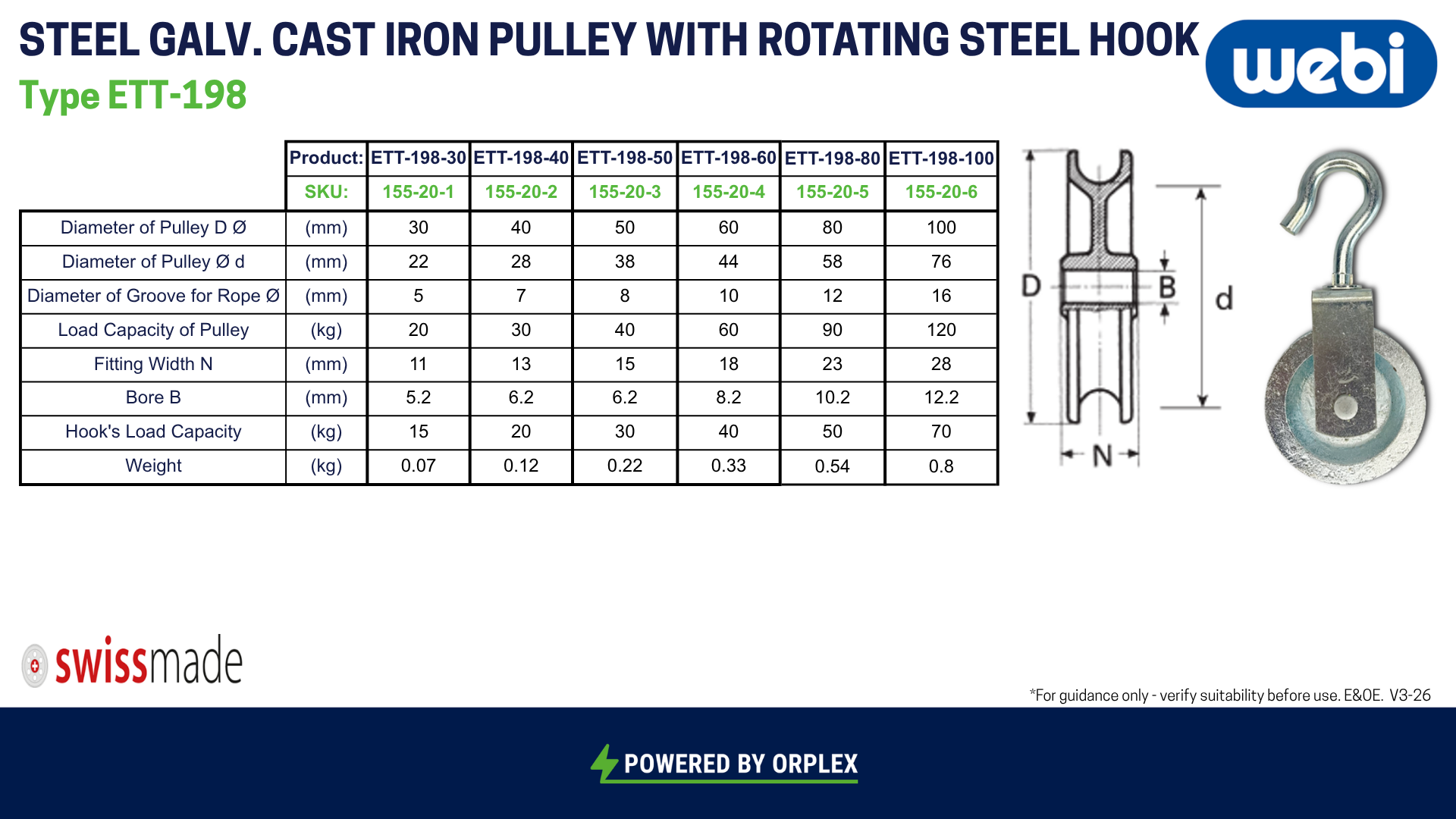

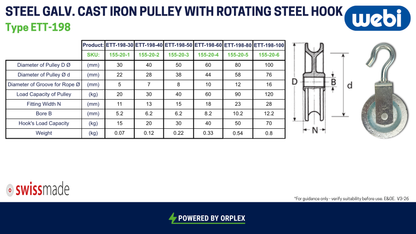

• Model	Capacity	Pulley Diameter	Rope Diameter
  155.20.1	15 kg	30 mm	5 mm
  155.20.2	20 kg	40 mm	7 mm
  155.20.3	30 kg	50 mm	8 mm
  155.20.4	40 kg	60 mm	10 mm
  155.20.5	50 kg	80 mm	12 mm
  155.20.6	70 kg	100 mm	16 mm
