Description
Description

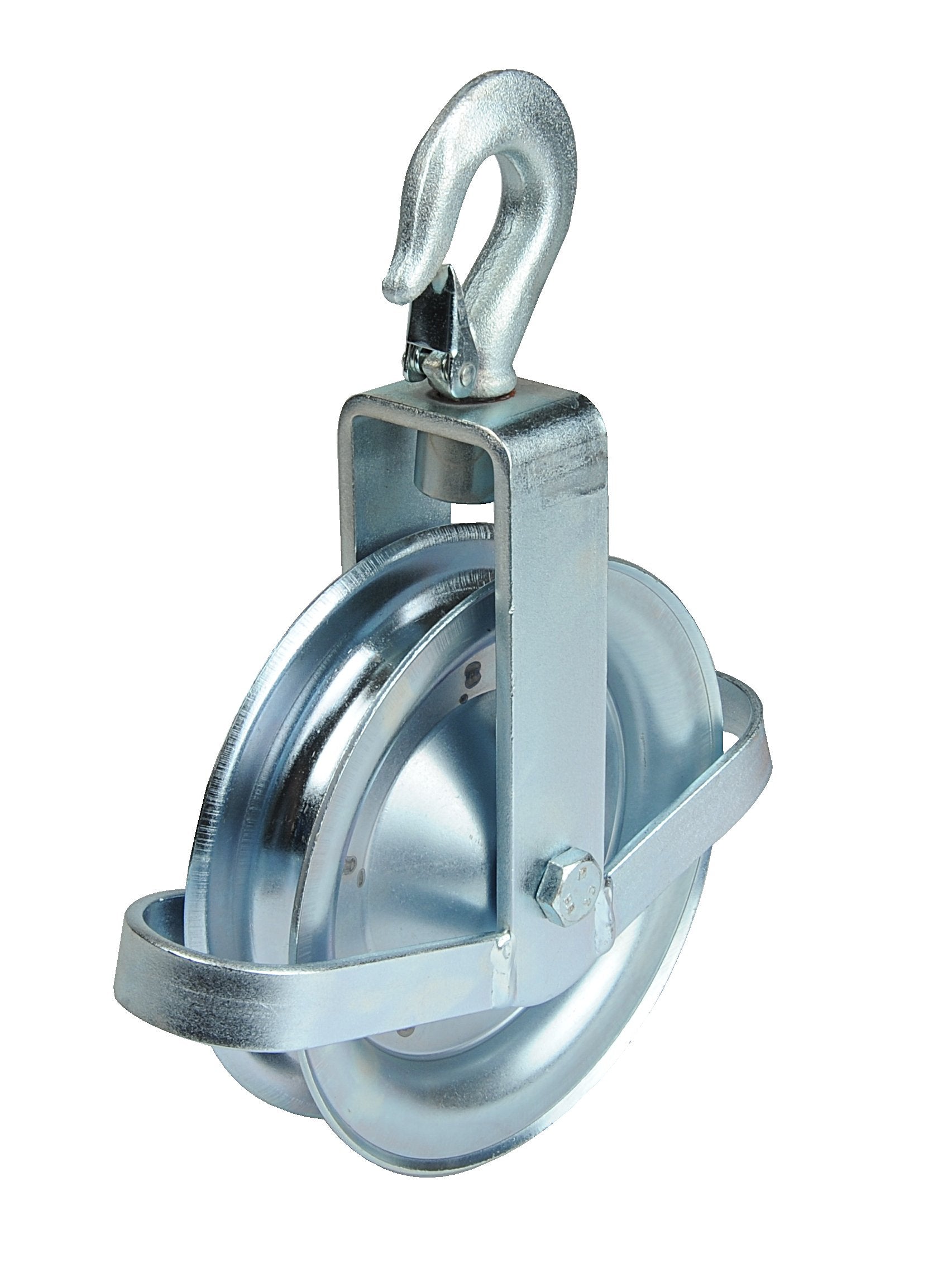

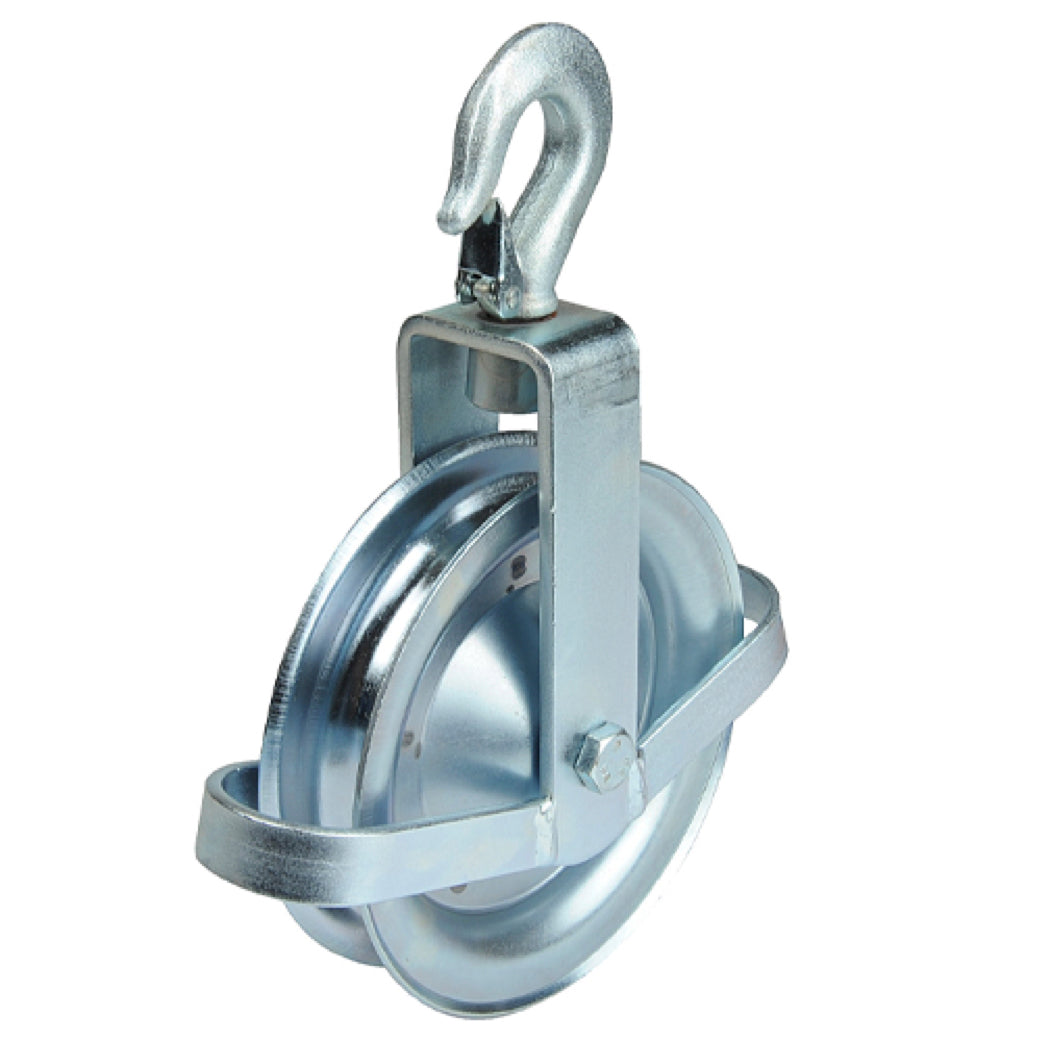

WEBI Pulley Type ETT-201 - Construction Site Pulley with Rotating Steel Hook (ETTER)
- WEBI steel pulley / sheave with rotating hook for use on a construction site for moving materials only.
- Plain bearing, with self-lubricating polyamide bearing bush
- Material finish steel pulley with galvanised steel housing, steel hook with security spring
- Hook load capacities from 200 kg through to 250 kg (manual operation only)
- Width of groove on pulley to suit 25 mm through to 32 mm rope (see specification PDF for full details)
- For use with hemp and synthetic fibre ropes
- SWISS MANUFACTURED
Not to be used for personal winching.

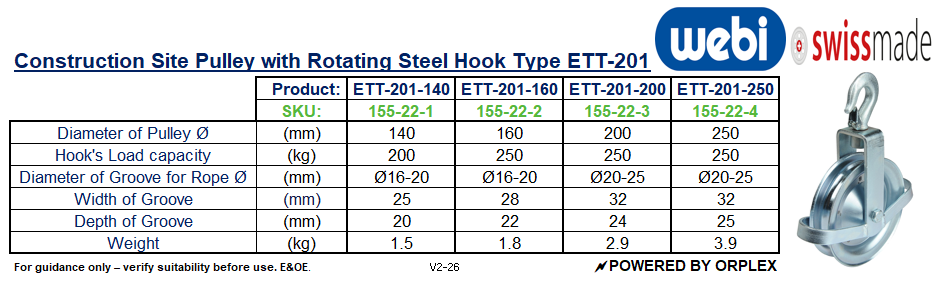

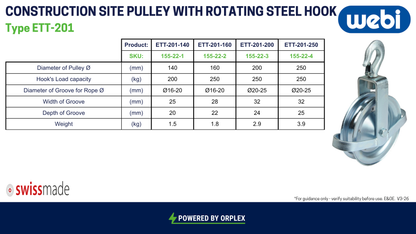

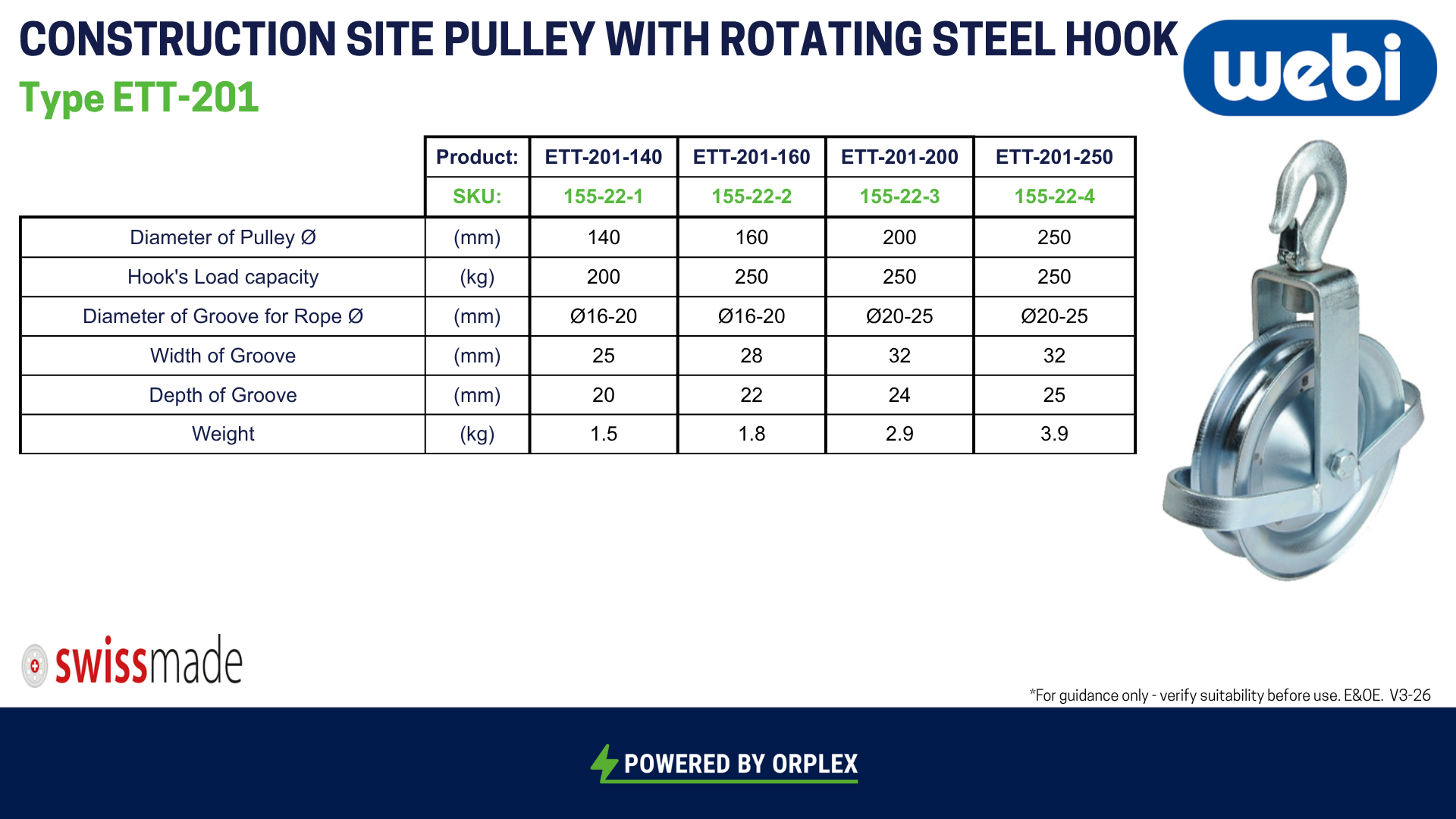

Spec
| Model | Capacity | Pulley Diameter | Rope Diameter |
| 155-22-1 | 200 kg | 140 mm | 25 mm |
| 155-22-2 | 250 kg | 160 mm | 28 mm |
| 155-22-3 | 250 kg | 200 mm | 32 mm |
| 155-22-4 | 250 kg | 250 mm | 32 mm |
