RUD VWBG Load ring, metric thread Ref: 264-12

by RUD

SKU :264-12-2

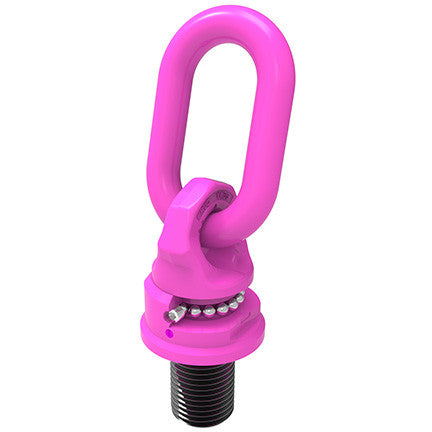

RUD VWBG Load Ring, metric thread Ref: 264-12

  • For all loads which have to be flipped and turned-over
  • Rotating 360°, pivoting 230°. Can be turned under load
  • Optical markings for easy determination for withdraw from service
  • Ball bearing

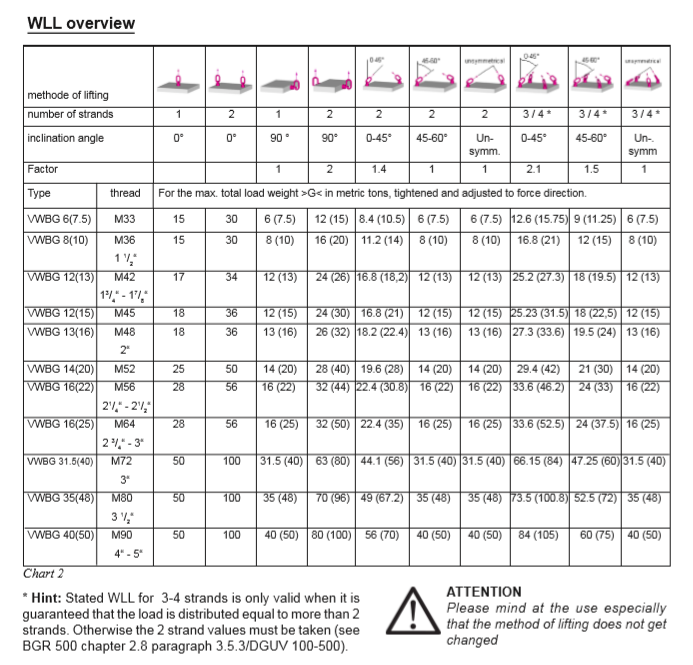

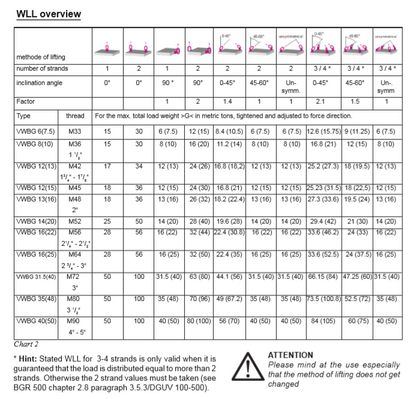

  • WWL from 6.0t to 50.0t
  • Safety Factor 4
  • Can also be supplied with longer thread lengths
  • Simple assembly, just a tapped hole is required
